Specifications
Brand Name :
SUNTEX
Model Number :
GF430C-AL114-6002
Place of Origin :
China
MOQ :
500 meter
Price :
FOB Shanghai 2.3-5.6 $/sqm
Payment Terms :
T/T, L/C, D/P, Western Union
Supply Ability :
500000 meter per month
Delivery Time :
5-15 working days
Packaging Details :
Each roll in the carton, several cartons on the pallets
Weight :
470 g/sqm
Thickness :
0.4 mm
Color :
Silver Grey
Yarn Tape :
C-glass
Weave Tape :
Satin Weave
Width :
1m/1.3m/1.5m/1.52m/1.55m
Coating :
Aluminum foil
Standing Temperature :
From -50℃ to 550℃
Description

Introduction

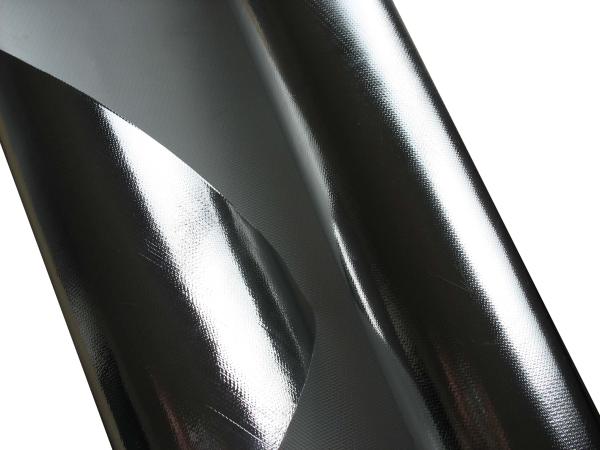

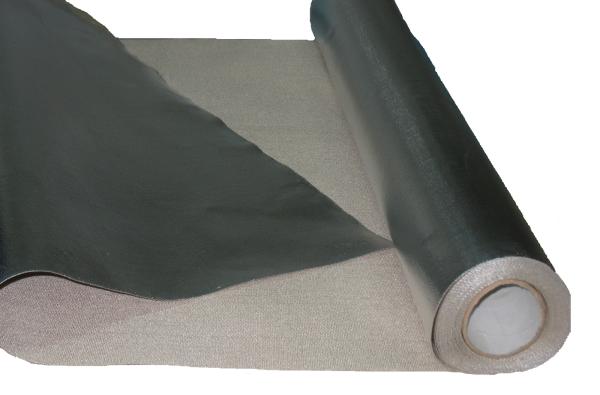

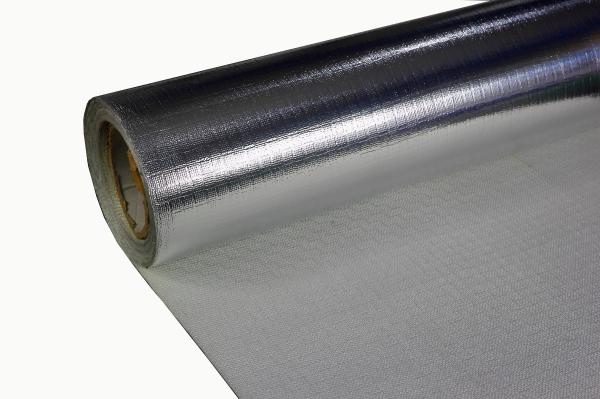

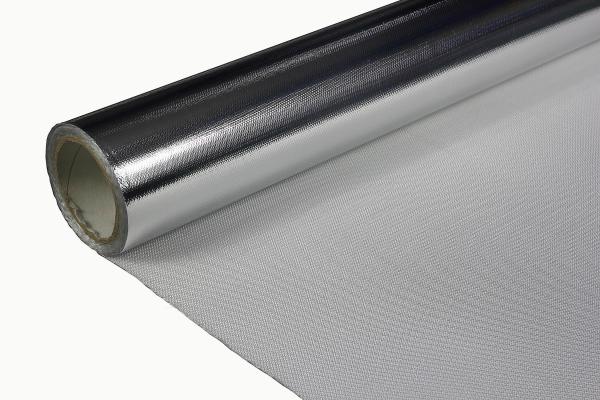

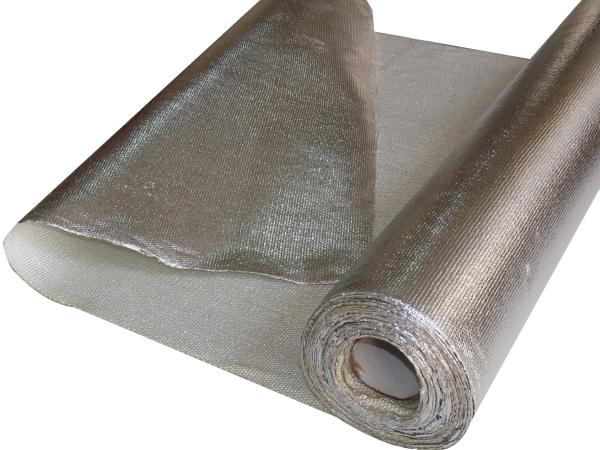

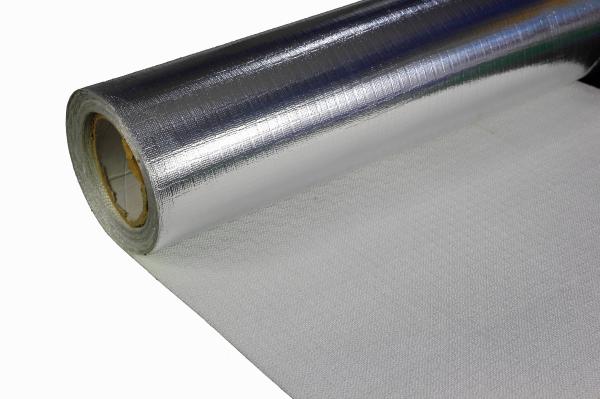

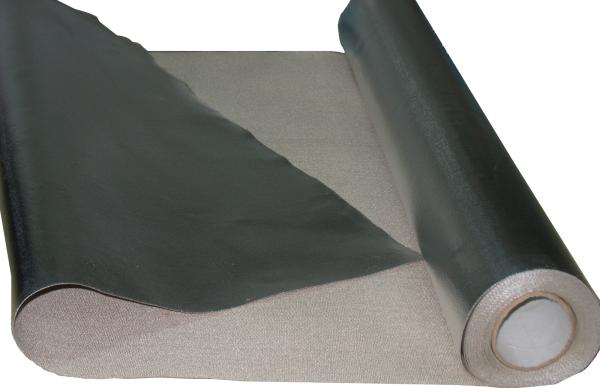

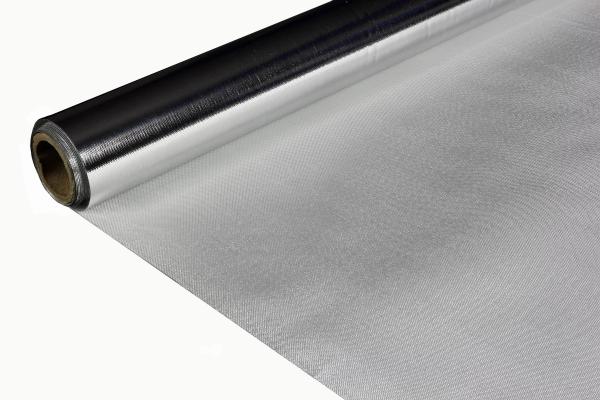

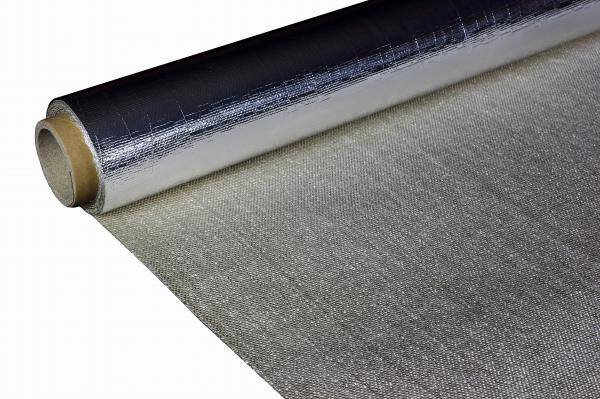

Aluminum foil/film laminated fiberglass fabrics

The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation protects personnel or equipments by reflecting radiant heat. Suntex uses the high temperature adhesive to ensure the maximum working temperature up to 150 0C.

-One side or both sides aluminum foil/film laminated available.

-Thickness of aluminum foils available from 0.0007mm to 0.005 mm

-Width of fabrics available from 1000mm to 1520mm.

Main applications:

-Heat-retardant curtains or screens

-Thermal insulation covers, mattress and

pads

-Welding/fire protection

-Safety cloth and apron

-Other fire and smoke control systems

Advantages

--Easy to be cut, sewn and fabricated.

--High temperature resistance.Up to 550 C

--Asbestos free, halogen free.

--Easy to be cleaned.

--Minimized the airborne dust fibers, reduce the itch to skin

BASE FABRIC Base fabric style No. GF430C
(Metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 33 1*4 ECG 150 1/4
Weft EC9 33 1*4 ECG 150 1/4
Construction
Warp 18 ends /cm 48 ± 3 ends/inch
Weft 12.6 picks /cm 32 ± 3 picks/inch
Weight 430 ± 20 g/m2 12.6 ± 0.58 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.02 mm 0.0145 ± 0.0008 inch ASTM D1777-96

COATED FABRIC Coating style No. AL114-6002
Coating Aluminum foil (18 microns) laminated ,one side
Weight 470 ± 20 g/m2 13.8± 0.59 oz/yd2 ASTM D3776-96
Thickness 0.39 ± 0.03 mm 0.04 ± 0.0012 inch ASTM D1777-96
Color Silver
Flame resistance Non-combustible
Temp resistance

Glass fabric up to 5500C (10000F)

Aluminum foil up to 1500C (3000F)

Aluminum Foil Fiberglass ClothAluminum Foil Fiberglass ClothAluminum Foil Fiberglass ClothAluminum Foil Fiberglass Cloth

Related Style

Style No. Weight Thickness
(g/m2) Oz/yd) (mm) (inch)
GF200-AL114--6001 250 7.3 0.21 0.08
GF430-AL114--6002 470 13.8 0.42 0.016
GF580-AL122--6005 630 18.5 0.75 0.03
TGF1000-AL118--6007 1050 31 1.5 0.059

Aluminum Foil Fiberglass ClothAluminum Foil Fiberglass ClothAluminum Foil Fiberglass ClothAluminum Foil Fiberglass ClothAluminum Foil Fiberglass ClothAluminum Foil Fiberglass ClothAluminum Foil Fiberglass ClothAluminum Foil Fiberglass ClothAluminum Foil Fiberglass ClothAluminum Foil Fiberglass ClothAluminum Foil Fiberglass ClothAluminum Foil Fiberglass Cloth

1. Q: Are you a factory or trading company?

A: We are a factory.

2. Q:Why do you choose us?

A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.

3. Q:What is your delivery time?

A:Generally we will within 30 days of delivery to you

4. Q:Can you product the customized goods?

A:Surely, we can be customized according to your demanding.

5. Q:What kinds of payment you accept?

A:We accept T/T, L/C ,D/P or other.

6. Q:Do you have other production?

A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass

fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric,

Aluminized aramid fabric . We are looking forward to your enquiry.
