Specifications
Brand Name :
SUNTEX
Model Number :
GF880P-SI254-1047
Certification :
M0
Place of Origin :
China
MOQ :
500 meter
Price :
FOB Shanghai 2.3-7.6 $/sqm
Payment Terms :
T/T, L/C, D/P, Western Union
Supply Ability :
500000 meter per month
Delivery Time :
5-15 working days
Packaging Details :
Each roll in the carton, several cartons on the pallets
Weight :
1120 g/sqm
Thickness :
0.95 mm
Color :
Red
Yarn Tape :
E-glass
Weave Tape :
Satin Weave
Width :
1m/1.3m/1.5m/1.52m/1.55m
Coating :
Silicon rubber
Standing Temperature :
From -50℃ to 550℃
Description

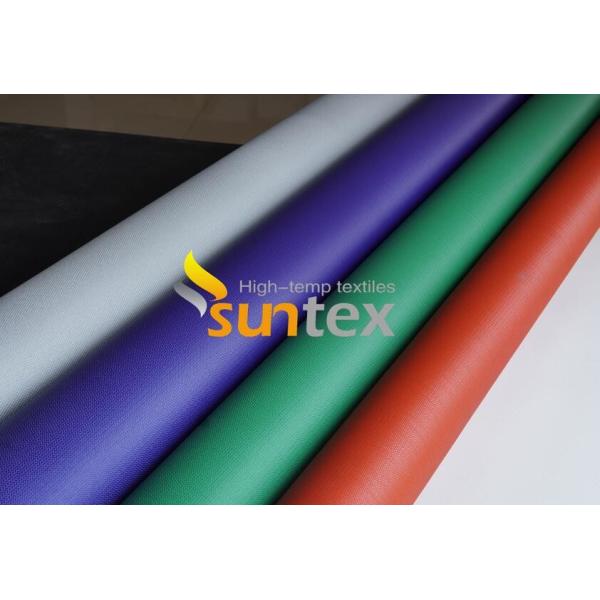

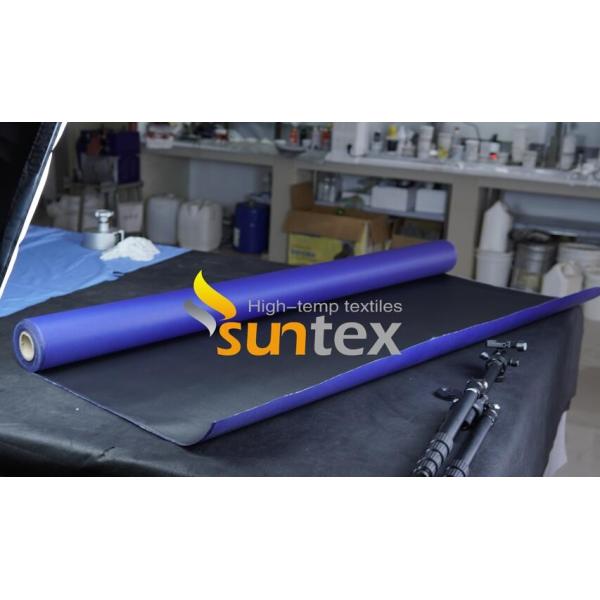

Silicone coated fire-resistant fiberglass cloth from Suntex offers good resistance to extreme temperatures, being able to operate normally from -50°C to +250°C. It also has excellent weatherproof, water repellent, good chemical resistance to acids and lye, good mechanical properties for make-up.

Suntex provides one-sided/double-sided silicone coated fire-resistant fiberglass cloth with many varieties of coating weight, colors and widths for difference applications.

GF880P-SI254-1047 is a medium weight woven fiberglass fabric with a specially formulated, flame retardant silicone rubber coating which provides greater life and improved resistance to abrasion, flexing, tear and puncture.

GF880P-SI254-1047 is designed for heavy duty removable insulation pads, flange and valve covers, welding curtains, equipment covers and compensators.

Main applications

-Insulation jackets, mattress and pad

-Fabric expansion joints

-Fabric ductwork connector

-Fire doors & Fire curtains

-Welding/fire blankets

-Other fire control systems

BASE FABRIC Base fabric style No. GF880P
(Metric) (English) Test methods
Weave 8H Satin 8H Satin
Yarn
Warp EC9 136 1*2 ECG 37 1/2
Weft EC9 136 1*2 ECG 37 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 2 ends/inch ASTM D 3775-96
Weft 14 ± 1 picks/cm 33 ± 2 picks/inch ASTM D 3775-96
Weight 880 ± 45 g/m2 26 ± 1.3 oz/yd2 ASTM D3776-96
Thickness 0.76 ± 0.06 mm 0.03 ± 0.002 inch ASTM D1777-96
COATED FABRIC Coating style No. SI254-1047
Coating Silicone rubber coated both sides
Weight 1120 ± 50 g/m2 32.9 ± 1.4 oz/yd2 ASTM D3776-96
Thickness 0.95 ± 0.05 mm 0.37 ±0.002 inch ASTM D1777-96
Color RED
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C

Silicone rubber coating up to 2600C

Heat resistant material silicone rubber coated fiberglass fabrics for flexible expansion joint

Style No. Weight Thickness color Coating
(g/m2) Oz/yd) (mm) (inch)
GF200T-SI220-1003 260 7.6 0.23 0.09 White Double side
GF430P-SI233-1015 560 16.5 0.42 0.0165 Silver Grey Double side
GF430P-SI244-1017 590 17 0.45 0.0177 Red Double side
GF430P-SI261-1020 730 21.5 0.53 0.02 Green Double side
GF66OP-SI263-1033 960 28 0.72 0.0283 Silver Grey Double side
GF660P-SI165-1023 960 28 0.72 0.0283 Black Single side
GF880-SI244-1026 1080 32 0.95 0.374 Red Double side
GF880P-SI253-1027 1120 33 1 0.039 Silver Grey Double side

Heat resistant material silicone rubber coated fiberglass fabrics for flexible expansion jointHeat resistant material silicone rubber coated fiberglass fabrics for flexible expansion jointHeat resistant material silicone rubber coated fiberglass fabrics for flexible expansion jointHeat resistant material silicone rubber coated fiberglass fabrics for flexible expansion jointHeat resistant material silicone rubber coated fiberglass fabrics for flexible expansion jointHeat resistant material silicone rubber coated fiberglass fabrics for flexible expansion jointHeat resistant material silicone rubber coated fiberglass fabrics for flexible expansion jointHeat resistant material silicone rubber coated fiberglass fabrics for flexible expansion jointHeat resistant material silicone rubber coated fiberglass fabrics for flexible expansion jointHeat resistant material silicone rubber coated fiberglass fabrics for flexible expansion jointHeat resistant material silicone rubber coated fiberglass fabrics for flexible expansion jointHeat resistant material silicone rubber coated fiberglass fabrics for flexible expansion joint

1. Q: Are you a factory or trading company?

A: We are a factory.

2. Q:Why do you choose us?

A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.

3. Q:What is your delivery time?

A:Generally we will within 30 days of delivery to you

4. Q:Can you product the customized goods?

A:Surely, we can be customized according to your demanding.

5. Q:What kinds of payment you accept?

A:We accept T/T, L/C ,D/P or other.

6. Q:Do you have other production?

A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass

fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric,

Aluminized aramid fabric . We are looking forward to your enquiry.
