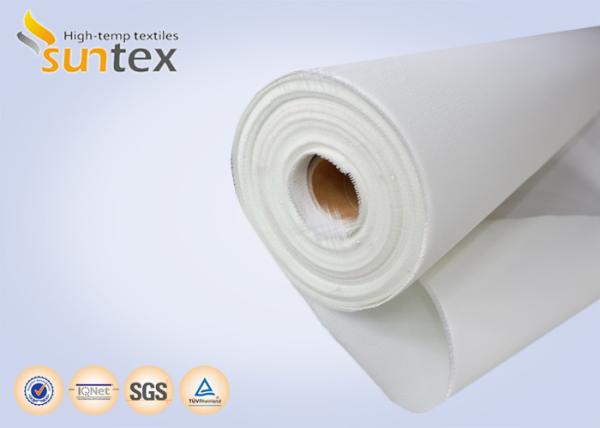

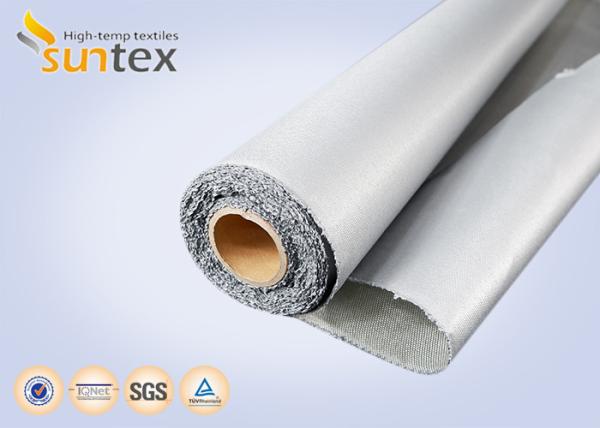

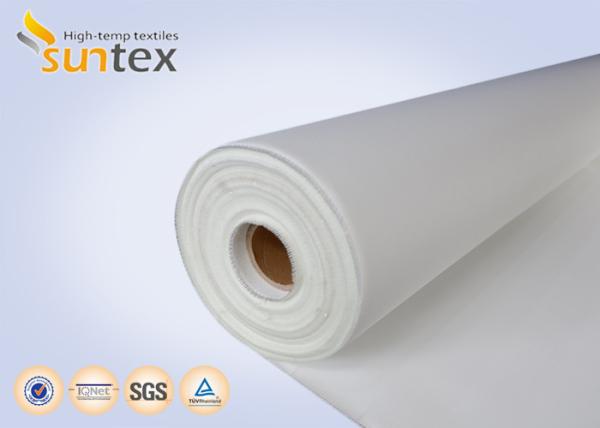

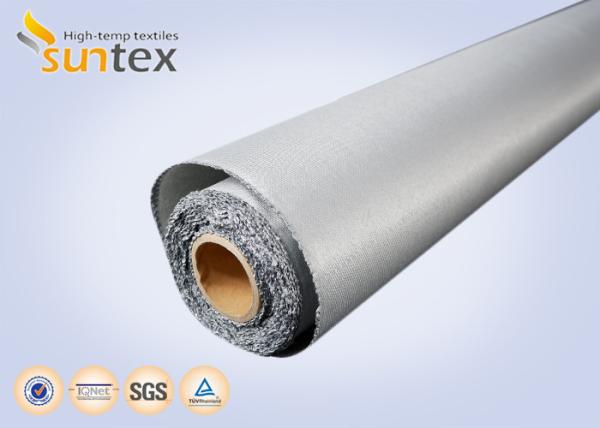

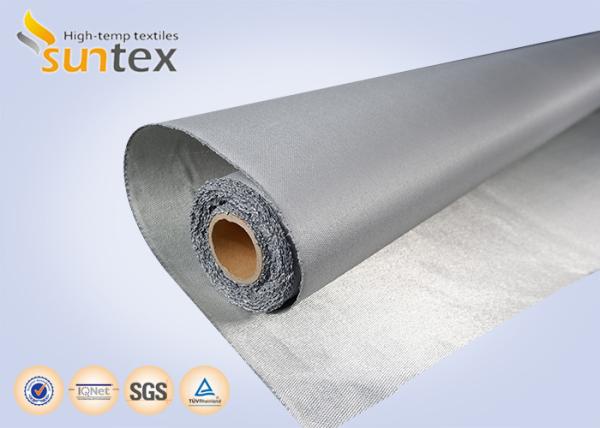

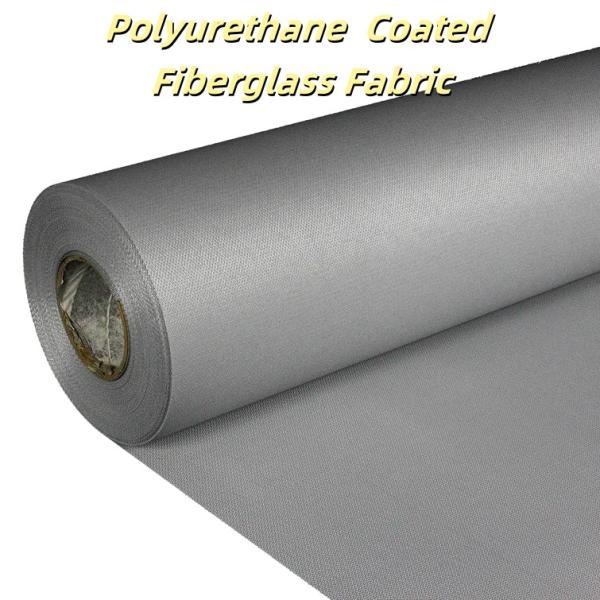

PU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation Material
PU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation Material
PU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation Material
PU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation Material
PU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation Material
PU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation Material
PU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation Material
PU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation Material
PU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation Material
PU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation Material
PU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation Material
PU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation Material
Specifications
Brand Name :
SUNTEX
Model Number :
GF430P-PU21A-2006
Place of Origin :
China
MOQ :
500 meter
Price :
FOB Shanghai 2.3-5.6 $/sqm
Payment Terms :
T/T, L/C, D/P, Western Union
Supply Ability :
50000 meter per month
Delivery Time :
5-15 working days
Packaging Details :
Each roll in the carton, several cartons on the pallets
Weight :
460 g/sqm
Thickness :
0.41 mm
Color :
Blue / Black
Weave Tape :
Twill Weave
Width :
1m/1.3m/1.5m/1.52m/1.55m
Coating :
Polyurethane
Description

Suntex provides specially formulated polyurethane polymer coated fiberglass fabrics which can withstand temperature up to 1800C for short bursts. It has very good abrasion resistance and good resistance to oils and solvents.

Suntex provides one-sided/double-sided polyurethane coated fiberglass fabrics with many colors and widths. It has excellent fire resistance and good mechanical properties for make-up.

Main applications

-Fabric air distribution ducts.

-Fabric ductwork connector.

-Fire doors & Fire curtains.

-Welding/fir blankets.

-Other fire and smoke control systems.

BASE FABRIC Base fabric style No. GF430P
(Metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1﹡2 ECG 75 1/2
Weft EC9 68 1﹡2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96
COATED FABRIC Coating style No. PU21A-2006
Coating Fire retardant, high performance, blue/black polyurethane on both sides
Weight 460 ± 20 g/m2 13.5 ± 0.59 oz/yd2 ASTM D3776-96
Thickness 0.41 ± 0.03 mm 0.017 ± 0.0012 inch ASTM D1777-96
Color Blue/Black
Fire resistance M0 approvals NF92507
Temp resistance

Glass fabric up to 5500C (10000F)

Polyurethane coating up to 1800C (3560F

PU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation MaterialPU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation MaterialPU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation MaterialPU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation Material

Style NO. Weight Thickness Color Coating
(g/m2) (oz/yd2) (mm) (inch)
GF430P—PU213-2005 460 13.5 0.40 0.015 Silver Grey Double side
GF430P—PU21B-2007 460 13.5 0.40 0.015 Grey White Double side
GF660S—PU113-2040 790 23 0.70 0.027 Grey Single side
GF660—PU223-2016 720 21 0.71 0.0275 Silver Grey Double side
TGF580—PU113-2019 620 18 0.75 0.0295 Grey Single side
TGF1020—PU111-2025 1070 31.5 1.5 0.0590 Green Single side

Related Style

PU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation MaterialPU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation MaterialPU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation MaterialPU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation MaterialPU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation MaterialPU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation MaterialPU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation MaterialPU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation MaterialPU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation MaterialPU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation MaterialPU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation MaterialPU Coated Fiberglass Fabric 460gsm Fireproof Thermal Insulation Material

1. Q: Are you a factory or trading company?

A: We are a factory.

2. Q:Why do you choose us?

A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.

3. Q:What is your delivery time?

A:Generally we will within 30 days of delivery to you

4. Q:Can you product the customized goods?

A:Surely, we can be customized according to your demanding.

5. Q:What kinds of payment you accept?

A:We accept T/T, L/C ,D/P or other.

6. Q:Do you have other production?

A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass

fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric,

Aluminized aramid fabric . We are looking forward to your enquiry.
