Specifications
Brand Name :
Suntex
Model Number :
fiberglass removable insulation jacket
Place of Origin :
Jiangsu, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T
Supply Ability :
200000 Pieces/ month
Delivery Time :
5-20 days
Packaging Details :
Packed in cartons loaded on pallets or according to customers' requirements.
Material :
aluminum-foil,glassfiber and high temperature resistance cloth
Yarn type :
E-Glass
Alkali content :
Alkali Free
Weave Type :
twill
Weight :
from 200 to 2000 gram/sq.mtr
Thickness :
25-100mm
Width :
1m 1.2m 1.5m 1.8m 2m or customized
Colors :
red,grey,black,green,and customed colors
Temperature resistance :
-70C~+1000 C
Size :
be customized according to different shapes and sizes of the equipment
Fabrics for :
removable thermal insulation pads,jackets
Good Features :
excellent insulation, water and oil proofing, easy to clean
Application 1 :

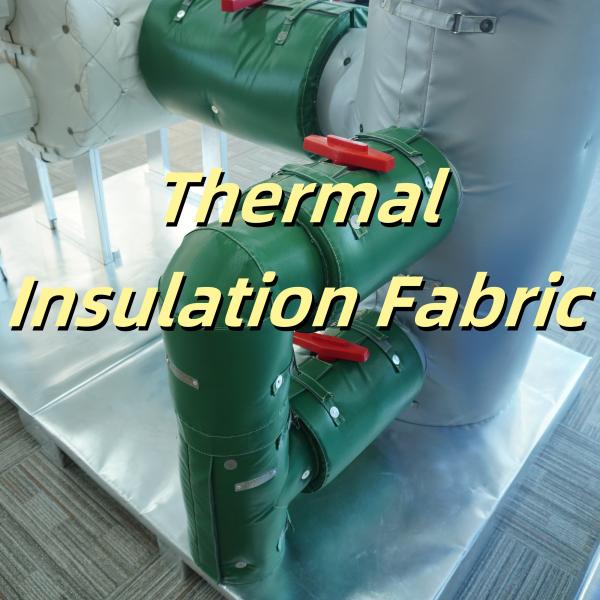

heat preservation and insulation on pipes, elbow, flange, tees
Application 2 :
chemical reactors, turbine suits, heat exchanges, exhaust pipe
Description

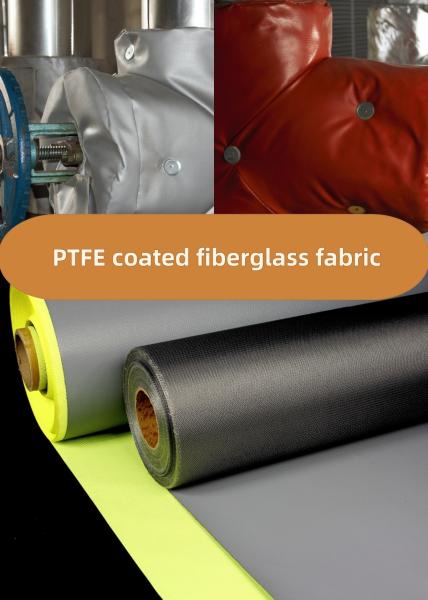

Twill Weave PTFE Coated Fiberglass Fabric High Temperature Resistant

PTFE Coated Fiberglass Fabric use best imported Fiberglass yarn as the weaving material to plain knit or specially knit into superior fiberglass basic cloth, coat it with fine PTFE resin then make it into various PTFE fabricin different thickness and widths.

PTFE Coated Fiberglass Fabric applications

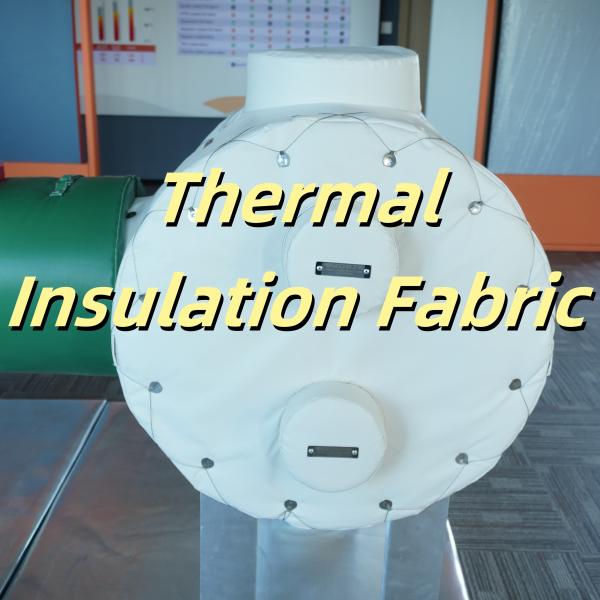

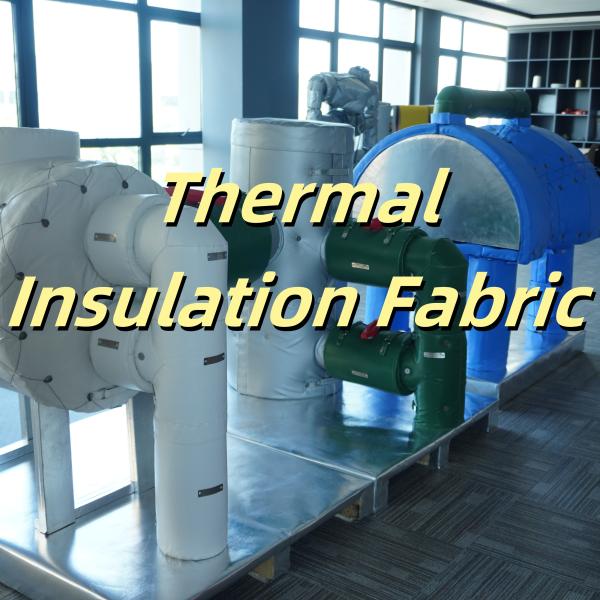

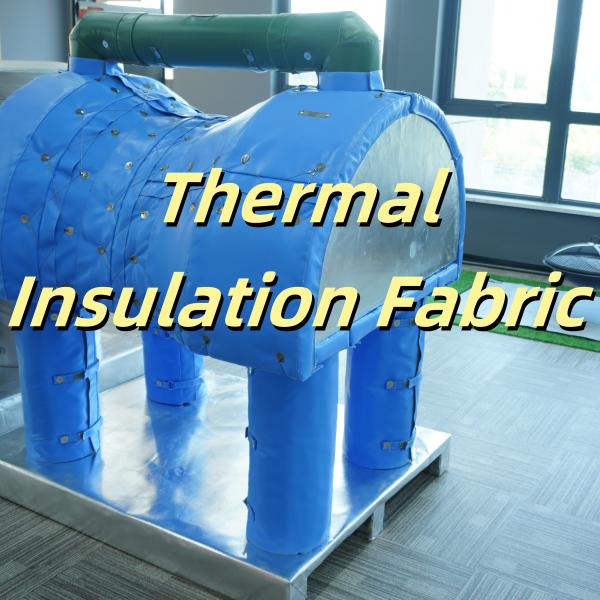

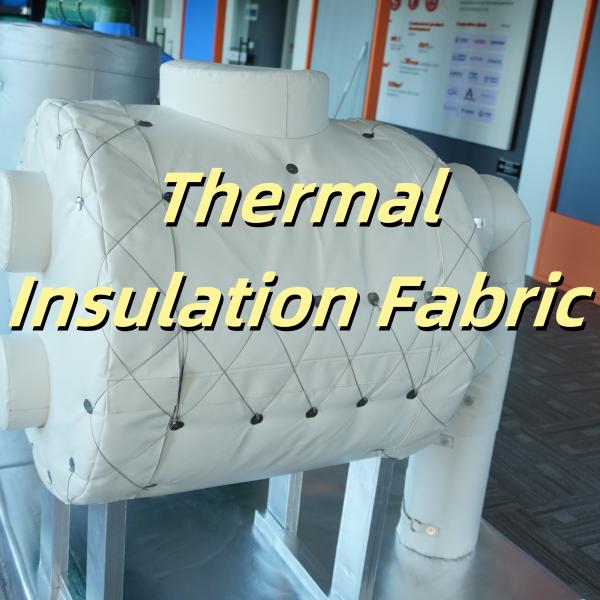

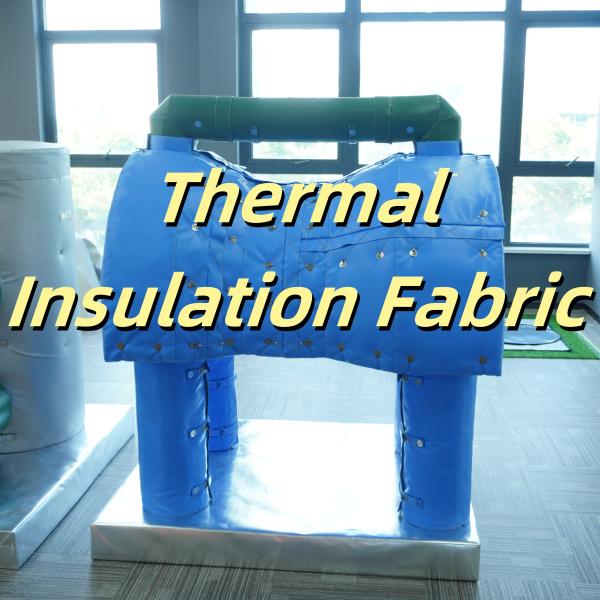

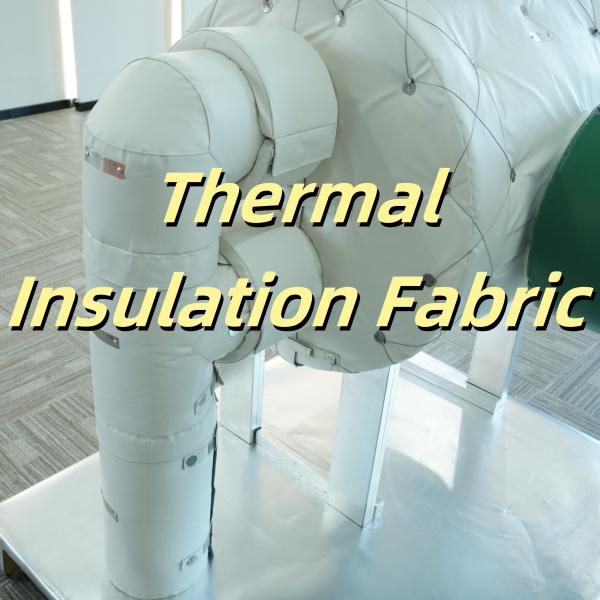

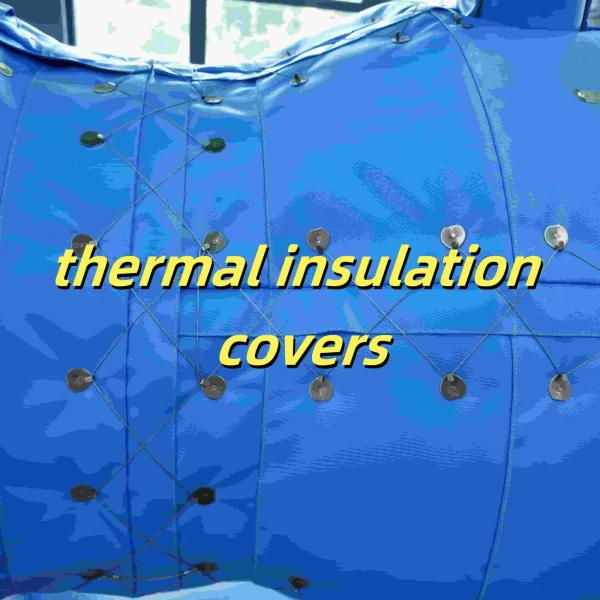

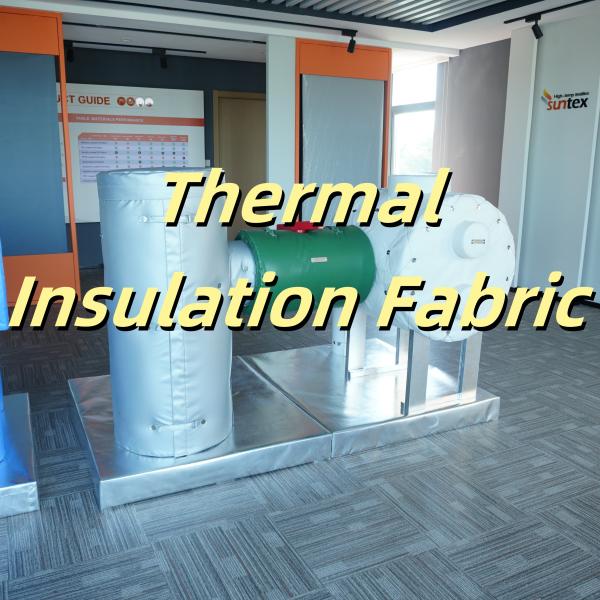

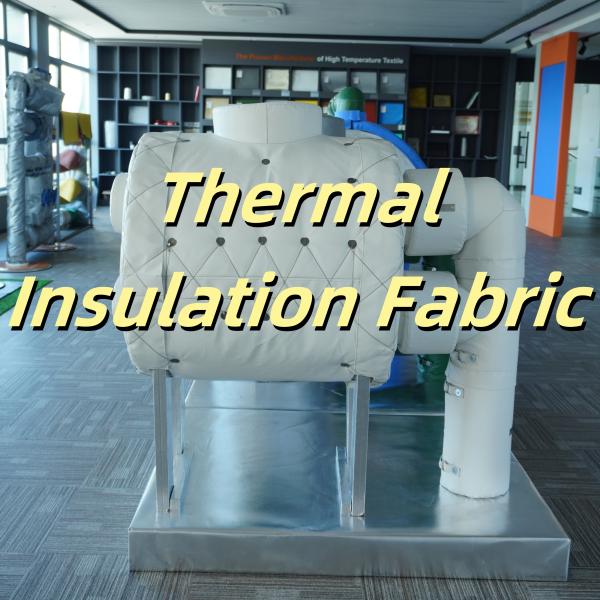

- Thermal insulation jacket, mattress and pad

- Expansion joints and compensators

- Conveying belt

BASE FABRIC Base fabric style No. GF430P
(metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 136 1﹡0 ECG 37 1/0
Weft EC9 136 1﹡0 ECG 37 1/0
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96

COATED FABRIC Coating style No. PTFE133-8003
Coating PTFE coated on one side
Weight 580 ± 20 g/m2 17 ± 0.6 oz/yd2 ASTM D3776-96
Thickness 0.43± 0.02 mm 0.016 ± 0.0007 inch ASTM D1777-96
Color Grey
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C (10000F)

PTFE coating up to 3300C (6200F)

PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket

Related Style

PTFE Coated Glass Fabric for Custom Thermal Insulation JacketPTFE Coated Glass Fabric for Custom Thermal Insulation JacketPTFE Coated Glass Fabric for Custom Thermal Insulation JacketPTFE Coated Glass Fabric for Custom Thermal Insulation JacketPTFE Coated Glass Fabric for Custom Thermal Insulation JacketPTFE Coated Glass Fabric for Custom Thermal Insulation JacketPTFE Coated Glass Fabric for Custom Thermal Insulation JacketPTFE Coated Glass Fabric for Custom Thermal Insulation JacketPTFE Coated Glass Fabric for Custom Thermal Insulation Jacket

1. Q: Are you a factory or trading company?

A: We are a factory.

2. Q:Why do you choose us?

A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.

3. Q:What is your delivery time?

A:Generally we will within 30 days of delivery to you

4. Q:Can you product the customized goods?

A:Surely, we can be customized according to your demanding.

5. Q:What kinds of payment you accept?

A:We accept T/T, L/C ,D/P or other.

6. Q:Do you have other production?

A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass

fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric,

Aluminized aramid fabric . We are looking forward to your enquiry.
