Specifications
Brand Name :
SUNTEX
Model Number :
GF430P-PTFE133-8014
Place of Origin :
CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000m per month
Delivery Time :
30 days
Packaging Details :
50/100m per roll, each roll with a PE bay, packed in carton, 20-25 rolls per pallet
Weight / Unit Weight / Total Weight / Nominal Weight :
580g/sqm g/sq.m g/sq.meter 17oz/sqy oz/sq.y oz/sq.yard
Width / Standard Width / Nominal Width :
1000mm 1520mm 1550m 2000m
Thickness / Standard Thickness / Nominal Thickness :
0.43mm 0.016inch
Color/Colour :
Silver Grey
Weave/Pattern :
4H Satin / Crowfoot
Temperature Resistance /Working Temperature :
550℃ 1000℉
Coating temperature resistance :
330℃ 620℉
Basic fabric temperature resistance :
550℃ 1000℉
Coated/Coating/Treatment/Surfacing :
PTFE one/1/single side
Fiberglass :
E-glass
Description

Fire Resistance PU Coated Fiberglass Fabric For Curtain Fabric Fire Protection 0.21mm Thickness Compensator Cloth

Introduce

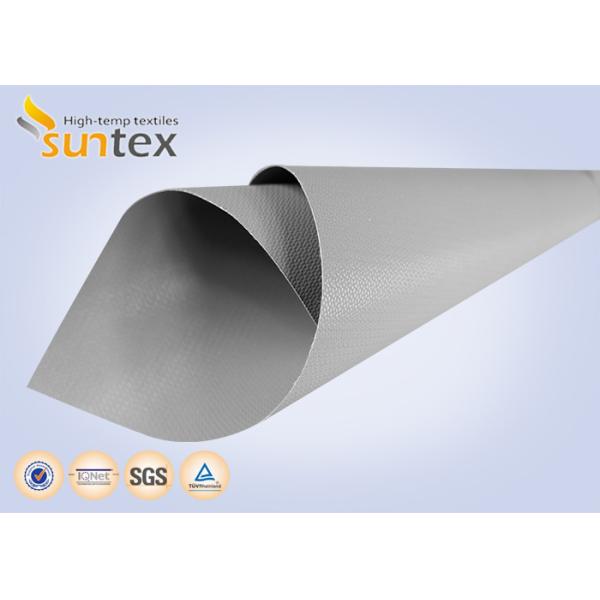

GF430P-PTFE133-8014 is a medium weight woven fiberglass fabric coated with a specially formulated PTFE solution on one side.GF430P-PTFE133-8014 has excellent chemical resistance. And this fabric is soft and easy to sew and clean. It’s designed for the manufacturer of removable insulation covers, dust lagging and other types of fire control systems.

Advantage

1. Good/Well/Excellent/Awesome certified fire resistance.

2. Silver Grey / Black color. Various color available. End users can choose the favority face.

3. Easy to be used/applied/holed, sewn and fabricated.

4. Good/Well/Excellent/Awesome abrasion resistance property.

5. Good/Well/Excellent/Awesome tensile strength.

6. Thickness / Nominal thickness, weight/unit weight, weave/pattern, all can be customized base on your application/use method.

Data

Weight / Standard weight / Unit weight / Total weight 580 g/m2 g/sqm g/sq.m g/sq.meter 17oz/y2 oz/sqy oz/sq.y oz/sq.yard
Thickness / Standard Thickness / Nominal Thickness 0.43 mm 0.016inch cm
Width / Standard width / Nominal width 1000mm 1520mm 1550mm 2000mm
Coated / Coating / Treatment / Surfacing PTFE
Color / colour of coating/surface Silver Grey
Fire resistance Good / Well / Excellence / Perfect
Working temperature / Temperature resistance Basic fabric 550 ℃, PTFE coating 330 ℃.
Coating temperature resistance / Coating working temperature PTFE coating 330 ℃
Basic fabric working temperature / Basic temperature resistance Basic fabric 550 ℃
Weave/Pattern 4H Satin / Crowfoot
Yarn warp EC9 136 1*0
Yarn weft EC9 136 1*0
Construction warp 18 ± 1 ends/cm ends/inch
Construction weft 12.6 ± 1 ends/cm ends/inch
Fiberglass E-Glass

Applications

Dust Lagging

Smoke / Fire curtain

Reusable / Removable thermal / heat insulation cover / jacket / sheath / shell / kit / couples

Thermal / Heat insulation pad/ mattress / mat

Guarantees

All Suntex’s customers are covering by the warranty:

  • Replacement. – In case of the quality of delivery was proved unsatisfied by our customer, suntex will send out a new batch to replace without delaying.
  • Timely delivery. – Suntex usually keeps sufficient stocks for the standard items. It assures us to deliver the goods to the customers worldwide in time.
  • Cost-effective (low price). – Suntex understands the customers’ requirements of continually lowering the purchase prices. All guys at Suntex keep in increasing work efficiency to reducing the production costs to meet the customers’ requirements of costs reduction.
  • Environmental protection & human health care. – Suntex cares the human health and environmental protection. All materials used in the process of our production are harmless to the human and environment. (photos: ROHS, ASBESTOS FREE)

Related Products

Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF430P-PTFE135-8001 580 17 0.43 0.016 Black 1 side
GF430P-PTFE133-8003 580 17 0.43 0.016 Silver Grey 1 side
GF430P-PTFE233-8006 610 20 0.45 0.017 Black/Grey 2 sides
GF430P-PTFE133-8014 580 17 0.43 0.016 Silver Grey 1 side
