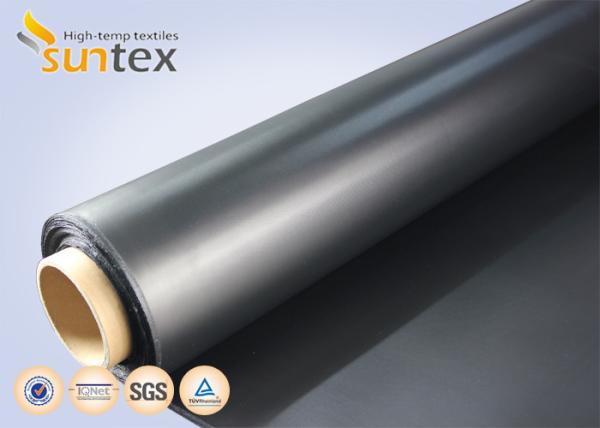

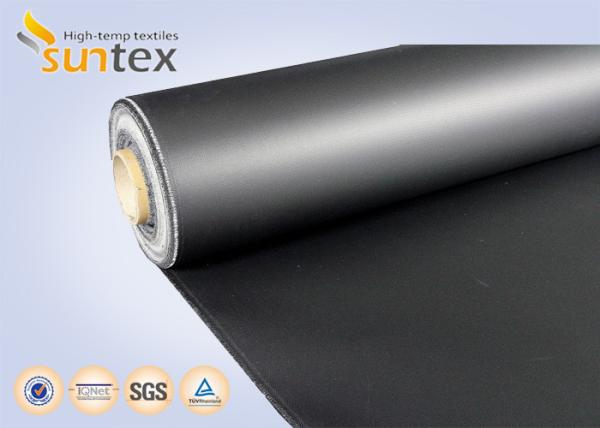

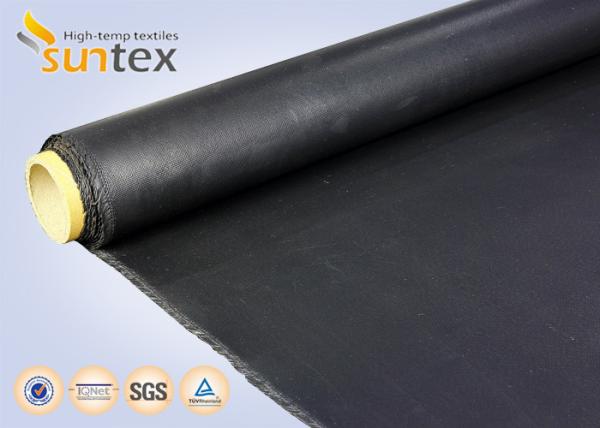

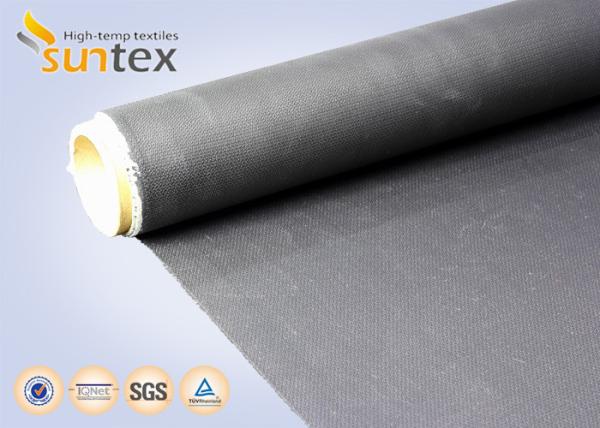

Thermal Insulation Fireproof Fabric Fiberglass Coated With Neoprene
Thermal Insulation Fireproof Fabric Fiberglass Coated With Neoprene
Thermal Insulation Fireproof Fabric Fiberglass Coated With Neoprene
Thermal Insulation Fireproof Fabric Fiberglass Coated With Neoprene
Thermal Insulation Fireproof Fabric Fiberglass Coated With Neoprene
Thermal Insulation Fireproof Fabric Fiberglass Coated With Neoprene
Thermal Insulation Fireproof Fabric Fiberglass Coated With Neoprene
Thermal Insulation Fireproof Fabric Fiberglass Coated With Neoprene
Specifications
Brand Name :
SUNTEX
Model Number :
GF431P-NE245-4005
Place of Origin :
China
MOQ :
20 rolls
Payment Terms :
T/T; L/C, Paypal...
Supply Ability :
500000sqm/month
Delivery Time :
5-20 days
Packaging Details :
Each roll in carton, several cartons in a pallet
Weight :
600 g/sqm
Thickness :
0.45 mm
Color :
Black
Yarn Tape :
E-glass
Weave Tape :
Satin Weave
Width :
1.52m
Coating :
Neoprene
Standing Temperature :
From -50℃ to 550℃
Description

Thermal Insulation Fireproof Fabric Fiberglass Coated With Neoprene

GF431P-NE245-4005 is a medium weight fiberglass fabric coated with a high quality, fire retardant neoprene rubber. This product is designed for the manufacture of removable, reusable insulation pads, jackets, and mattresses. The material is soft and pliable and easy to sew.

This product is particularly suitable for the manufacture of compensators and expansion covers.

Main applications

- Flexible ductwork connector

- Welding blankets

- Other fire control systems

BASE FABRIC Base fabric style No. GF431P
(Metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1﹡2 ECG 75 1/2
Weft EC9 68 1﹡2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96
COATED FABRIC Coating style No. NE245-4005
Coating Neoprene rubber , two sides
Weight 600 ± 30 g/m2 17.35 ± 0.88 oz/yd2 ASTM D3776-96
Thickness 0.47 ± 0.02 mm 0.019 ± 0.0008 inch ASTM D1777-96
Color Black
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C (10000F)

Neoprene rubber coating up to 1500C (3600F)

Related Style

Thermal Insulation Fireproof Fabric Fiberglass Coated With NeopreneThermal Insulation Fireproof Fabric Fiberglass Coated With NeopreneThermal Insulation Fireproof Fabric Fiberglass Coated With NeopreneThermal Insulation Fireproof Fabric Fiberglass Coated With NeopreneThermal Insulation Fireproof Fabric Fiberglass Coated With Neoprene
