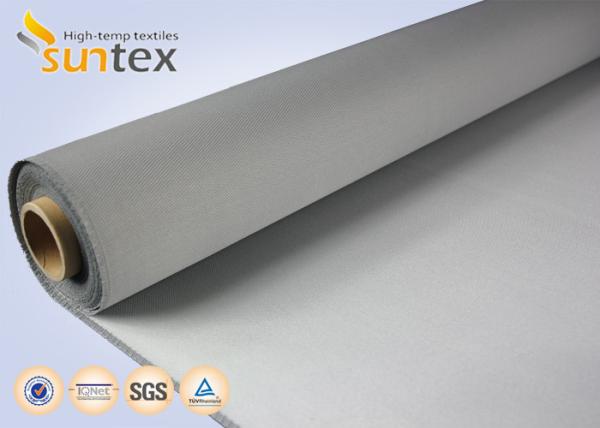

550C High Temperature Resistant PU Coated Fiberglass Cloth Roll 0.7mm Fire Protection
550C High Temperature Resistant PU Coated Fiberglass Cloth Roll 0.7mm Fire Protection
550C High Temperature Resistant PU Coated Fiberglass Cloth Roll 0.7mm Fire Protection
550C High Temperature Resistant PU Coated Fiberglass Cloth Roll 0.7mm Fire Protection
550C High Temperature Resistant PU Coated Fiberglass Cloth Roll 0.7mm Fire Protection
550C High Temperature Resistant PU Coated Fiberglass Cloth Roll 0.7mm Fire Protection
Specifications
Brand Name :
SUNTEX
Model Number :
GF660C-PU223-2016
Place of Origin :
China
MOQ :
20 rolls
Payment Terms :
T/T; L/C, Paypal...
Supply Ability :
500000sqm/month
Delivery Time :
5-20 days
Packaging Details :
Each roll in carton, several cartons in a pallet
Unit Weight :
21.20 oz/sq.y
Standard Width :
1520mm
Standard Thickness :
0.028 inch
Colour :
Silver Grey
Coating temperature resistance :
350℉
Basic fabric temperature resistance :
1000℉
Coating :
Polyurethane 2 sides
Description

550C High Temperature Resistant PU Coated Fiberglass Welding Blanket Roll 0.7mm Fire Protection

Introduction:

GF660C-PU223-2016 is a woven fiberglass fabric with a specially formulated polyurethane aluminum polymer,this help improve the property of heat reflecting , as well as mechanical property for the further manufacturing of welding blanket & fire control systems.

Other applications are insulation covers where can be used as an attractive alternative to foil faced laminates for less demanding end uses.

Advantages

1. M0 certificate.

2. End users can choose the favority face.

3. Easy to be applied, sewn and fabricated.

4. Well abrasion resistance property.

5. Color can be customized base on your project.

550C High Temperature Resistant PU Coated Fiberglass Cloth Roll 0.7mm Fire Protection

Data

Total weight 21.20 oz/y2
Standard Thickness 0.028 inch
Standard width 1000mm
Coating PU
Colour of coating Silvery Grey
Fire resistance Perfect
Coating temperature resistance PU coating 180 ℃
Basic fabric working temperature Basic fabric 550 ℃
Pattern 8H Satin
Fiberglass Glassfiber

fiberglass cloth roll​ Applications

Fire curtain

Welding blanket

Compensator

Removable heat insulation shell

Heat insulation mat

Fabric ducts

Related Products

Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF200P-PU210-2001 220 6.5 0.21 0.0082 White 2 sides
GF430P-PU213-2004 460 13.5 0.41 0.0161 Silver grey 2 sides
GF430P—PU213-2005 460 13.5 0.40 0.015 Silver Grey 2 sides
GF430P-PU21A-2006 460 13.5 0.41 0.0161 Blue/Black 2 sides
GF430P—PU21B-2007 460 13.5 0.40 0.015 Grey White 2 sides
GF430P-PU223-2010 490 14.5 0.45 0.0177 Blue/Black 2 sides
GF660—PU223-2016 720 21 0.71 0.0275 Silver Grey 2 sides
TGF580-PU113-2019 620 18.3 0.77 0.0303 Silver grey 1 side
GF800C-PU223-2023 880 26 0.9 0.0354 Silver grey 2 sides
TGF1020—PU111-2025 1070 31.5 1.5 0.0590 Green 1 side
GF660S-PU213-2036 710 20.9 0.7 0.0276 Silver grey 2 sides
GF660S—PU113-2040 790 23 0.70 0.027 Grey 1 side
SL600-PU113-2044 630 18.6 0.7 0.0276 Silver grey 1 side
TGF1000P-PU223-2049 1100 32.4 1.2 0.0472 Silver grey 2 sides
