Fireproof and Heat Resistant Aluminum Foil Fiberglass Cloth for Industrial Protection and Insulation

Description

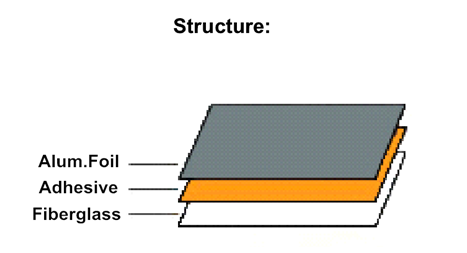

This foiled fiberglass fabric is made from high-quality 3732 woven fiberglass cloth (430 g/m²) laminated with a reflective aluminum foil layer. The finished composite fabric provides enhanced heat reflection and insulation performance.

Total weight: 480 g/m²

Total thickness: 0.43 mm

The 3732 fiberglass base fabric performs reliably in continuous temperatures ranging from -50°C to 260°C (-58°F to 500°F), withstanding brief exposure to even higher temperatures. The foil adhesive layer—made of hydrogel or acrylate adhesive—is recommended for use below 300°C, ensuring strong and durable bonding between the fiberglass and aluminum layers.

The aluminum foil significantly improves heat resistance and radiant heat reflection, while also providing moisture and chemical resistance. Though aluminum melts at high temperatures, it requires sustained heat to reach that point, allowing the fabric to tolerate short-term exposure above its rated temperature.

Aluminum foil thickness options: 7 μm, 18 μm, 25 μm, 50 μm (max)

Common widths: 100 cm / 127 cm / 150 cm

Roll length: 50–100 meters

This composite material is widely used for thermal insulation, heat shields, engine and equipment protection, welding curtains, and fire-resistant barriers.

Data Sheets for 0.4mm Alumimium Fiberglass Cloth

What are the uses of aluminum foil fiberglass cloth?
Electrical insulation: It can be made into insulating cloth and tubing, suitable for applications requiring high electrical insulation performance.
Non-metallic compensators: It is used as flexible pipe joints and non-metallic compensators. It is primarily used in power plants, the petroleum, chemical, cement, and steel industries.
Anti-corrosion: It is an ideal anti-corrosion material for internal and external corrosion protection of pipelines and storage tanks.
Fire protection: It can be used as fireproof cloth in industries such as automotive and shipbuilding.
Other uses: It can also be used as a building sealant, high-temperature anti-corrosion tape, packaging material, and decorative material.

Product Features:
Clean, lightweight, flexible, and with excellent cushioning properties;
Reflective, insulating, and waterproof (fireproof);
Low thermal conductivity and excellent thermal insulation;
Easy installation, high efficiency, maintenance-free, and environmentally friendly.

Much More Related Products

FAQs

Q: Why choose us?
A: Wingsec's management and staff have over 20 years of combined experience in the industrial textiles industry. Leveraging advanced equipment, Wingsec is committed to providing customers with high-quality, cost-effective products.

Q: What is your delivery time?
A: We typically ship within 10 days of order, but the specific delivery time depends on the quantity you require.

Q: Where is your shipping port?
A: Typically, Shanghai Port, but custom orders are also available.

Q: Can you produce custom products?
A: Of course, we can customize according to your requirements.

Q: What payment methods do you accept?
A: We accept T/T, D/A, L/C, and D/P.

Q: Do you have other production methods?
A: Of course. We offer silicone-coated fiberglass cloth, polyurethane-coated fiberglass cloth, stainless steel wire-reinforced alkali-free fiberglass cloth, vermiculite-coated fiberglass cloth, graphite-treated fiberglass cloth, calcium silicate-coated fiberglass cloth, EPDM-coated fiberglass cloth, fluororubber-coated fiberglass cloth, aluminum foil-coated fiberglass cloth, woven lock/finished fiberglass cloth, fire blankets, welding blankets, and customized solutions for your insulation needs. We look forward to hearing from you.
