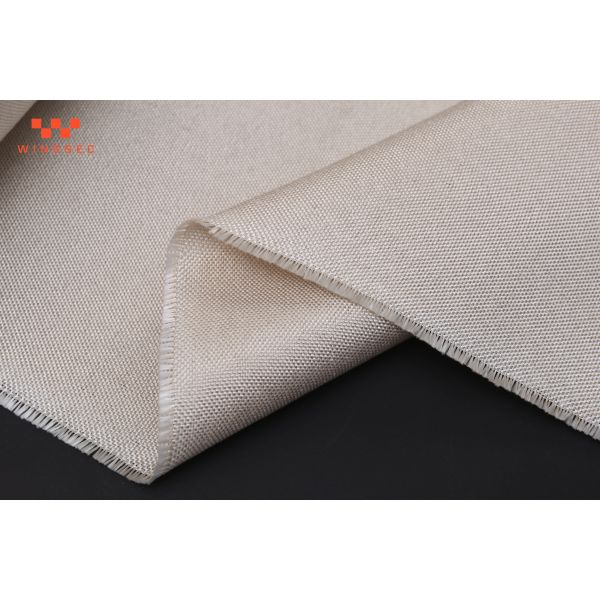

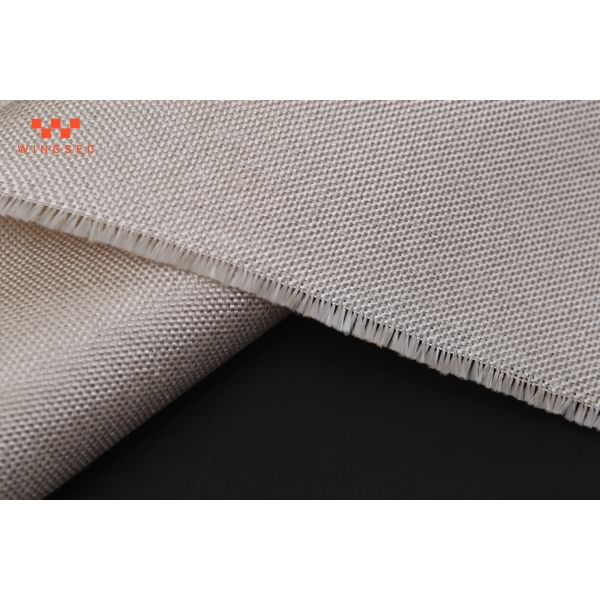

The HT2025 0.6mm texturized expanded fiberglass thermal insulation roll is a versatile industrial-grade insulation fabric designed for general thermal management and fire safety applications. The texturized bulked yarn construction provides an optimal balance of insulation performance, flexibility, and handling ease at a lightweight 600 g/m². With a robust 550°C temperature rating, this fabric serves as a dependable solution for a wide range of industrial insulation, safety barrier, and thermal protection requirements.
| Parameter | Specification |
|---|---|
| Material | 100% E-Glass Texturized Fiberglass Yarn |
| Weave Type | Plain Weave (Texturized) |
| Thickness | 0.6 ± 0.06 mm |
| Width | 101.6 ± 2 cm (40 inch) |
| Weight | 600 ± 25 g/m² (18.9 OZ/YD²) |
| Temperature Rating | 550°C (1022°F) |
| Tensile Strength Warp | 6600 N/5cm (733 lbs/inch) |
| Tensile Strength Weft | 4900 N/5cm (544 lbs/inch) |
| Oil Content | < 0.5% |
| Coating Type | Heat Treatment (Smoke-Free) |
| Yarn Type | Texturized Bulked Yarn |
| Color | Golden / Tan |
Related Products
| Cloth Type | Style | Thickness | Weight |
| Woven Fiberglass Fabric | HT3732 | 0.4mm | 430gsm |
| HT800 | 0.8mm | 830gsn | |
| HT3788 | 1.6mm |
1650gsm |
|
| Texturized Fiberglass Fabric | HT2025 | 0.7mm | 580gsm |
| HTM30 | 1.2mm | 1200gsm | |
| Reinforced Fiberglass Fabric | HT 666 Reinforced with Wire | 0.6mm | 650gsm |
we can also produce other Fiberglass Fabrics, such as Write Fiberglass Fabric, PU-coated Fiberglass Fabric, Aluminum Foil GlasFiber, Silicone-coated Fiberglass Fabric, Acrylic-coated Fiberglass Cloth, Dried Fiberglass Fabrics, etc. Do you have an interest? Please contact me at any time
