GB/T 2518-2008 0.70mm* 1000MM Galvalume steel coils/sheets/strips Chromated Free AZ225 DX56D+Z

1. Specification

GL is more popular in recent years, especially popular due to the merits of PPGL, which suitable for the enviroment there well.
Firstly, the corrosive resistance of the hot-dip alu-zinc coated steel sheet is twice to fifth times as mush as that of the hot-dip zinc- coated base metal.
Secondly, it can satisfy the processing requirements of rolling, coiling and others processes alike.
Thirdly, the color won’t change while continuously or intermittently working with an ambient temperature up to 316℃.Neither serious oxygenation nor oxide scale might appear while continuously or intermittently working with an ambient temperature up to 490℃.
Thirdly, the heat and the light reflected are respectively twice as much as those of hot-dip zinc steel sheet, and its reflectivity is more than 0.75, exceeding 0.65 (required by the EPA Energy Star Standard), which is an ideal construction material of saving energy.

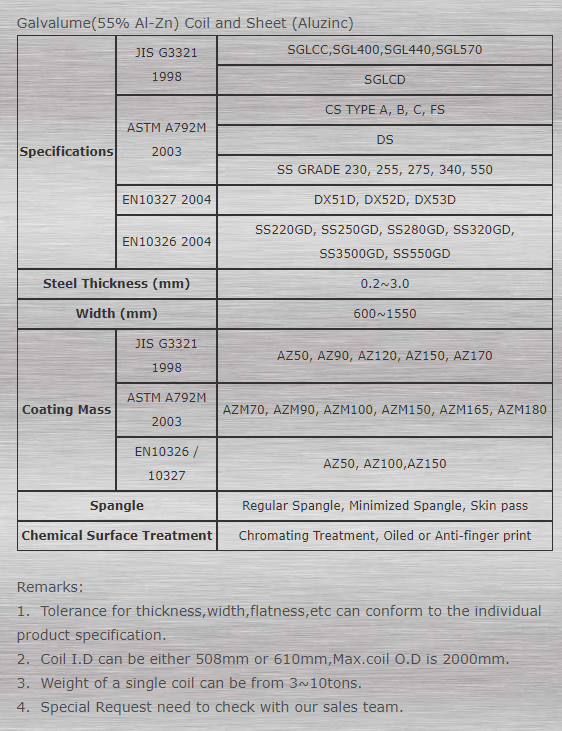

2. Mechanical properties of hot dip Al-Zn base

Mechanical properties of steel sheet and strip should be in conformity with the stipulations of following chart.
Because the effects of aging, mechanical properties of the steel strip shall deteriorate with storage time passing, E.g. yield strength and tensile strength will rise, elongation after fracture decreases, formability deteriorates etc. it is suggested to use the material as soon as possible.

For products with nominal thickness greater than 0.50mm, but less than or equal to 0.70mm, the elongation after fracture is allowed to decrease by 2 units. For products with nominal thickness not greater than 0.50mm, the elongation after fracture is allowed to decrease by 4 units.

3. Our Advantage: Strictly Quality Control of Production

Inspection for quality of surface coating on the line supervises and controls the apperance effectively to ensure the quality of coating.

The testing for physical performance follow the principle of one coil, one sample. In order to have traceability of every coil’s quality, we test T bend, impact, cupping, MEK, gloss, chromatism to ensure quality. Ultraviolet aging test and Salt spraying test apply to special requirement products.

4. Applications

1) Construction:
Outside: workshop, agricultural warehouse, corrugated roof, wall, retailer booth, roller shutter door, etc.
Inside: door, doorcase, ceiling, elevator, stairway, vent gutter, etc.
2) Electrial Appliance: refrigerator, washer, switch cabinet, desk, bed, micro-wave oven, bread maker
3) Furniture: central heating slice, lampshade, chifforobe, desk, bed, locker, boofshelf
4) Others: writing panel, garbage can, billboard, etc.

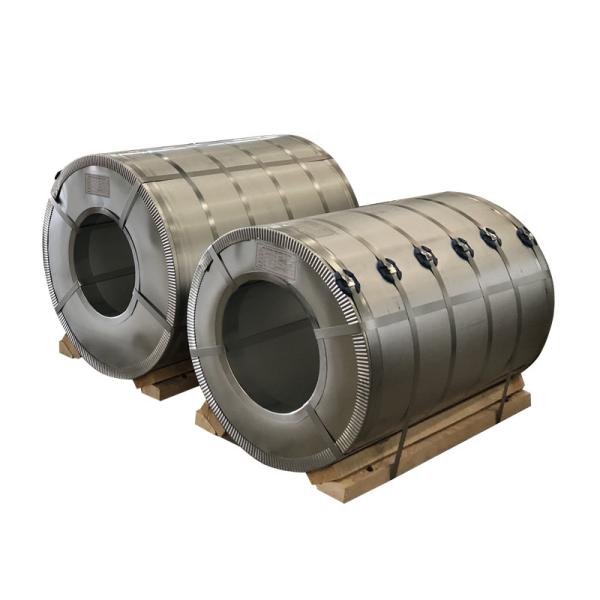

5. Packing

Standard Seaworthy Export packing:peripheral anti-rust board, inside anti-rust paper, plastic cannula, latitude strapping, radial srapping, etc.

6. Our service:

1) Free sample offered;
2) Flexible payment term with L/C at sight,TT ,ect;
3) Big quantity supply and short delivery time;
4) Stable and reliable quality
5) Long term after-sale service.
