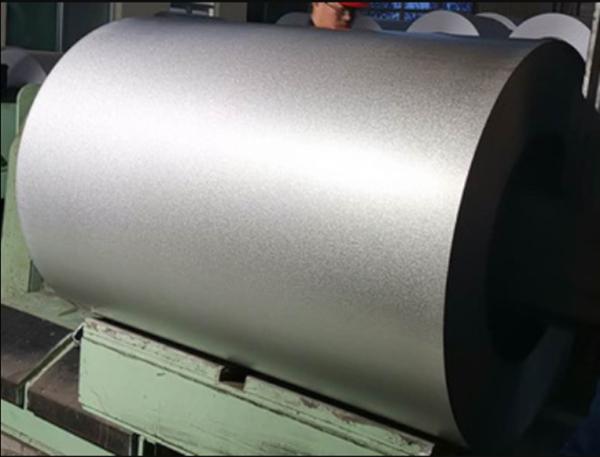

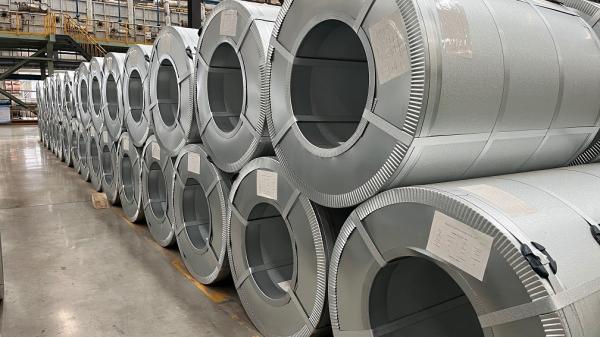

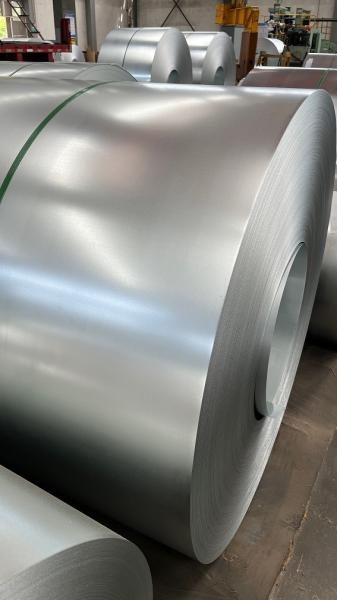

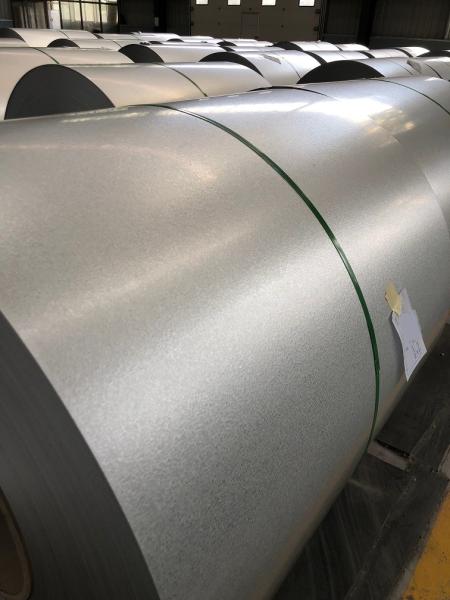

AZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger Print
AZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger Print
AZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger Print
AZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger Print
AZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger Print
AZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger Print
AZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger Print
AZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger Print
AZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger Print
AZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger Print
Specifications
Brand Name :
DECHO
Model Number :
AZ 150
Certification :
ISO 9001:2015 Certificate
Place of Origin :
China
MOQ :
16 tons
Price :
650~800 USD
Payment Terms :
L/C, T/T
Supply Ability :
1000 tons per day
Delivery Time :
30~45 days
Packaging Details :
Horizontal package With Wooden Pallet/ Vertical packeg with Wooden pallet
THINCKNESS :
0.50 mm
Width :
1200mm
Coil ID. :
508mm
Spangle :
Regular Spangle
Coil Weight :
2tons~16tons
Packing :
Standard export packing ( Eye to Side)
Description

AZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger Print

What Are The Galvalume Coils?

The alloy-coated product contains 55% aluminum, 43.5% zinc and 1.5% silicon by weight. Applied by the traditional hot-dipping process, Galvalume is perfect for applications that call for high corrosion resistance and heat reflectivity. It is typically used in construction , appliances, agricultural equipment and several non-exposed automotive components.

Thanks to its shiny spangled appearance, Galvalume can be used even without a layer of paint over it. The JSW Galvalume sheet, branded JSW Vishwas+, is a unique product that is suitable for heating and ventilation applications. It has better resistance to oxidation and can withstand temperatures up to 315°C without discolouration.

Features

Smooth surface and uniform spangled appearance.

A superior anti-fingerprint coating that looks better, and lasts longer.

Surface treatment as per ROHS (Restriction On Hazardous Substance) norms

A wider thickness range with tighter tolerances to ensure precision in end applications.

High corrosion resistance and heat reflectivity

High temperature resistance and formability

Easy paint application

European Standards EN 10346:2015

Standards Steel grade Thickness(mm) Width(mm) Coating Mass
(g/square meter)
EN 10346 DX51D,
DX52D,
DX53D,
DX54D,
S220GD,
S250GD,
S280GD,
S320GD,
S350GD
S550GD		 0.2 - 1.2 800 - 1,250 AZ100
AZ150
AZ185

America standards ASTM A792M

Standards Steel grade Thickness(mm) Width(mm) Coating(g/square meter)
ASTM A792M CS(TYPE A, B, C)
FS(TYPE A, B)
DS
DDS
SS GRADE
33(230)
37(255)
40(275)
50(340) CLASS 1~3
80(550) CLASS 1~3		 0.2 - 1.2 800 - 1,250 AZM100
AZM110
AZM120
AZM150
AZM165
AZM180

Japanese Standard JIS G 3321

Standards Steel grade Thickness(mm) Width(mm) Coating(g/square meter)
JIS G 3321 SGLCC
SGLCD
SGLCDD
SGLC400
SGLC440
SGLC490
SGLC570		 0.2 - 1.2 800 - 1,250 Z06(60)
Z08(80)
Z10(100)
Z12(120)
Z14(140)
Z18(180)
Z20(200)
Z22(220)
Z25(250)
Z27(270)

Australian Standard AS1397

Standards Steel grade Thickness(mm) Width(mm) Coating
AS1397 G1~G3
G250
G300
G350
G450
G500
G550		 0.2 - 1.2 800 - 1,250 AZ150
AZ200

AZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger Print

AZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger Print

AZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger Print

AZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger PrintAZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger PrintAZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger Print

AZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger PrintAZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger PrintAZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger Print
