Protable 1500W 2000W 3000W Fiber Laser Cutting Machine
Protable 1500W 2000W 3000W Fiber Laser Cutting Machine
Protable 1500W 2000W 3000W Fiber Laser Cutting Machine
Protable 1500W 2000W 3000W Fiber Laser Cutting Machine
Protable 1500W 2000W 3000W Fiber Laser Cutting Machine
Protable 1500W 2000W 3000W Fiber Laser Cutting Machine
Specifications
Brand Name :
GAUSS
Model Number :
GS-1530F
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
4500~6500
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60 Set per month
Delivery Time :
12 days
Packaging Details :
Plywood box package
Laser power :
2000W&1500W
Cutting materials :
Stainless Steel Carbon Steel Etc
Laser head :
Ousipurui
Laser source :
Max 1500W 2000W
Control system :
Fangling
Working table :
1500x3000mm
Max cutting speed :
30m/min
Max Cutting Thickness :
22mm
Power :
22V 3 phase 50~60Hz
Description

Protable 1500W 2000W 3000W Fiber Laser Cutting Machine

Machine table Features:

1.Gantry dual drive, adopting advanced gear rack transmission structure. Equipped with grinding gear and rack, and through the precision collimator one time metering assembly. The machine will secure long-term high cutting speed, high precision transmission.
2,The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding, customer will have long-term payback.
3, Applicable materials: stainless steel, carbon steel, alloy steel, spring steel, aluminum, silver, copper, titanium and some metal plate and pipe.
4, Applicable industries: Glasses,jewelry,kitchen ware,chassis and cabinet,metal pipe,lamp&lanterns,metal ware,hardware,precision machinery,auto parts,elevator,nameplate, advertisement, electronics,toys and other industries. metal fiber metal laser cutting machine for 1mm 2mm 3mm 5mm 6mm Stainless Steel 1000w 5mm carbon steel fiber laser cutting machine cnc auto focus laser cutter.
Specificaiton
Item Data
Model GS-1530F
Laser power 2000/15000W
Working Table Sawtooth
Maximum Idle Running Speed 40m/min
Cutting Thickness Stainless Steel≤6mm , Carbon Steel≤12mm
Control System

Fangling
Driver system 750W Leadshine servo motor
Guider system HIWIN made in Taiwan
Rack system YYC Taiwan
Warranty time 2 years
Delivery time 15 days
Power supply AC220V/50HZ,

Protable 1500W 2000W 3000W Fiber Laser Cutting MachineProtable 1500W 2000W 3000W Fiber Laser Cutting MachineProtable 1500W 2000W 3000W Fiber Laser Cutting MachineProtable 1500W 2000W 3000W Fiber Laser Cutting Machine


Manufacturing Technique

Protable 1500W 2000W 3000W Fiber Laser Cutting Machine Fiber laser power from Max or Raycus 2000W
Protable 1500W 2000W 3000W Fiber Laser Cutting Machine

Cutting torch from

Ousipurui
Protable 1500W 2000W 3000W Fiber Laser Cutting Machine

Controller from Fangling-L5210H
Protable 1500W 2000W 3000W Fiber Laser Cutting Machine

Chillser brand S&A




Protable 1500W 2000W 3000W Fiber Laser Cutting Machine

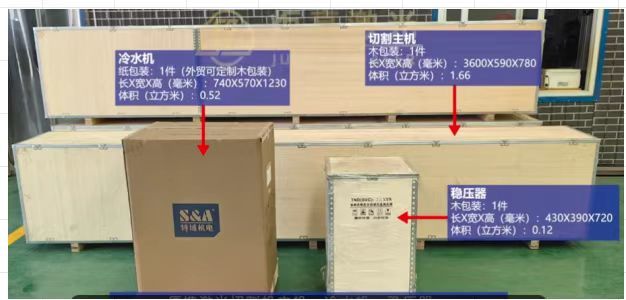

Portable laser cutting machine(excluding material table)consists of three parts:cutting host,water cooler and voltage stabilizer (optional).Packing size (mm), host: 3600*600*700; chiller: 740*570*1150; voltage regulator: 430*385*740;three parts total volume:3.3CBM;three parts weight:400 kg.

Protable 1500W 2000W 3000W Fiber Laser Cutting MachineProtable 1500W 2000W 3000W Fiber Laser Cutting Machine
