Hardness 3.2Kw Water Cooled Spindle 220V CNC Spindle Machine CE
Hardness 3.2Kw Water Cooled Spindle 220V CNC Spindle Machine CE
Hardness 3.2Kw Water Cooled Spindle 220V CNC Spindle Machine CE
Hardness 3.2Kw Water Cooled Spindle 220V CNC Spindle Machine CE
Specifications
Brand Name :
CS
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD50~100
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 set per month
Delivery Time :
3~5 working day
Packaging Details :
Carton
Diameter :
100mm
Collet/Nut :
ER20
Router bits diameter :
1~12mm
Weight :
7kgs
Description

220V 1 Phase ER20 Size 3200w Wood Water Cooled Spindle

Power:3.2Kw
Speed:24000rpm
Cooling method:Water cooling
Frequency:400Hz
Voltage:220V/380

1.Water cooling has a good heat dissipation effect
2.Four bearings, high power and long service life.
3.The meticulous encapsulation process makes the rotor fuller and more durable. Copper alloy commutator has higher hardness and stronger wear resistance.
4. Pure copper galvanized cooling water pipe joint

Maintenance

After receiving a new electric spindle, it will start at a low speed of 6000, and increase it by 3000 every ten minutes, until it can be used normally after 24000 revolutions. The bearings inside the new spindle need to be preheated and run-in, so remember! In addition, in order to prolong the service life of the spindle, it is best to start the spindle for a test run for 10-15 minutes during normal use.

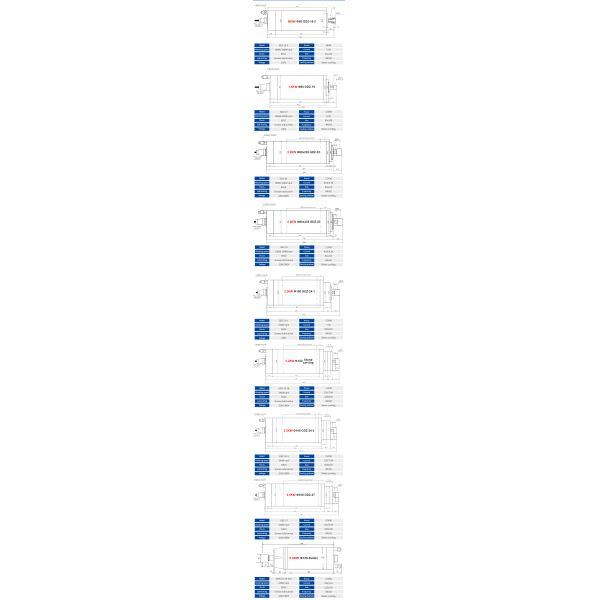

Power Dimensions Φm/m Rev(rpm) Voltage (V) Frequency(HZ) Bearings Type
0.8kw Φ65*195 24000 220V 1phase 400 7002C/P4*1
7000C/P4*1
1.5kw Φ80*208 24000 220V 1phase 400 7002C/P4*3
2.2kw Φ80*213 24000 220V 1phase 400 7005C/P4*2
7002C/P4*1
3.2kw Φ100*250 24000 220V 1phase/380V 3phase 400 7005CETA/P4*2
7003CETA/P4*2
4.5kw Φ100*260 24000 220V 1phase/380V 3phase 400 7005CETA/P4*2
7003CETA/P4*2
5.5kw Φ125*300 24000 380V 3phase 400 7005CETA/P4*2
7003CETA/P4*2

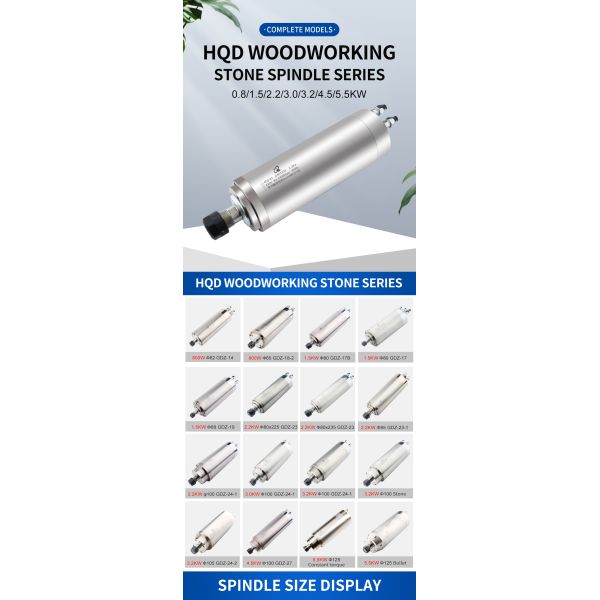

1. Full Power Coverage & Multi-model Adaptation for All Scenarios

The power range is arranged in steps from 0.8KW to 5.5KW to meet different processing load requirements; fuselage sizes, chuck specifications and mounting position depths are distinguished in multiple dimensions, with classified designs for woodworking general models and stone special models. It can be accurately matched with various CNC processing equipment such as woodworking engraving, stone carving, advertising cutting and light metal milling, and can be adapted without additional modification.

2. High-speed Stable Operation, Dual Advantages of Processing Precision & Efficiency

The whole series can realize continuous high-speed operation at 18000-24000rpm with 400HZ high-frequency drive. Combined with constant torque design, there is no jitter or low runout during high-speed processing, which effectively ensures the finish and dimensional accuracy of the processing surface; the direct drive structure cancels the traditional transmission link, realizing lossless power transmission and greatly improving the processing efficiency of engraving and cutting.

3. Professional Water-cooled Heat Dissipation, Long-term Stability & Durability

Adopting a special heat dissipation design with double water ports for water cooling, the heat dissipation efficiency is several times higher than that of traditional air cooling, which can quickly take away the heat generated by the motor during operation and avoid performance attenuation and component loss caused by high temperature. Even under long-term high-load processing, the fuselage can keep running at low temperature, significantly extending the service life of the motor; the grease lubrication method requires no frequent maintenance, further reducing the use cost.

4. Wide Voltage Adaptation, Practical Industrial-grade Configuration

Mainstream models all support 220V/380V dual voltage switching, adapting to different power supply environments such as factories and workshops; high-specification four-core socket wiring is adopted for stable contact and anti-interference. Some models are additionally designed with air seal holes and exclusive clamping positions, which can effectively prevent dust from entering during stone processing and ensure firmer installation and fixation, meeting the stringent requirements of industrial continuous processing.

Hardness 3.2Kw Water Cooled Spindle 220V CNC Spindle Machine CE

Hardness 3.2Kw Water Cooled Spindle 220V CNC Spindle Machine CE

FAQ

1. who are we?
We are based in Shandong, China, start from 2014,sell to North America(5.00%), Eastern Europe(4.50%),Africa(3.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
spindle motor, stepper motor,cnc router drive, frequency inverter,cnc control system

4. why should you buy from us not from other suppliers?
We are professional CNC router parts wholesaler , experience more than 12 years We not only produce CNC parts also selling other famous brand CNC parts.
Just tell your needing, we will help you buy with factory price and quality.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
