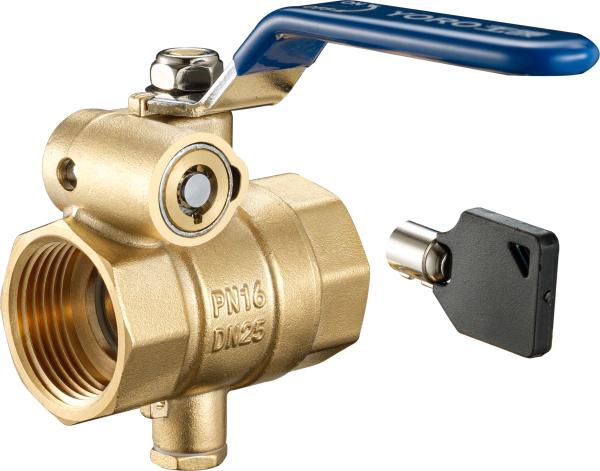

1702-DC Long Lever F x F Mechanical Key Lock Brass Shut-off Valve Ball Type Size DN20 DN25 DN32 with Bottom Meter Outlet
1702-DC Long Lever F x F Mechanical Key Lock Brass Shut-off Valve Ball Type Size DN20 DN25 DN32 with Bottom Meter Outlet
1702-DC Long Lever F x F Mechanical Key Lock Brass Shut-off Valve Ball Type Size DN20 DN25 DN32 with Bottom Meter Outlet
1702-DC Long Lever F x F Mechanical Key Lock Brass Shut-off Valve Ball Type Size DN20 DN25 DN32 with Bottom Meter Outlet
Specifications
Brand Name :
YORO
Model Number :
1702-DC
Certification :
ISO9001, ISO14001, ISO45001
Place of Origin :
Zhejiang, China
MOQ :
500 pcs for specific size
Price :
EX. WORKS or FOB Ningbo in US$ (To be Negotiated)
Payment Terms :
T/T before shipment
Supply Ability :
100000 pcs per month
Delivery Time :
25-30 working days
Packaging Details :
with a plastic bag inside for each valve, and several valves in a seaworthy export carton
Name :
Long Lever F x F Mechanical Key Lock Brass Shut-off Valve Ball Type with Bottom Meter Outlet
Sizes :
DN20(3/4"), DN25(1"), DN32(1.1/4")
Pipe Connections :
Equal Female Threads At both Ends G3/4", G1", G1.1/4"
Materials :
Easy Cutting Brass 57-3 Body & Bonnet & Stem, Polished & Chromed Brass Ball
Nominal Pressure :
1.6 MPa Max. Hydraulic
Working Temperature of Media :
-5℃ To 95℃
Outlet :
Bottom type, M10 x1 Female threaded
Workable Media :
Hot or Cold Water, or non-aggressive liquids
Test :
100% Leakage Testing air pressure 0.6-0.8 MPa
Description

1702-DC Long Lever F x F Mechanical Key Lock Brass Shut-off Valve Ball Type Size DN20 DN25 DN32 with Bottom Meter Outlet

Long Lever F x F Mechanical Key Lock Brass Shut-off Valve Ball Type with Bottom Meter Outlet

DN

20

25

32

Threaded Ends

G3/4" x G3/4"

G1" x G1"

G1-1/4" x G1-1/4"

1702-DC Long Lever F x F Mechanical Key Lock Brass Shut-off Valve Ball Type Size DN20 DN25 DN32 with Bottom Meter Outlet

Notes: When Valve is unlocked, the Lock unit must be taken out from the Lock housing and kept in a safe location.
