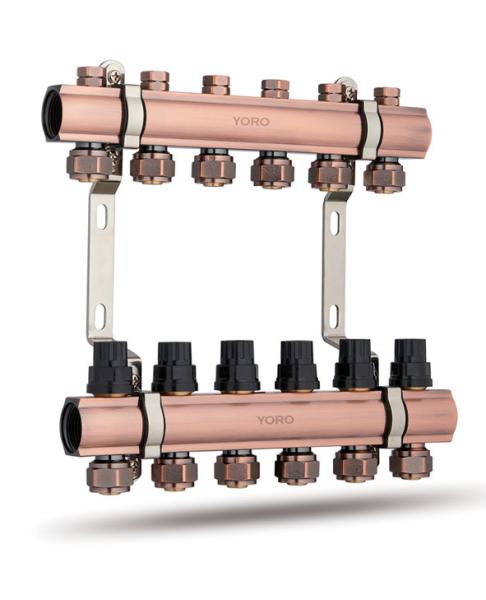

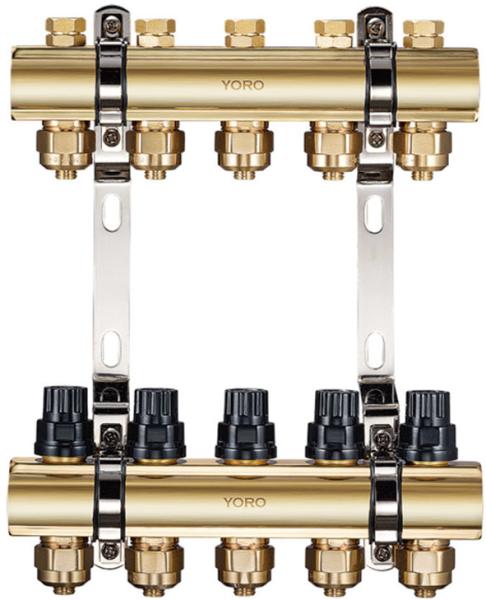

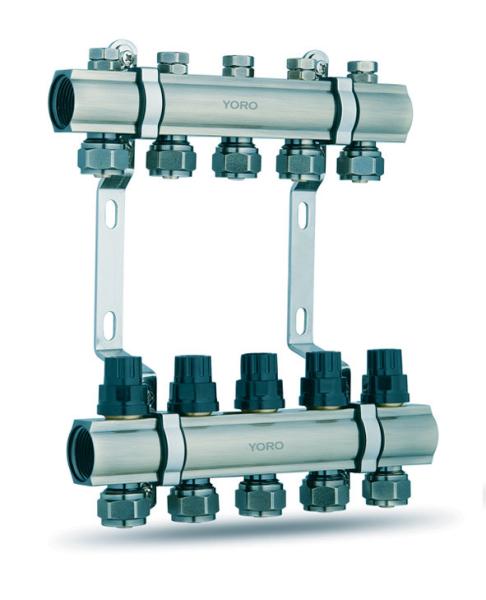

6100 Extruded Brass Water Distribution Manifolds With Concealed Supply Flowrate Regulator And Cover Cap For Each Branch
6100 Extruded Brass Water Distribution Manifolds With Concealed Supply Flowrate Regulator And Cover Cap For Each Branch
6100 Extruded Brass Water Distribution Manifolds With Concealed Supply Flowrate Regulator And Cover Cap For Each Branch
6100 Extruded Brass Water Distribution Manifolds With Concealed Supply Flowrate Regulator And Cover Cap For Each Branch
6100 Extruded Brass Water Distribution Manifolds With Concealed Supply Flowrate Regulator And Cover Cap For Each Branch
6100 Extruded Brass Water Distribution Manifolds With Concealed Supply Flowrate Regulator And Cover Cap For Each Branch
Specifications
Brand Name :
YORO
Model Number :
6100
Certification :
ISO9001, ISO14001, ISO45001Etc.
Place of Origin :
Zhejiang, China
MOQ :
200 sets
Price :
To be Negotiated
Payment Terms :
T/T
Supply Ability :
10000 pcs per month
Delivery Time :
25-30 working days
Packaging Details :
Each set in an inner box, couple sets in carton.
Name :
Extruded Brass Water Distribution Manifolds with Concealed Supply Flowrate Regulator and Cover Cap for each branch
Working Pressure :
8 Bar Max.
Workable Media :
5℃ to 95℃ Water
Body Material :
Extruded brass bar Polished
Main Connections :
G type Threads F1" x F1"
Branch Connections :
Al-PL pipe adapter 12x16 or 16x20
Vertical Spacing :
220mm
Branch spacing :
48mm
Wall Thickness :
2.9mm min.
Available Color :
Natural Brass, Chrome Plated, Red Bronze Plated
Description

Extruded Brass Water Distribution Manifolds with Concealed Supply Flowrate Regulator and Cover Cap for each branch

Branches

 2 3 4 5 6 7 8 9 10 11 12

Total Length(mm)

 108 156 204 252 300 348 396 444 492 540 588

6100 Extruded Brass Water Distribution Manifolds With Concealed Supply Flowrate Regulator And Cover Cap For Each Branch
