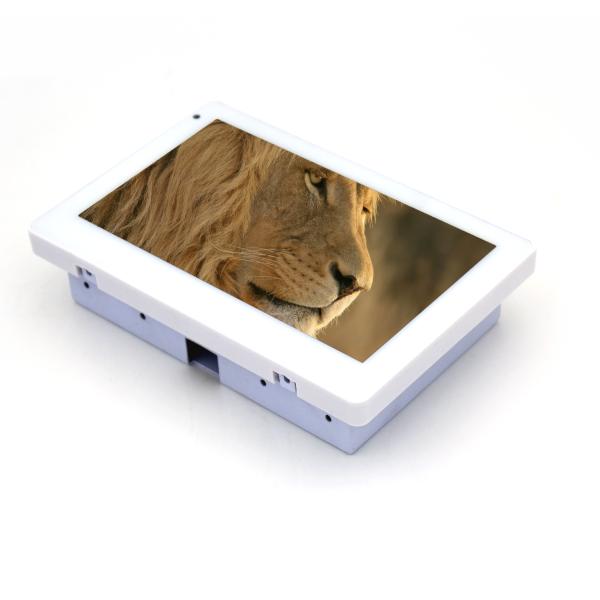

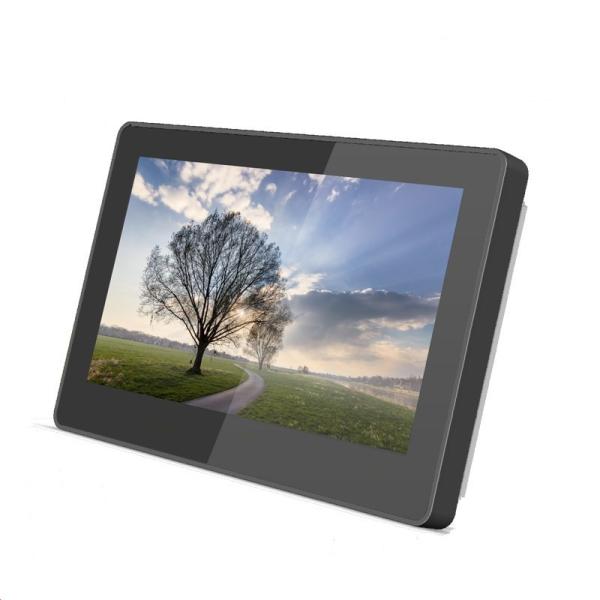

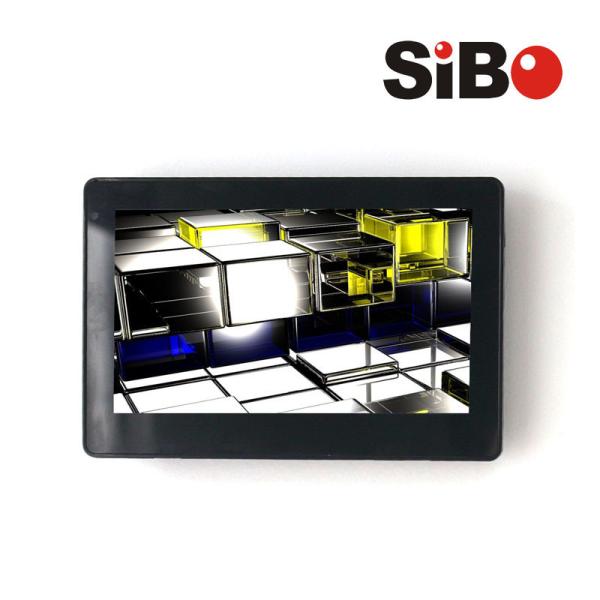

SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
Specifications
Brand Name :
SIBO
Model Number :
SIBO
Certification :
CE, FCC
Place of Origin :
Shenzhen
MOQ :
1 unit
Price :
based on your feature choices
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Delivery Time :
5-25 working days
Packaging Details :
10 pcs in one carton
Name :
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
Application :
Home Automation
Installation :
Inwall, Onwall
Power Supply :
DC IN 9V-36V/Power over Ethernet
Options :
RS232,RS485,GPIO,Temperature and Humidity Sensor, NFC
Description

SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation

This tablet has many optional features for your customized needs, 5 kinds of mounting bracket, power over ethernet, temperature&humidity sensor, gpio, serial port.


1. IPS screen
2. Embedded Design, Wall Mount
3. WIFI / 3G / LAN
4. RJ45

5. POE

6. HDMI

7. CVBS

8. Serial Port

9. NFC

SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation

SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation

For Smart home and control

  • IPS Screen (G+G glass)
  • Android OS
  • Inwall / Onwall version
  • Serial port , GPIO , Uart interface
  • No buttons design
  • Slim Body with 3 Brackets for wall mounting
  • Camera & Mic
Model Number Q896S
Hardware Specs Solution Allwinner Dual-Core Cortex™-A7 CPU
CPU ARM Cortex A7 Dual-Core, 1.2Ghz
Display 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
RAM 2GB
Nand Flash 8GB
Software Feature System Google Android 6.0.1
Video H.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
Audio Integrated 3W Amplifier (No Speakers, Only Speaker connector)
Language Support multi-languages
Interfaces Back Ethernet Interface(RJ45)
HDMI Out
USB Socket
CVBS IN
DC IN Power Terminal
UART, IO, 3W AMP OUT Available
Network WIFI+BLUETOOTH WIFI (802.11b/g/n), Bluetooth v2.1+EDR/Bluetooth 3.0/3.0+HS/4.0
LAN Port Ethernet RJ45
Power Supply DC IN DC 9V-24V
Boot Up Auto Boot Auto Boot Up When Power Supplies
Software Auto Run Web App


Notice: There is no any battery and buttons as normal Tablet PC , auto power on is available !

Builtin HDMI (standard ) jack, CVBS port , Standard RJ45 port, USB (standard) , Standard serial port (baud rate from 1200 to 115200)
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation

SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation

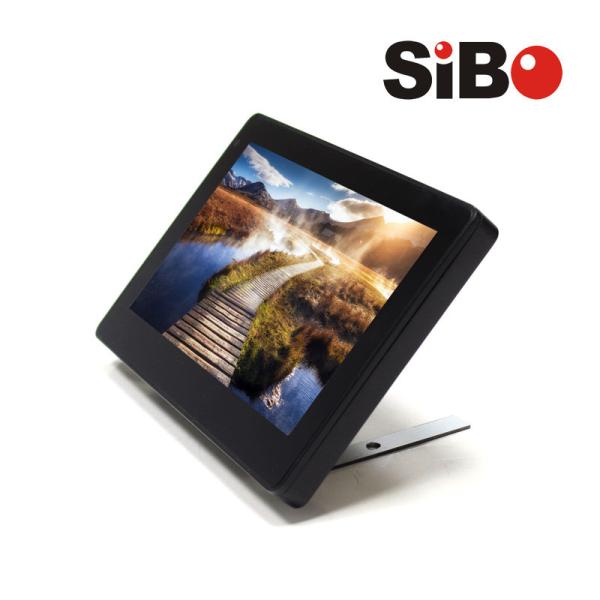

Desktop bracket and the mounting picture:
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
Flush mounting installation:
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation
On wall mounting:
SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation

SIBO 7 Inch Wall Mounted Android Touch Screen Tablet PC For Home Installation

Welcome the OEM orders for smart home , home automation applications...
