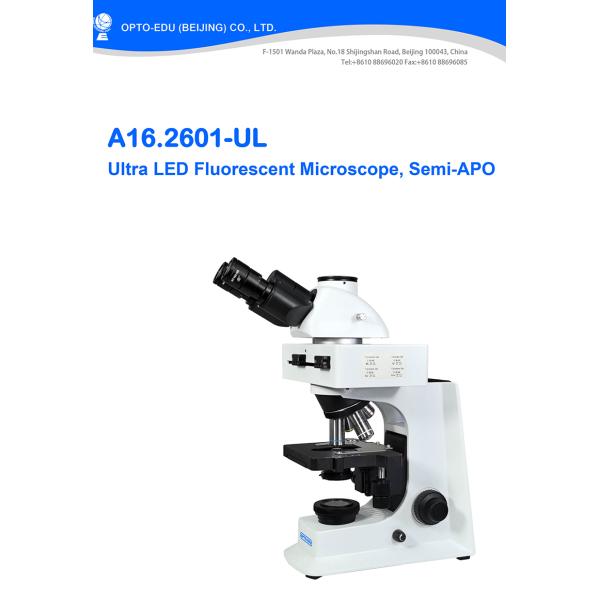

OPTO-EDU A16.2601-UL Fluorescence Microscopy 3W LED Illumination Systems Ultra LED Fluorescent Microscope
OPTO-EDU A16.2601-UL Fluorescence Microscopy 3W LED Illumination Systems Ultra LED Fluorescent Microscope
OPTO-EDU A16.2601-UL Fluorescence Microscopy 3W LED Illumination Systems Ultra LED Fluorescent Microscope
OPTO-EDU A16.2601-UL Fluorescence Microscopy 3W LED Illumination Systems Ultra LED Fluorescent Microscope
Specifications
Brand Name :
CNOEC, OPTO-EDU
Model Number :
A16.2601-UL
Certification :
CE|Rohs
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T, West Union, Paypal
Supply Ability :
5000 pcs/ Month
Delivery Time :
5~20 Days
Packaging Details :
Carton Packing, For Export Transportation
application :
Research|Learning
Drawtube :
Trinocular
Illumination :
3W-LED Illumination Systems
magnification :
40x - 1000x
Theory :
Fluorescence Microscope
Description
  • Ultra LED High Brightness Fluorescent Reflect Illumination Microscope
  • Semi-APO Infinity Plan Fluorescent Objective Available For High Quality Image
  • Creative 100x Water Objective Instead Of I00x Oil Objective For Easy Use Without Oil
  • High Rigidity Body Structure Design Supply High Steady And Easy Handle
  • Different Color Available To Customize Your Model!
OPTO-EDU A16.2601-UL Fluorescence Microscopy 3W LED Illumination Systems Ultra LED Fluorescent Microscope
OPTO-EDU A16.2601-UL Fluorescence Microscopy 3W LED Illumination Systems Ultra LED Fluorescent Microscope
OPTO-EDU A16.2601-UL Fluorescence Microscopy 3W LED Illumination Systems Ultra LED Fluorescent Microscope
OPTO-EDU A16.2601-UL Fluorescence Microscopy 3W LED Illumination Systems Ultra LED Fluorescent Microscope
OPTO-EDU A16.2601-UL Fluorescence Microscopy 3W LED Illumination Systems Ultra LED Fluorescent Microscope
OPTO-EDU A16.2601-UL Fluorescence Microscopy 3W LED Illumination Systems Ultra LED Fluorescent Microscope
Items A16.2601-UL LED Fluorescent Microscope Specification 　 Cata. No.

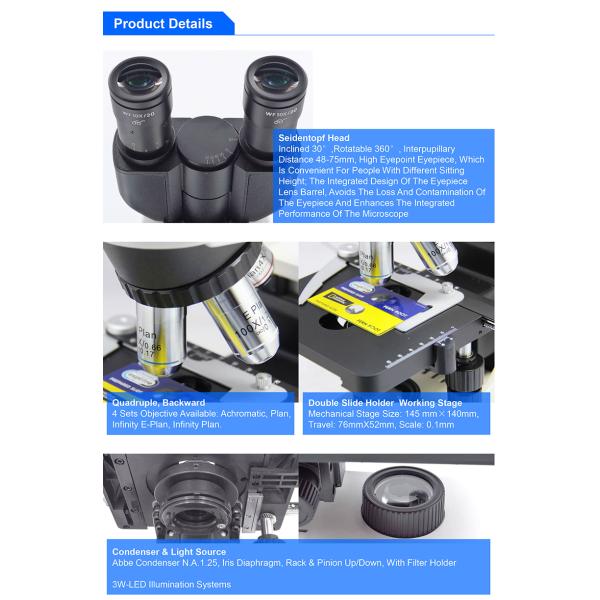

Head Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20:E80 ● A53.2621-T
Eyepiece WF10X/20mm (High Eyepoint) ●● A51.2602-1020
Nosepiece Quadruple, Backward ● A54.2610-N734
Quintuple, Backward ○ A54.2610-N735
Infinity
Plan Objective		 PLAN 4x/0.10,W.D.=12.1mm ● A52.2606-4
PLAN 10x/0.25,W.D.=4.64mm ● A52.2606-10
PLAN 40x/0.65(S),W.D.=0.65mm ● A52.2606-40
PLAN 100x/1.25(S, Oil),W.D.=0.12mm ● A52.2606-100
Infinity Plan
Semi-APO Fluorescent Objective		 UplanFLN 4x, N.A.0.16,W.D.=17.151mm ○ A5F.2611-4
UplanFLN 10x, N.A.0.30,W.D.=7.68mm ○ A5F.2611-10
UplanFLN 20x, N.A.0.50,W.D.=1.96mm ○ A5F.2611-20
UplanFLN 40x, N.A.0.75,W.D.=0.78mm ○ A5F.2611-40
UplanFLN 100x(Oil), N.A.1.30,W.D.=0.15mm ○ A5F.2611-100
Working Stage Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder ● A54.2601-S04
Rackless (Integrated) Stage, Size 140×135mm,
Travel Range 75×35mm, Double Slide Holder		 ○ A54.2601-S12
Focusing Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division ● 　
Condenser Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down ● A56.2614-C06b
Illumination 3W-LED Illumination Systems

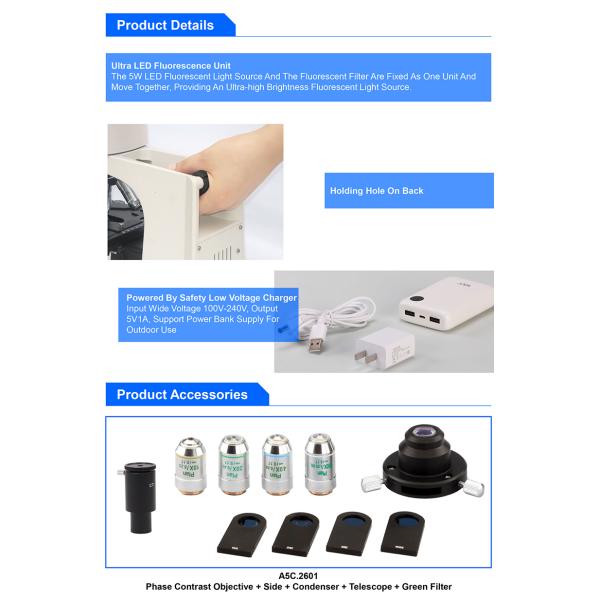

Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use		 ● A56.2650-3WLED
12V/20W Halogen Lamp ○ A56.2650-12V20WH
6V/30W Halogen Lamp ○ A56.2650-6V30WH
Field Diaphragm Upgrade To Kohler Illumnation ○ A56.2615-S
Filter Dia.45mm, Blue ○ A56.2616-45B
Dia.45mm, Green ○ A56.2616-45G
Dia.45mm, Yellow ○ A56.2616-45A
Dark Field Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective ○ A5D.2610-S
Polarizing Analyzer + Polarizer Set ○ A5P.2601-S
Phase Contrast Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter ○ A5C.2601-10
Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter ○ A5C.2601-20
Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter ○ A5C.2601-40
Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter ○ A5C.2601-100
Turret Phase Contrast Attachment

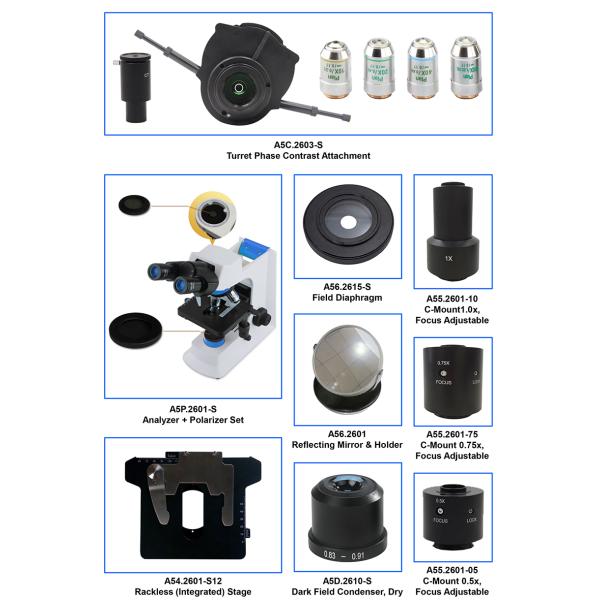

Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter		 ○ A5C.2603-S

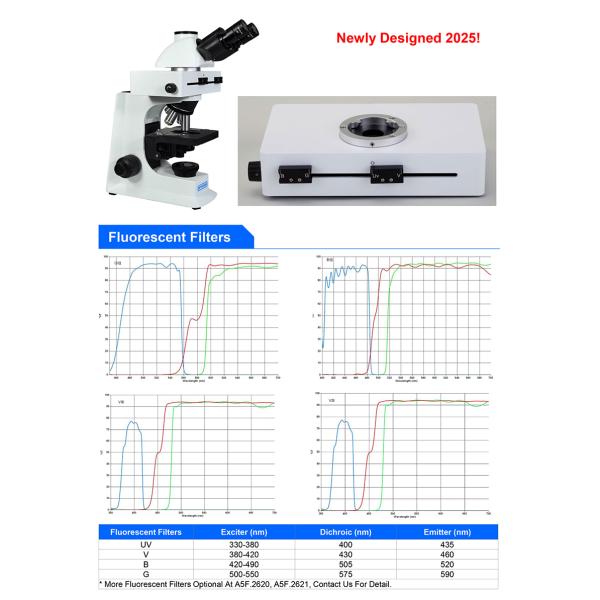

Fluorescence Newly Design 2025!
Ultra LED Inverted Fluorescent Microscope With
All-in-One Filter + 5W LED System
The LED Fluorescent Light Source And The Fluorescent Filter Are Fixed as One Unit And Move Together, Switch Easily And Providing An Ultra-high Brightness Fluorescent Light Source.

A16.2601-UL2 B,G China Fluorescent Filters
A16.2601-UL3 B,G,UV China Fluorescent Filters
A16.2601-UL4 B,G,U,UV China Fluorescent Filters		 ● A5F.2610-2
A5F.2610-3
A5F.2610-4
Adapter C-Mount 0.5x, Focus Adjustable ○ A55.2601-05
C-Mount 0.75x, Focus Adjustable ○ A55.2601-75
C-Mount1.0x, Focus Adjustable ○ A55.2601-10
Mirror Reflecting Mirror & Holder ○ A56.2601
Attachment Wire Winding Device ○ A50.2602-S

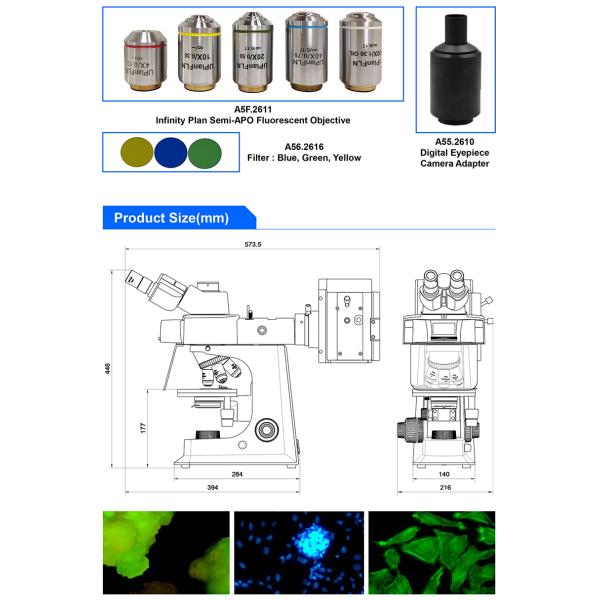

Package Microscope 55*38*29cm, 7.8kg, Fluorescent Unit 52*47*24cm, 5.0kg
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories
