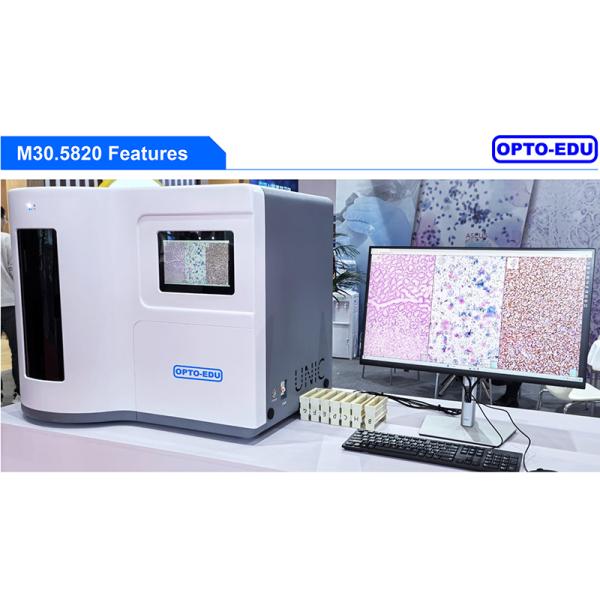

OPTO-EDU M30.5820 Full Auto Microscope Slide Scanner 60/120/240/480 Slides
OPTO-EDU M30.5820 Full Auto Microscope Slide Scanner 60/120/240/480 Slides
OPTO-EDU M30.5820 Full Auto Microscope Slide Scanner 60/120/240/480 Slides
OPTO-EDU M30.5820 Full Auto Microscope Slide Scanner 60/120/240/480 Slides
Specifications
Brand Name :
CNOEC, OPTO-EDU
Model Number :
M30.5820
Certification :
CE, Rohs
Place of Origin :
China
MOQ :
1 pc
Price :
FOB $1~1000, Depend on Order Quantity
Payment Terms :
T/T, West Union, Paypal
Supply Ability :
5000 pcs/ Month
Delivery Time :
5~20 Days
Packaging Details :
Carton Packing, For Export Transportation
Slide Capacity :
60pcs/120pcs/240pcs/480pcs standard pathology slides (75*25mm)
Camera :
5.0M Scientific research-grade large-area CMOS digital camera
Scanning Method :
High-speed continuous area scanning
Scanning Mode :
Fast, Accurate, 3D, Fusion mode
Repeat Position Accuracy :
X, Y axis ≤ 40nm, Z axis ≤ 25nm
Software :
Scan Software: iScanneX, Browser Software: iViewer
Description
  • 60/120/240/480 Standard pathology slides (75*25mm) Capacity
  • High Quality Plan Apochromatic Objective Lens APO20x N.A. 0.8, APO40x NA. 0.45
  • 5.0M Scientific Research-grade Large-area CMOS Digital Camera
  • Scanning Resolution 20x Scan ≤0.24um/pixel, 40x Scan ≤0.12um/pixel
  • Scanning Speed 15x15mm Area 20x Scan <35s, 40x Scan <50s
OPTO-EDU M30.5820 Full Auto Microscope Slide Scanner 60/120/240/480 Slides
OPTO-EDU M30.5820 Full Auto Microscope Slide Scanner 60/120/240/480 Slides
OPTO-EDU M30.5820 Full Auto Microscope Slide Scanner 60/120/240/480 Slides

▶ Ultra-high Quality

High-quality flat-field apochromatic object sharp scientific research-grade ultra-high-speed area array camera (Patented face scanning technology) Independently developed military-grade high-brightness full-range LED light source

High-speed and high-quality presentation of tissue and cell structure morphology

▶ High-speed Scanning

15.00mmx15.00mm scanning range

20x magnification mode, ≤35 seconds

40x magnification mode, ≤50 seconds

▶ Improved Efficiency

It can provide bright field fast scanning, and can also realize fluorescence, phase contrast, and polarization scanning by upgrading the reef equipment to meet different scientific research needs

▶ Slide Protection

Advanced machine vision technology

Adaptive slide travel recognition

Automatically monitor and prompt slide positioning and system abnormalities

▶ Dual Screen Dual Control

The machine body is integrated with a touch screen display, which can independently control slide scanning and slide browsing, without the need for external auxiliary equipment, realizing dual-screen dual control of the equipment

▶ Ultra-high Stability

Technology accumulation creates a record of continuous scanning of 5,000 sheets without error

Single scan success rate is greater than 95%

▶ Flexible Throughput

60 pieces/120 pieces/240 pieces/480 pieces of various flux specifications are flexible to choose from to meet different construction needs

Support original machine flux upgrade to calmly face future development

▶ One-click Sharing

The scanned digital slides can be shared with any user by generating a QR code with one click. Users can browse and edit the slides through smart terminals, which is convenient and fast.
OPTO-EDU M30.5820 Full Auto Microscope Slide Scanner 60/120/240/480 Slides
OPTO-EDU M30.5820 Full Auto Microscope Slide Scanner 60/120/240/480 Slides

● slide Loading Recognition Function

Automatically skip the loading point without slides during continuous scanning

● slide Label Recognition Function

Automatically recognize the symbol, barcode or QR code information in the slide label

● Organization Outline Recognition Function

Intelligently recognize the outline of the tissue area in the slide, and skip the non-organization area during the scanning process

● slide Stroke Recognition Function

Using machine vision technology, it can automatically monitor and prompt the abnormality of the slide during the scanning process to avoid fragmentation and card

● Tissue or cell quantitative analysis software

● Mitophagy technology software

● Immunohistochemistry quantitative analysis software

● Digital slide management and browsing software

● Remote consultation software
OPTO-EDU M30.5820 Full Auto Microscope Slide Scanner 60/120/240/480 Slides
M30.5820 High Throughput Digital slide Scanning Analysis System Specification
Slide Capacity 60pcs/120pcs/240pcs/480pcs standard pathology slides (75*25mm)
Objective APO 20x N.A.0.8 high quality plan apochromatic objective lens
APO 40x N.A.0.45 high quality plan apochromatic objective lens
Camera 5.0M Scientific research-grade large-area CMOS digital camera
Scanning Method High-speed continuous area scanning
Scanning Speed 15x15mm scanning area:
-20x scan, <35 seconds
-40x scan, <50 seconds
Scanning Resolution 20x scan ≤ 0.24um/pixel
40x scan ≤ 0.12um/pixel
Scanning Mode Fast, Accurate, 3D, Fusion mode
Repeat Position Accuracy X, Y axis ≤ 40nm, Z axis ≤ 25nm
Multi-layer Scanning Function Z-axis automatic focusing, multi-layer scanning, each layer image can be browsed and saved
Fusion Scanning Function Applying depth of field fusion technology to obtain ultra-depth scanning images
Intelligent Recognition Automatic identification of slide type: HE/IHC/Cyto
Automatic identification of label symbols, barcodes and QR codes
Software Scan Software: iScanneX, Browser Software: iViewer
Product Size 896mmx635.5mmx715mm
OPTO-EDU M30.5820 Full Auto Microscope Slide Scanner 60/120/240/480 Slides

It provides solutions for a variety of applied research and can be widely used in scientific research, teaching, biochips, cancer and tumor research, toxicology and drug safety evaluation, forensic pathology and other fields.
