OPTO-EDU A36.3602 Professional 110X LCD Digital Measuring Microscope 11.6 inch 5MP CMOS Camera Stereo Video Microscope
OPTO-EDU A36.3602 Professional 110X LCD Digital Measuring Microscope 11.6 inch 5MP CMOS Camera Stereo Video Microscope
Specifications
Brand Name :
CNOEC, OPTO-EDU
Payment Terms :
T/T,West Union,Paypal
Certification :
CE, Rohs
Supply Ability :
5000 pcs/ Month
MOQ :
1 pc
Packaging Details :
Carton Packing, For Export Transportation
Place of Origin :
China
Price :
FOB $1~1000, Depend on Order Quantity
Delivery Time :
5~20 Days
Model Number :
A36.3602
Description

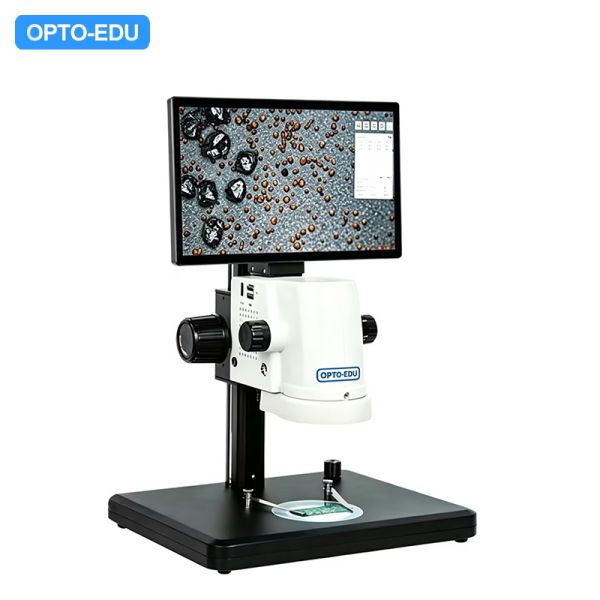

OPTO-EDU A36.3602 Professional 110X LCD Digital Measuring Microscope
11.6 inch 5MP CMOS Camera Stereo Video Microscope
The A36.3602 LCD stereo microscope integrates a zoom optical module with high-definition camera, designed for convenient use in narrow and small workspaces. Featuring ergonomic internal optical corner design and adjustable display screen angle, it allows operators to view the display comfortably. Through the HDMI HD interface, it can connect to an additional display simultaneously.
A36.3602 LCD Digital Stereo Microscope Specifications
Magnification17X-110X
Objectives0.75X-4.5X stereo zoom, zoom ratio 6.4:1
Display11.6 Inch, 1920H*1080V, IPS screen, detachable
Imaging sensor1/2.8 Inch SONY CMOS
Real-time image frame rate60fps@1920*1080
Photograph5 Mega-pixel
Recording45fps@1920*1080
Output InterfaceHDMI
Input InterfaceDouble USB2.0
Camera ParametersExposure, White-balance, Gain, Gamma, Brightness, Contrast, Hue, Saturation, Gray
OSD OperationMouse
Storage FunctionSnap, Record, USB Storage

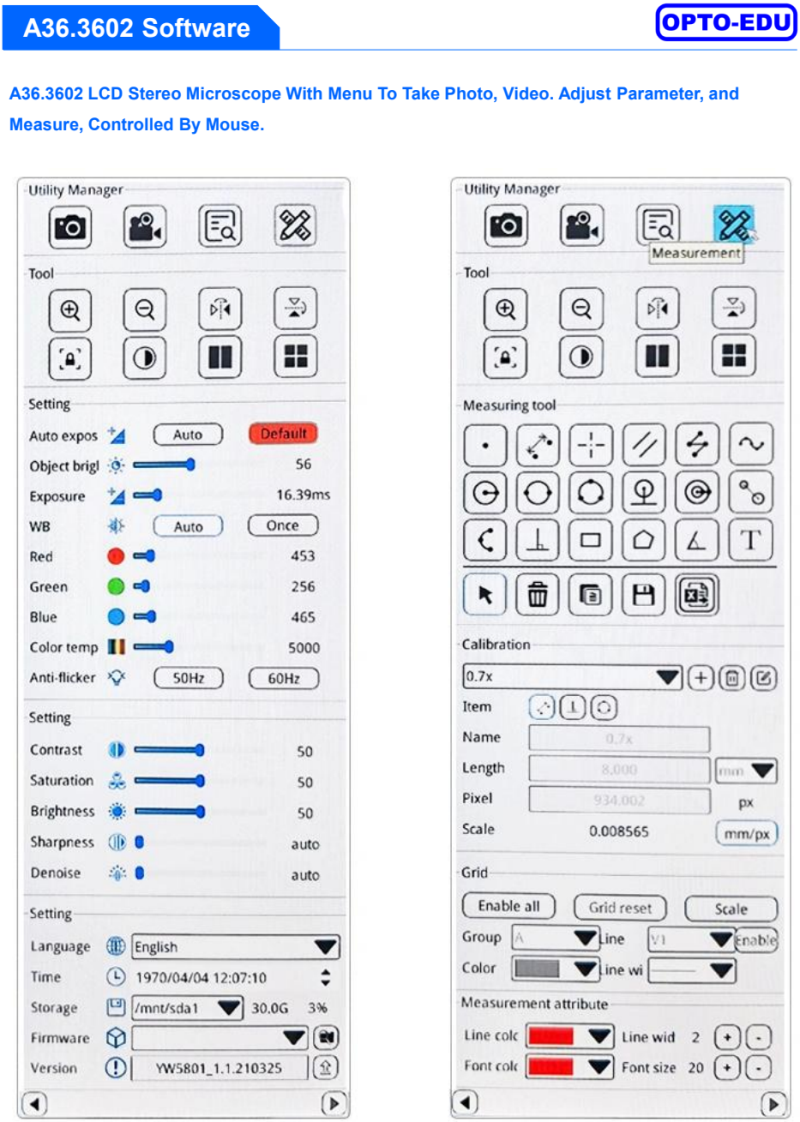

MeasurementPoint, Line, Parallel lines, Broken lines, Angle, Diameter circle, Radius circle, Three-point circle, Distance from circle to line, Concentric circles, Double circle, Vertical line, Arbitrary line, Polygon, Arc, Mark, Screenshot, Table data export, Calibration, Parameter Settings
Other FunctionsFlip horizontally, Flip vertically, Freeze
Scale Ruler3 kinds, customizable colors, line widths, display switches
Grid Lines8 group, customizable colors, line widths, display switches
LanguagesSimplified Chinese, Traditional Chinese, English, French, Russian, Japanese, Italian, German
Auxiliary Lens0.5x, 2.0x
Light Source56-LED ring light, brightness adjustable
BaseVarious bases available according to customer requirements
OPTO-EDU A36.3602 Professional 110X LCD Digital Measuring Microscope 11.6 inch 5MP CMOS Camera Stereo Video Microscope
Microscope Optical Data Sheet
Objective Standard Auxiliary 0.5X Auxiliary 2X
W.D. 100mm 165mm 30mm
11.6'' Magnification 17.2x-110.5x 8.6x-55.2x 34.4x-221x
View Field 18.5x10.5-2.8x1.5 37.5x21-5.5x3.0 9.5x5.5-1.5x0.7
OPTO-EDU A36.3602 Professional 110X LCD Digital Measuring Microscope 11.6 inch 5MP CMOS Camera Stereo Video Microscope
