Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen
Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen
Specifications
Touchscreen :
14 Functions Foot Switch
Control :
14 Functions Foot Switch
Head :
Dual Heads For Two People Operation, Opposite In 45°
Magnification :
4.5x~27.3x Continuous Zoom
View Field :
Dia.50mm, 32mm, 20mm, 12mm, 8mm
Brand Name :
CNOEC, OPTO-EDU
Model Number :
A41.1935
Certification :
CE,
Place of Origin :
China
MOQ :
1 pc
Price :
FOB $1~1000, Depend on Order Quantity
Payment Terms :
T/T,West Union,Paypal
Supply Ability :
5000 pcs/ Month
Delivery Time :
5~20 Days
Packaging Details :
Carton Packing, For Export Transportation
Focus :
Motorized Focus, Range +/-30mm, Speed 33s/Full Distance
Assistant Obj. :
F=200mm
Eyepiece :
12.5X
Illumination :
2 Coaxial LED
Main Objective :
F=200mm, Optional F=175mm, 250mm, 300mm, 350mm, 400mm, 450mm
Description
Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen
Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen
Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen
Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen
Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen

● LED lamps exchangeable

● Macular protector can protect Retina

● Depth regulator to increase field depth of field of view

● Magnetic brakes

● Main binocular tube and assistant tube use independent optical system , the same luminance , the same magnification, motorized continuous change 4-27 times

● 0°~200°Variable angle binocular tube, Alleviating long-term fatigue
Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen

Size

138*50*170mm

Weight

0.5kg

Storage And Operating Conditions

Temperature:+10℃ To +40℃

Sterility

Sterilize Before Use

Materials

Surgical Grade Materials

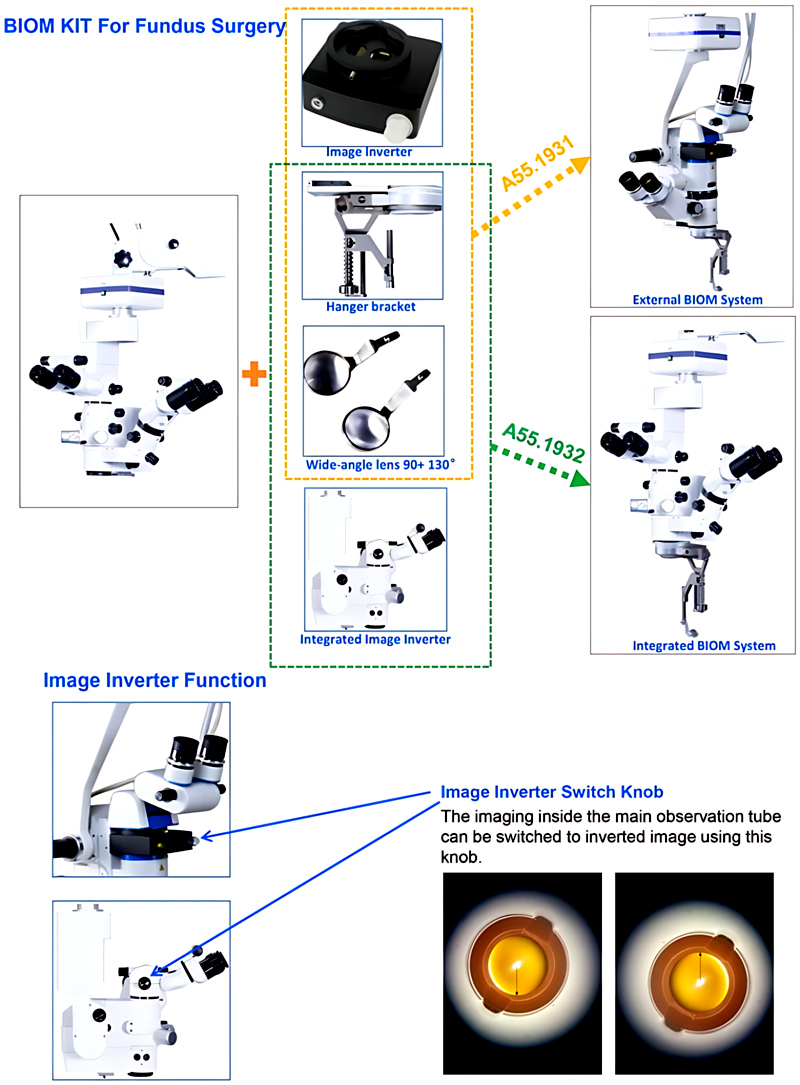

Condenser Lens Assembly

Manual

Lens Positioning Unit

Rotational Assembly

Lenses

130°

90°

Mounting Kits

Zeiss

Leica

Topcon

Takagi

CORDER
Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen

Zoom adjustment/ Focus adjustment brightness adjustment / Pitch angle display
Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen

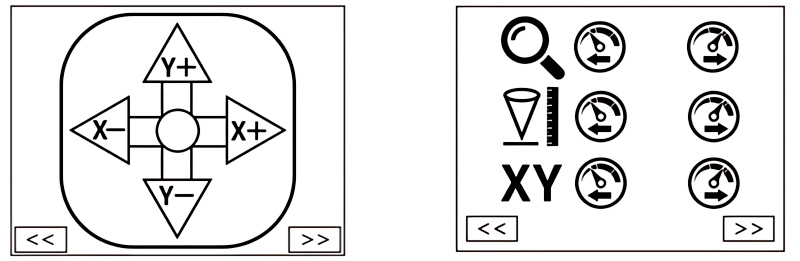

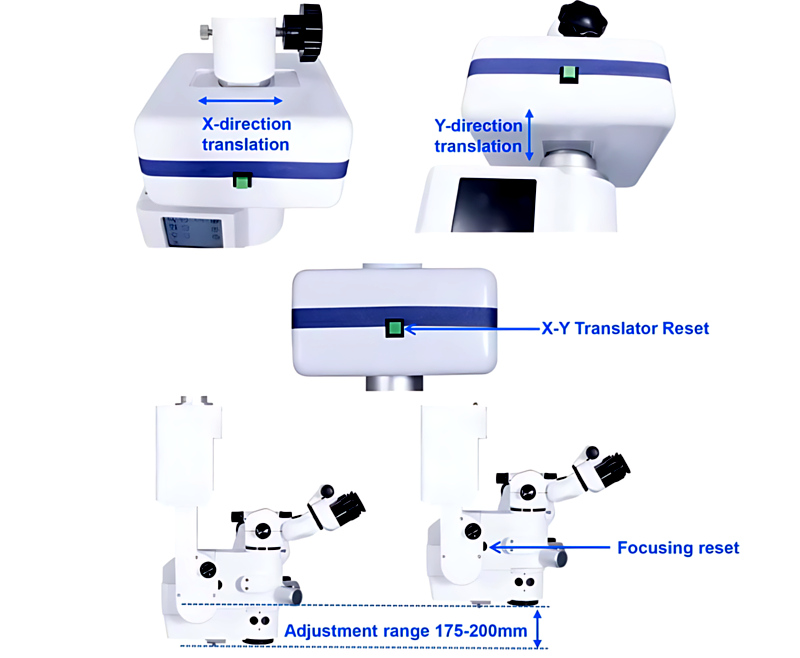

X-Y translational adjustment

Zoom speed adjustment /focusing speed adjustment/X-Y translation speed adjustment
Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen

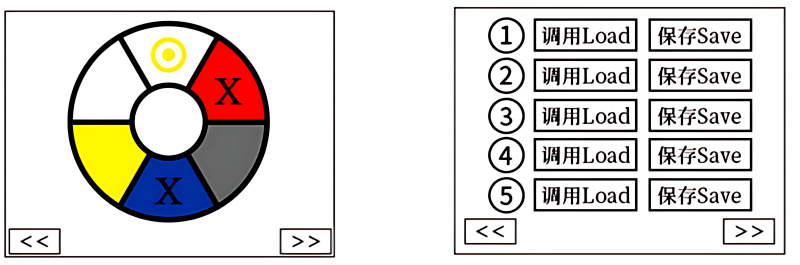

Filter switching touch control

User Information Call and Save Interface

Foot pedal 14 function customization setting interface
Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen
Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen
Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen

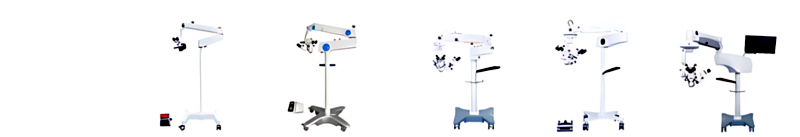

A41.1930, A41.1931, A41.1934, A41.1935, A41.1936 Surgical Operation Microscope

A41.1930 Operating Microscope is a basic Operation Microscope with 3 steps magnification.

A41.1931 is a very practical version , with 6 functions foot switch to control motorized X/Y move, Z focus and 5 steps magnification.

A41.1934 comes fitted with a integrated camera and an individual LED light source to deliver well-lit imaging at all times.

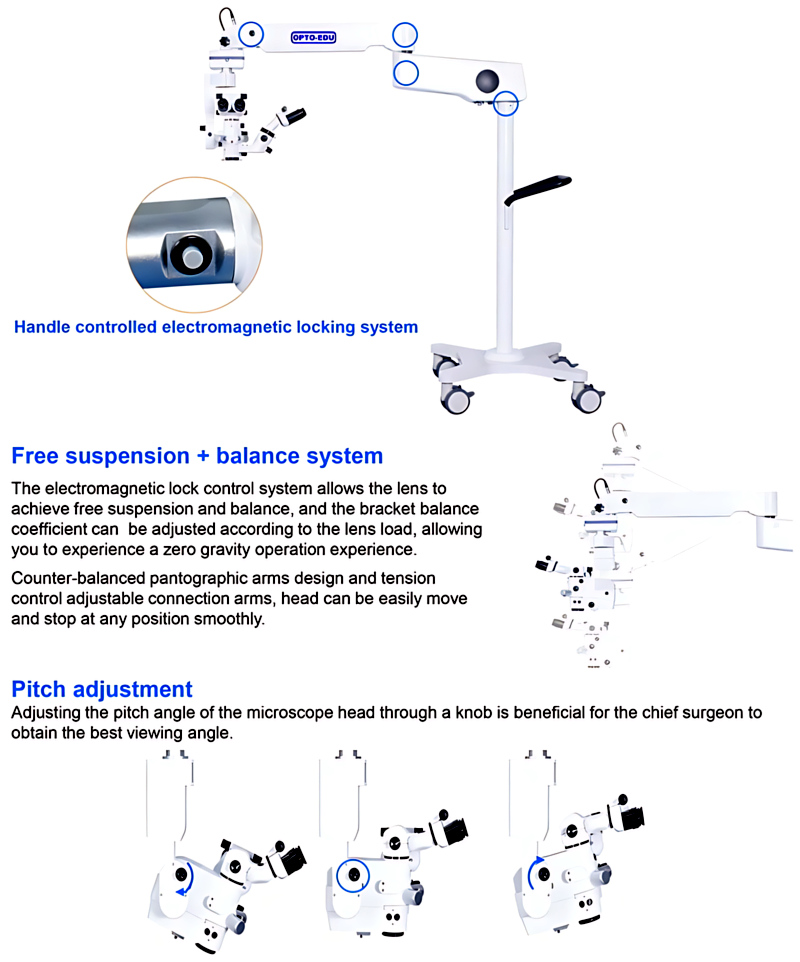

A41.1935 is our flagship model, upgraded with three electromagnetic lock assemblies, continuously variable zoom main lens and a integrated camera, 4-inch screen, 3 sets of electromagnetic locks

A41.1936 is the highest model in this series, with motorized zoom 4.5x~27.3x objective, dual Xenon light 100000 lux, 12 functions foot switch to control motorized X/Y move, Z focus & Zoom,4K camera integrated BIOM system, 4 sets of electromagnetic locks

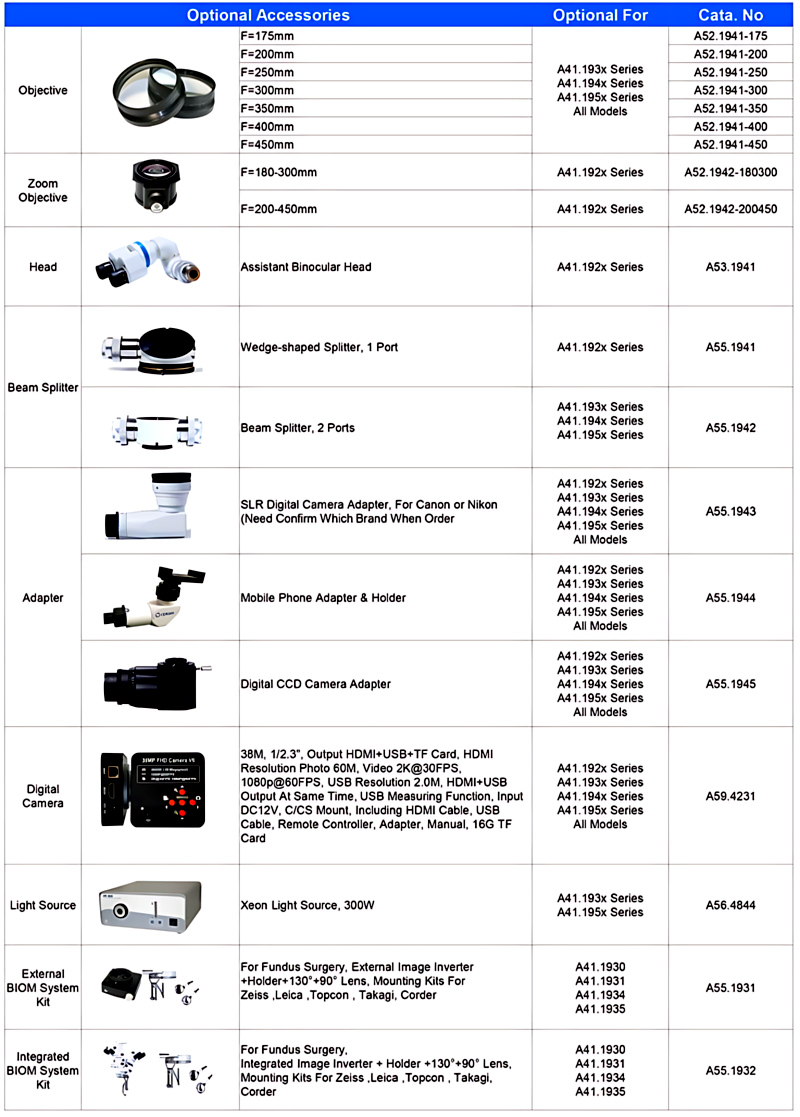

All 5 models can upgrade with optional beam splitter, SLR camera adapter, phone holder, CCD adapter for digital camera, for sharing real time image to LCD monitor, mobile phone or computer.

Features:

—Dual Head 45° Opposite, With Red Reflection & Macular Protector, For Ophthalmology

—Eyepiece 12.5x, 3 Steps Manual Zoom 6x10x16x, 5 Steps Manual Zoom 4x 6x10x16x 24x, or Continuous Zoom 4.5x~27.3x

—Objective F=200mm, 2nd Objective F=125mm, LED, Max Brightness 60000 Lux to 100000 Lux

—2 Functions, 12 Functions, 14 Functions Foot Switch, Control X/Y Movie, Z Focus, Zoom

—Four Wheels Stand Swing Angle of Carry Arm 0~300°, Height From Objective to Floor 800mm
Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen

　

A41.1930

A41.1931

A41.1934

A41.1935

A41.1936

Main Usage

——

With Red Reflection & Macular Protector, For Ophthalmology

Eyepiece

WF12.5x

Head

Single Head

Dual Heads For Two People Operation, Opposite In 45°

Interpupillary Distance 55~75mm, Eyetube Diopter Adjustable ±6D

Main Head

Inclined 45°,Optionl 0~200°

 Inclined 0~200° Inclined 0~200° Inclined 0~200° Inclined 0~200°

Magnification

3 Steps 6x,10x,16x

5 Steps 4x,6x,10x,16x,24x

4.5x~27.3x Continuous Zoom

View Field

Dia.41.77mm, 25.06mm, 15.66mm

Dia.50mm, 32mm, 20mm, 12mm, 8mm

Dia.44~7.7mm

Dia.45~7.5mm

Dia.49.4~8.2mm

Zoom Body

——

——

1:6 Motorized Continuous Zoom, Parallel Light System
Assistant Head

——

180° Rotatable

Magnification

——

3 Steps 6x, 10x, 16x

5 Steps 4x,6x,10x,16x,24x

5 Steps 4x,6x,10x,16x,24x

5 Steps 4x,6x,10x,16x,24x

View Field

——

Dia.34mm, 20mm, 13mm

Dia.50mm, 32mm, 20mm, 12mm, 8mm

Dia.50mm, 32mm, 20mm, 12mm, 8mm

Dia.50mm, 32mm, 20mm, 12mm, 8mm

Main Objective

F=200mm, Optional F=175mm, 250mm, 300mm, 350mm, 400mm, 450mm

Assistant Obj.

F=200mm

Focus

Motorized Focus, Range +/15mm, Speed 33s/Full Distance

Motorized Focus, Range +/-25mm, Speed 33s/Full Distance

Motorized Focus, Range +/-30mm, Speed 33s/Full Distance

Motorized Focus, Range +/-30mm, Speed 33s/Full Distance

Motorized Focus, Range +/-40mm, Speed 33s/Full Distance

EM Lock

——

——

——

3 Sets

4 Sets

Touchscreen

——

——

4'' Touchscreen

4'' Touchscreen

7'' Touchscreen

Control

2 Functions Foot Switch

2 Functions Foot Switch

14 Functions Foot Switch

14 Functions Foot Switch

12 Functions Foot Switch

Control Z Focus

Control Z Focus

Control X/Y Move, Z Focus, Zoom

Control X/Y Move, Z Focus, Zoom

Control X/Y/Z Move, Z Focus, Zoom

Stand

Four Wheels Moving Stand

Max Extended Length 1100mm

Max Extended Length 1100mm

Max Extended Length 1200mm

Max Extended Length 1508mm

Max Extended Length 1815mm

Max Rotatable Swing Angle of Arm 0~300°

Distance Between Objective And Ground Surface 800mm~1250mm

Distance Between Objective And Ground Surface 800mm~1250mm

Distance Between Objective And Ground Surface 800mm~1250mm

Distance Between Objective And Ground Surface 813mm~1573mm

Distance Between Objective And Ground Surface 690mm~1452mm

Illumination

1 Coaxial LED

1 Coaxial LED

2 Coaxial LED

2 Coaxial LED

2 Coaxial 180W Xenon

Light Spot Dia.70mm, Intensity 60000 Lux

Light Spot Dia.50mm, Intensity 60000 Lux

Light Spot Dia.50mm, Intensity 60000 Lux

Light Spot Dia.50mm, Intensity 70000 Lux

Light Spot Dia.50mm, Intensity 100000 Lux

Red Reflection

Non-adjustable

Adjustable ±2°

Adjustable ±2°

Adjustable ±2°

Adjustable ±2°

Filter

Heat Absorber

Heat Absorber

Heat Absorber

Heat Absorber

Heat Absorber

Macular Protection

Macular Protection

Macular Protection

Macular Protection

Macular Protection

Green Filter

Green Filter

Green Filter

Green Filter

Green Filter

　

Blue Filter

Blue Filter

Blue Filter

Blue Filter

——

——

Yellow Filter

Yellow Filter

Yellow Filter

——

——

Gray Filter

Gray Filter

Gray Filter

Optional Cobalt Blue Filter

Optional Cobalt Blue Filter

Optional Cobalt Blue Filter

Optional Cobalt Blue Filter

Optional Cobalt Blue Filter

BIOM

Optional Integrated/External

Optional Integrated/External

Optional Integrated/External

Optional Integrated/External

Standard Integrated

Packing

2 Cartons

Total G.W 104Kg,

Volume 0.3CBM

3 Cartons

Total G.W 104Kg,

Volume 0.35CBM

4 Cartons

Total G.W 165 Kg

Volume 1.2CBM

1 Carton

Total G.W 350 Kg

Volume 2.7CBM

1 Carton

Total G.W 401 Kg

Volume 2.7CBM
Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen
Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen
Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen
Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen
Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen
