Specifications
Brand Name :
CNOEC, OPTO-EDU
Model Number :
A13.2604
Certification :
CE|Rohs
Place of Origin :
China
MOQ :
1 pc
Price :
FOB $1~1000, Depend on Order Quantity
Payment Terms :
T/T, West Union, Paypal
Supply Ability :
5000 pcs/ Month
Delivery Time :
5~20 Days
Packaging Details :
Carton Packing, For Export Transportation
application :
Research|Learning|Metallurgical
Drawtube :
Trinocular
Illumination :
Halogen Lamp
magnification :
50x - 1000x
Theory :
Metallurgical Optical Microscope
Description

Learning Infinity Plan Microscope Trinocular Compound Microscopes Rohs A13.2604

Description:

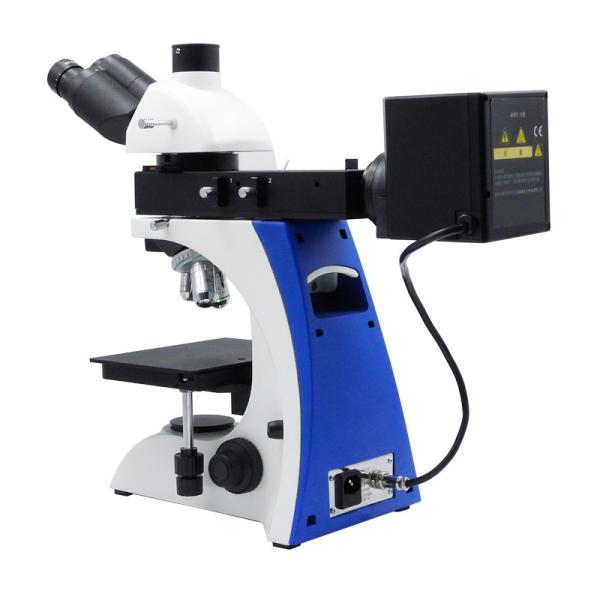

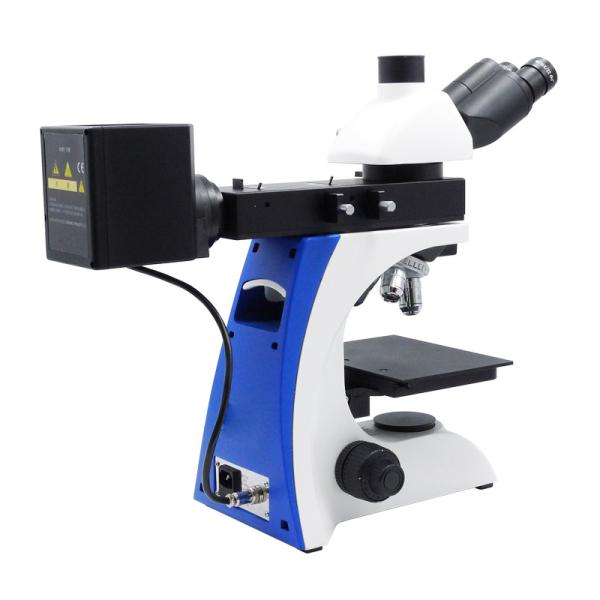

A13.2604 Metallurgical Microscope

--Infinity optical system for metallurgical observing
--Stress Free Long working distance objective
--Reflecting & transmitting light source available
--Polarizing Set Included
--Kohler illumination collector with field diaphragm

Optical Trinocular Head Metallurgical Optical Microscope High Precision A13.2604
Optical Trinocular Head Metallurgical Optical Microscope High Precision A13.2604
Optical Trinocular Head Metallurgical Optical Microscope High Precision A13.2604
Optical Trinocular Head Metallurgical Optical Microscope High Precision A13.2604

Optical Trinocular Head Metallurgical Optical Microscope High Precision A13.2604

Super Wide Field Eyepiece
SWF10x/22mm, Eyepiece Dia.30mm Diopter Adjustable
Optical Trinocular Head Metallurgical Optical Microscope High Precision A13.2604

The Eyepiece Tube Has Fix Screw
To Prevent Eyepiece Falling Damage During Move
Optical Trinocular Head Metallurgical Optical Microscope High Precision A13.2604

Trinocular Head Light Split Optional Between Switch E100:P0/E0:P100 And Fixed E80:P20
In Fixed Light Split, Eyepiece 80% : Photo 20% User Can View Image At Same Time In Both Path
In Switch Light Split, Eyepiece 100%:Photo 0% / Eyepiece 0%:Photo 100%, Camera Can Have 100% Light For Photo Capture.

Optical Trinocular Head Metallurgical Optical Microscope High Precision A13.2604
Optical Trinocular Head Metallurgical Optical Microscope High Precision A13.2604

Nosepiece
Quintuple, Backward, Metallurgical LWD Infinity Plan Objectives: 5x, 10x, 20x, 50x; Optional 80x, 100x
Optical Trinocular Head Metallurgical Optical Microscope High Precision A13.2604
Optical Trinocular Head Metallurgical Optical Microscope High Precision A13.2604

Condenser For A13.2604-B
Abbe N.A.1.25 , With Iris Diaphragm
Optical Trinocular Head Metallurgical Optical Microscope High Precision A13.2604

5W LED Light Source, Powered By Safety Low Voltage Charger
Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

Optical Trinocular Head Metallurgical Optical Microscope High Precision A13.2604
Optical Trinocular Head Metallurgical Optical Microscope High Precision A13.2604

Items A13.2604 Series Metallurgical Microscope,
Reflect/Transmit, BF/DF		 -A -AD -B -BD Cata. No.
Head Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm ● ● ● ● A53.2623-T
Eyepiece WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable ● ● ● ● A51.2621-1022
WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable,
With Micrometer X-0.1mm*180 Div / Y-Single Line		 ● ● ● ● A51.2622-1022
Nosepiece Quintuple, Backward ● 　 ● 　 A54.2610-N01
Quarduple, Backward, Special Design For BF/DF Observe 　 ● 　 ● A54.2610-N924
Metallurgical
LWD Infinity Plan Semi-APO
Objectives		 LMPLan FL 5x/0.15, W.D.=21.0mm ● 　 ● 　 A5M.2635-5
LMPLan FL 10x/0.3, W.D.=20.0mm ● 　 ● 　 A5M.263510
LMPLan FL 20x/0.40 W.D.=15.0mm ● 　 ● 　 A5M.2635-20
LMPLan FL 50x/0.55 W.D.=10.0mm ● 　 ● 　 A5M.2635-50
LMPLan FL 50x/0.75 W.D.=4.25mm ○ 　 ○ 　 A5M.2635-50a
LPL80x/0.80(S) W.D.=0.85mm ○ 　 ○ 　 A5M.2633-80
LMPLan FL 100x/0.90(S,Dry) W.D.=3.00mm ○ 　 ○ 　 A5M.2635-100
Metallurgical
LWD Infinity Plan BF/DF
Objectives		 M PLAN BD5x/0.13, W.D.=16.04mm 　 ● 　 ● A5M.2634-5
M PLAN BD10x/0.25 W.D.=18.48mm 　 ● 　 ● A5M.263410
M PLAN BD20x/0.40 W.D.=8.35mm 　 ● 　 ● A5M.2634-20
M PLAN BD50x/0.70(S) W.D.=1.95mm 　 ● 　 ● A5M.2634-50
Working Stage Double Layer Mechanical Size 200×150mm, Travel Range 77x52mm, Stage Quick Drop-Down Device For Extra 50mm Up/Down Range ● ● 　 A54.2601-S01T
Double Layer Mechanical Size 182×140mm,
Travel Range 77×52mm		 　 　 ● ● A54.2601-S01T3
Condenser Abbe N.A.1.25 , With Iris Diaphragm 　 　 ● ● A56.2614-C01d
Focusing Coaxial Coarse And Fine Focusing Knobs,
Travel Range: 25mm, Scale: 2µm		 ● ● ● ● 　
Illumination Reflect Light 5W LED
Koehler Illumination, Field Diaphragm
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use		 ● 　 ● 　 A56.2612-5W

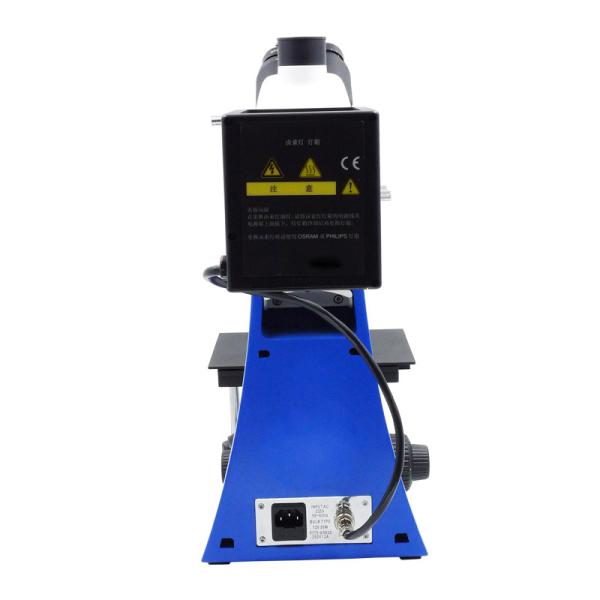

Reflect Light 12V50W Halogen
Koehler Illumination, Field Diaphragm, Wide Voltage 100V~240V		 ○ ● ○ ● A56.2613-12V50W
Transmit Light 5W LED
Koehler Illumination, Field Diaphragm
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use		 - - ● ● A56.2612-5W
Transmit Light 6V30W Halogen
Koehler Illumination, Field Diaphragm, Wide Voltage 100V~240V		 - - ○ ○ A56.26513-6V30W
Polarizing Analyzer + Polarizer For Reflect Light ● ● ● ● A5P.2603-BKR
Analyzer + Polarizer For Transmit Light - - ● ● A5P.2603-BKT
Filter Ground Glass Slider ● ● ● ● A56.2620-F
Blue Filter Switch Handle ● ● ● ● A56.2620-B
Adapter C-Mount 0.5x, Focus Adjustable ○ ○ ○ ○ A55.2601-05
C-Mount 0.75x, Focus Adjustable ○ ○ ○ ○ A55.2601-75
C-Mount1.0x, Focus Adjustable ○ ○ ○ ○ A55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm ○ ○ ○ ○ A55.2610
Package Carton Size 570*275*450mm, 1 Unit/Ctn
Weight Gross Weight 10.5kgs, Net Weigth 8.0kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
