Halogen Lamp 40X Inverted Optical Microscope Infinity Plan A14.1021
Halogen Lamp 40X Inverted Optical Microscope Infinity Plan A14.1021
Halogen Lamp 40X Inverted Optical Microscope Infinity Plan A14.1021
Halogen Lamp 40X Inverted Optical Microscope Infinity Plan A14.1021
Halogen Lamp 40X Inverted Optical Microscope Infinity Plan A14.1021
Halogen Lamp 40X Inverted Optical Microscope Infinity Plan A14.1021
Specifications
Place of Origin :
China
Brand Name :
CNOEC, OPTO-EDU
Certification :
CE
Model Number :
A14.1021
MOQ :
1 pc
Price :
FOB $1~1000, Depend on Order Quantity
Packaging Details :
Carton Packing, For Export Transportation
Delivery Time :
5~20 Days
Payment Terms :
T/T, West Union, Paypal
Supply Ability :
5000 pcs/ Month
Applications :
Research
Drawtube :
Trinocular
Illumination :
Halogen Lamp
max magnification :
400X
product name :
Inverted Optical Microscope
Description

Specifications:

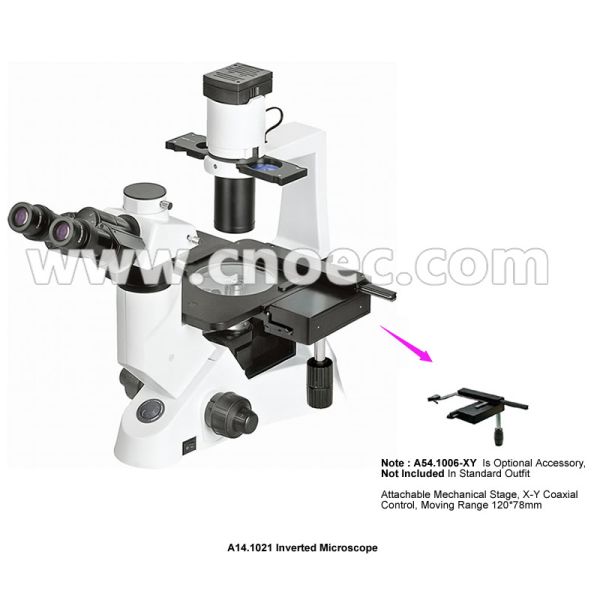

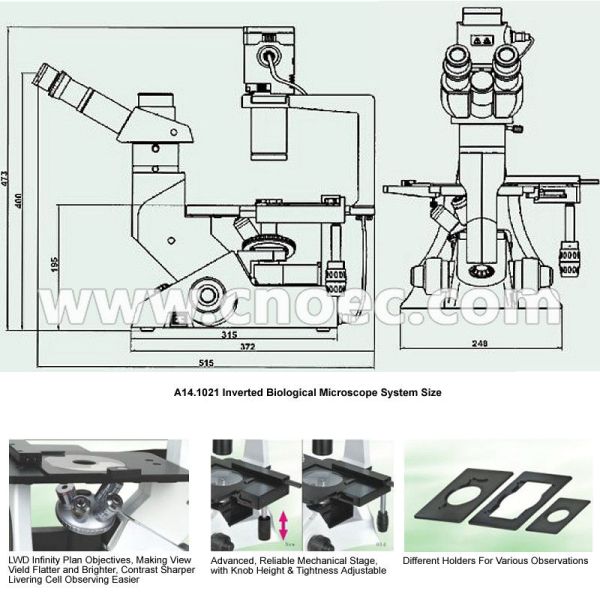

A14.1021 Inverted Biological Microscope
Viewing head
Trinocular head inclined at 30°, interpupillary 48-75mm
Eyepiece
 High-point ,extra wide field eyepiece EW10x/20mm
Objective
Infinity Plan LWD Objective 4X/0.1,WD18mm
40X/0.6,WD2.6mm(cover glass 1.2mm )
Infinity Plan Phase Contrast Objective PH10X/0.25,WD 10 mm
PH20X/0.4,WD 5.1mm
Nosepiece
 Quintuple Nosepiece

Condenser

 ELWD Conderser NA 0.3, LWD 72mm; (Without condersor LWD150mm)
Phase Contrast Phase Annulus Plate 10x-20, 40x phase annulus plate
Stage Plain stage 160x250mm mm
Glass insert
Auxiliary stage 70x180mm
Focusing

Coaxial Coarse and Fine Focusing, vertical objective movement. Coarse Range 37.7mm/per rotation, Division 0.2mm/per rotatio
Illumination
 Halogen Lamp 6V30W, Brightness Adjustable
Filter Blue, green and ground glass, Φ45mm
Optional Accessories
Item No.
Objective
Infinity Plan LWD Objective 10X/0.25,WD10mm A5M.1031-10
20X/0.4,WD5.1mm A5M.1031-20
Infinity Plan Phase Contrast Objective PH40X/0.6,WD 0.35mm (cover glass 1.2mm) A5C.1023-40
Centering Telescope Centering Telescope, tube ф30mm A5C.1011-30
Phase Annulus
Plate		 10x-20x, 40x phase annulus plate center adjustable A5C.1013-3
Stage

Attachable mechanical stage, X-Y coaxial controll, movement range:120x78mm

 A54.1006
Terasaki holder A54.1009
Φ38mm Petri dish holder A54.1010-38
Φ90mm Petri Dish Holder A54.1010-90
Φ54mm Slide glass holder A54.1011
Adapter
 Photo adapter A55.1001
C-mount video adapter 0.45x A55.1002-45
C-mount video adapter 1.0x A55.1002-10
