Specifications
Brand Name :
Mercury
Model Number :
LDM1025 LDM2025
Certification :
CE certification
Place of Origin :
China Zhengzhou
MOQ :
1 PCS
Price :
USD
Payment Terms :
T/T, Paypal
Supply Ability :
2000 PCS per month
Delivery Time :
Within 2 days
Packaging Details :
Carton
Color :
Blue
Description

Compact laser diameter gauge for cable wire pipe LDM1025 LDM2025

LDM1025/LDM2025 series intelligent Laser scan micrometer. Compact laser diameter gauge.
Compact laser diameter gauge for cable wire pipe LDM1025 LDM2025

Type Single Axis
laser diameter gauge		 Dual Axis
laser diameter gauge
Measuring head LDM1025 LDM2025
Controller DDC-7202 DDC-7202
Gate Size 25mm 25mm
Measuring Range 0.1 - 20mm 0.1 - 20mm
Min Measured Size 0.1mm 0.1mm
Laser Type

Visual Red

Semi-Conductorlaser 660mm

Visual Red

Semi-Conductorlaser 660mm
Accuracy ±0.5μm ±0.5μm
Repeatability 0.15μm 0.15μm
Data Collection speed 1400 Times/Sec 800 Times/Sec
Max Scan speed 82m/s 82m/s
Temperature -10 - 50℃ -10 - 50℃
Humidity 35% - 85% 35% - 85%
Net Weight 1.4Kg 3.0Kg
Dimension 263.5×80×45mm 187×240×50mm
Display Type 4.3 Inch Touch Screen 4.3 Inch Touch Screen
Units of Measurement mm or inch
Adjustable Resolution 0.0001mm - 0.1mm 0.00001 inch - 0.01 inch
Alarm Relay output 2 NO or NC Terminal
Analog Output +TOL,-Tol Output PIC Output
Control Voltage: 16 bit ± 10V DC
Current: 0 - 10 mA ( for Speed Control )
Communication Output RS485, Ethernet
Output port 2 Ways OC Output
Controller Dimension 190 × 86 × 270mm
Installation Size 164 × 82mm
Panel Installation Size 180 × 66mm
Features 1. Connect up to four sets of single-axis laser diameter gauge or 2-axis laser diameter gauge or two laser-CCD gauge.
2. Display functions: multi-axis measurements.
+Tol, -Tol value,etc.

Compact laser diameter gauge for cable wire pipe LDM1025 LDM2025

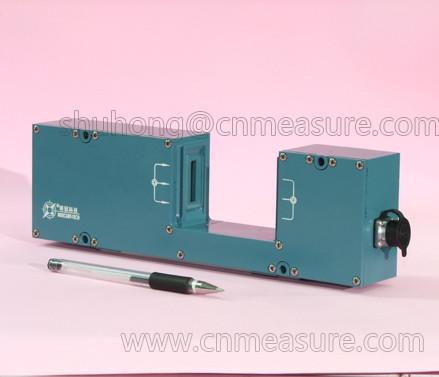

Photo 1. LDM1025 Single axis measuring head

Compact laser diameter gauge for cable wire pipe LDM1025 LDM2025

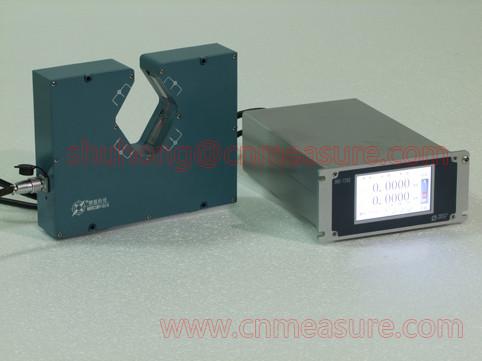

Photo 2. LDM2025 Dual axis Measuring head

Compact laser diameter gauge for cable wire pipe LDM1025 LDM2025

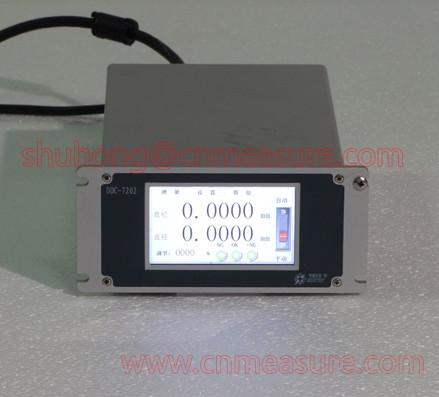

Photo 4. DDC-7202 display controller (4.3 Inch Touch Screen)

If you have any questions, please connect to us:
E-mail: shuhongma@cnmeasuring.com
Website: www.cnmeasure.com
TEL: +86-135 9803 3248
Address: NO.36 Hongsong Road, High-tech Zone, Zhengzhou, CHINA,
Manufacturer: Zhengzhou Mercury-tech Co.,Ltd.
