Portable Natural Gas Processing Equipment Natural Gas Dehydration Device
Portable Natural Gas Processing Equipment Natural Gas Dehydration Device
Specifications
Brand Name :
SCRT
Model Number :
HZ-TT010
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 per month
Delivery Time :
60 days
Packaging Details :
Wooden box
Medium :
Natural gas
Application :
natural gas
Warranty :
18 month
Product name :
Molecular sieve dehydration and dehydrocarbonation unit
after sales services :
Engineers available to service machinery overseas
Configuration :
stationary, portable
Dimension :
customized
Color :
customized
Description

Molecular sieve dehydration and dehydrocarbonation unit for natural gas

Application:

The molecular seive dehydration and dehydrocabonation unit is applied in removing the water and hydrocarbonation in natural gas.

Description:

The molecular seive dehydration and dehydrocabonation unit combine the process of natural gas freezing and molecular sieve dehydration. Design size 1.5 x 104 m3 / d, load range of 30% ~ 100%, after dehydration of natural gas water dew point in the booster station to a maximum of 2.5 MPa pressure, lower than the minimum transportation environment temperature 5 ℃ and above (molecular sieve enabled, the water dew point control in - 5 ℃)..

Water dew point: after dehydration of natural gas water dew point in the booster station to a maximum of 2.5 MPa pressure, lower than the minimum transportation environment temperature 5 ℃ and above.

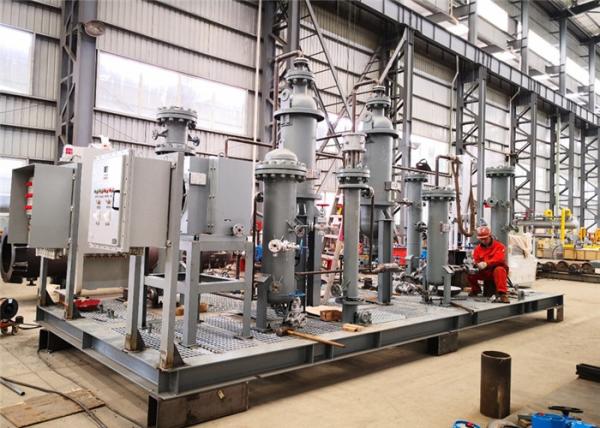

Portable Natural Gas Processing Equipment Natural Gas Dehydration Device

Technical parameters:

　 Inlet gas condition 　
1 Flow 1.5X104 Nm3/d
2 Inlet Pressure 1.6-2.5 MPa
3 Inlet Temperature 5-39 ℃
　 Outlet gas condition 　
4 Flow 0.7-1.5X104 Nm3/d
5 Outlet pressure 1.5-2.4 MPa
6 Outlet temperature 29℃
7 Water dew point <-5℃
