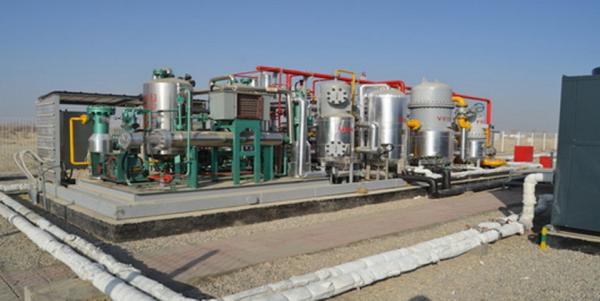

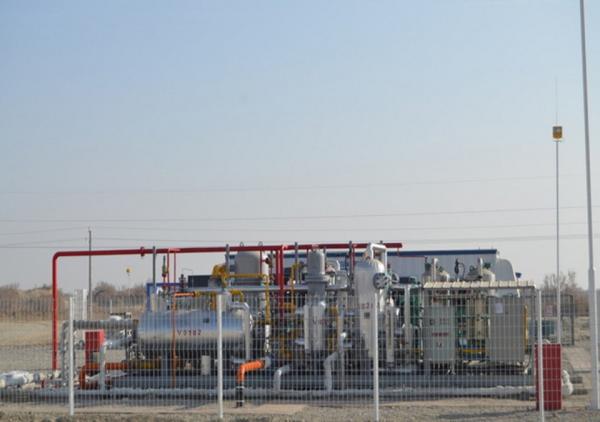

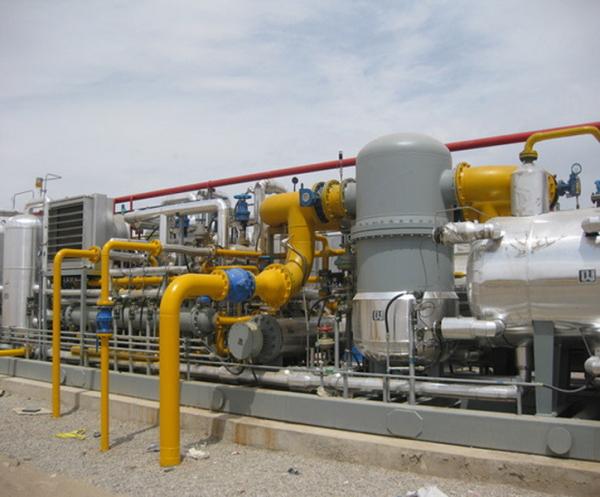

ASME 1.5X104 Nm3/D Light Hydrocarbon Recovery Unit
ASME 1.5X104 Nm3/D Light Hydrocarbon Recovery Unit
ASME 1.5X104 Nm3/D Light Hydrocarbon Recovery Unit
ASME 1.5X104 Nm3/D Light Hydrocarbon Recovery Unit
ASME 1.5X104 Nm3/D Light Hydrocarbon Recovery Unit
ASME 1.5X104 Nm3/D Light Hydrocarbon Recovery Unit
Specifications
Brand Name :
RT
Model Number :
NGLC 65-35/25
Certification :
ASME
Place of Origin :
China
MOQ :
1 set
Price :
100000 USD
Payment Terms :
L/C, T/T
Delivery Time :
80 days
Packaging Details :
Plywood case
Description

Customized high efficiency 1.5X104 Nm3/D NGL recovery unit Light hydrocarbon recovery unit

NGL recovery unit is a special device for recovering light hydrocarbon. The mature and reliable process technology is adopted to treat the gas and initial top gasoline of four sets of atmospheric and vacuum distillation units. The recovery rate of C3 and C4 light hydrocarbon is 10.69%.

Function of light hydrocarbon recovery unit: the function of light hydrocarbon recovery unit is to recover light hydrocarbon, which is also known as natural gas condensate (NGL), covering C2 ~ C6 + and containing condensate components (C3 ~ C5). Light hydrocarbon recovery is a process in which heavier components in natural gas than methane or ethane are recovered in liquid form.

On the one hand, the purpose is to control the hydrocarbon dew point of natural gas to achieve the quality index of commercial gas and avoid gas-liquid two-phase flow; on the other hand, the recovered liquid hydrocarbon has great economic value, which can be directly used as fuel or further separated into ethane, propane, butane or propane butane mixture (liquefied gas), light oil, etc., and can also be used as chemical raw materials.

Main parameter

Model no. NGLC 65-35/25 NGLC 625-35/15 NGLC 625-35/30 NGLC 625-35/60 NGLC 625-35/80 NGLC 625-35/140
Standard gas volume X104 Nm3/d 1.5 1.5 3.0 6.0 8.0 14.0
Device elasticity X104 Nm3/d 0.7-2.25 0.7-2.25 1.5-3.6 4.5-6.5 4.0-9.0 8.0-15.0
Process method

Alcohol injection and hydrocarbon collection

Dry gas (into pipe network)

Meet the requirements of pipeline transportation

 Dehydration and hydrocarbon collection
Product Type (mixed hydrocarbon + dry gas)

Alcohol injection and hydrocarbon collection

Dry gas (into pipe network)

Meet the requirements of pipeline transportation

 Dry gas (CNG / inlet pipe network)
Dry gas content

Alcohol injection and hydrocarbon collection

Dry gas (into pipe network)

Meet the requirements of pipeline transportation

 <1 ppm
C3 yield >80% (Improve efficiency according to user requirements)
Applicable ambient temperature -40-50 ℃
Inlet pressure 0.1-10.0 MPa
Dry gas outlet pressure 4.0-23.0 MPa
Design pressure of hydrocarbon mixing tank 2.5 MPa
Explosion-proof grade ExdIIBT4
The control mode PLC + upper computer
Skid sizes LXWXH: 8000-17000X3500X3000 mm

Note: the product series parameters are the mainstream of the market, and the devices beyond the scope can be designed separately.
