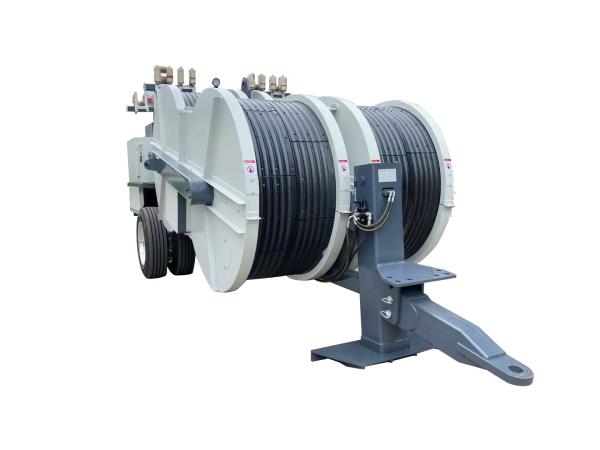

25KN 30KN Hydraulic Wire Tensioner For Stringing Conductor And Earth Wire
25KN 30KN Hydraulic Wire Tensioner For Stringing Conductor And Earth Wire
25KN 30KN Hydraulic Wire Tensioner For Stringing Conductor And Earth Wire
25KN 30KN Hydraulic Wire Tensioner For Stringing Conductor And Earth Wire
25KN 30KN Hydraulic Wire Tensioner For Stringing Conductor And Earth Wire
25KN 30KN Hydraulic Wire Tensioner For Stringing Conductor And Earth Wire
Specifications
Brand Name :
Net Electric Power
Certification :
ISO45001 ISO14001
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
10sets/month
Delivery Time :
5-8days
Packaging Details :
in bulk
Price :
10000-250000usd/set
Description

hydraulic wire tensioner

Maximum Tension(KN): 30
Continuous Tension(KN):25
Maximum speed(kmyh): 5
Bullwheel bottom of groove diameter(mm):Ф1200
Number of grooves: 5
Maximum pullback(KN):20
Maximum suitable conductor diameter(mm): Ф32Engine power/speed(kw/rpm):11/2200
Dimensions(mm):3560x1600x2220
Weight(kg):1700
Uses: it' s used for stringing various conductors and earth wires, including OPGW, ADSS, etc.wFeature:
1.Bullwheel with wear proof MC nylon lining segments.
2.Infinitely variable tension control and constant tension conductor stringing .
3.Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.Main component:
1.Engine: Chinese famous water cooled diesel engine.
2.Main pump/motor :Chinese famous branded pump and motor.
3.Reducer: EUROPAIR(ltalian).
4.lf use Honda gasoline engine.

25KN 30KN Hydraulic Wire Tensioner For Stringing Conductor And Earth Wire
