5-Ton Dual-Drum Gasoline-Powered Hoisting Winch with Remote Control for Heavy-Duty Lifting
5-Ton Dual-Drum Gasoline-Powered Hoisting Winch with Remote Control for Heavy-Duty Lifting
5-Ton Dual-Drum Gasoline-Powered Hoisting Winch with Remote Control for Heavy-Duty Lifting
5-Ton Dual-Drum Gasoline-Powered Hoisting Winch with Remote Control for Heavy-Duty Lifting
Specifications
Brand Name :
Net Electric Power
Certification :
ISO9001 45001 14001
Place of Origin :
China
MOQ :
100pices
Payment Terms :
T/T,L/C
Supply Ability :
1000pices/per
Delivery Time :
5-8wrok days
Packaging Details :
standard package
Model :
CPW-500
Weight :
200 kg to 1500 kg
Controltype :
Remote control
Protectionclass :
IP54
Operatingtemperaturerange :
-20°C to 50°C
Speed :
5 m/min to 30 m/min
Type :
Electric/Hydraulic/Manual
Capacity :
20000lbs
Cablediameterrange :
10-40 mm
Application :
Cable installation, wire pulling, construction, mining
Control Method :
Remote control / Manual control
Drum Diameter :
300 mm to 600 mm
Wire Rope :
supplied setarately in a box
Color :
yellow&red
Voltage :
220V/380V/440V
Control type :
Remote control
Protection class :
IP54
Operating temperature :
-20°C to 50°C
Description

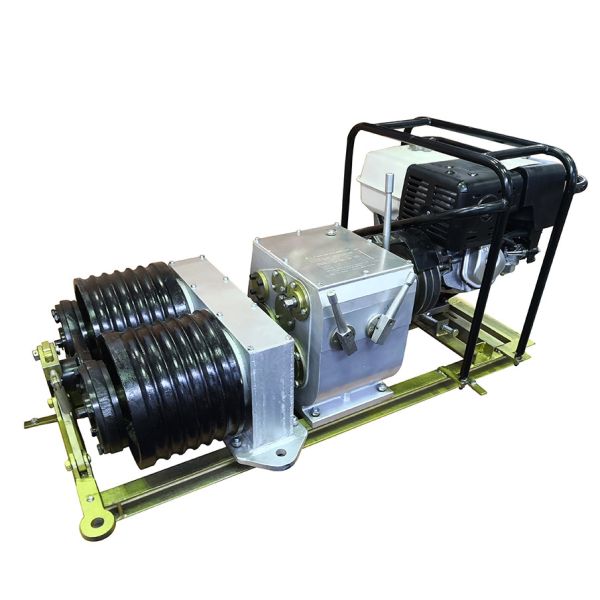

5-Ton Double-Drum Gasoline-Powered Hoisting Winch

This 5-ton, dual-drum, gasoline-powered hoisting winch is heavy-duty industrial equipment designed specifically for efficient lifting and pulling operations. With a rated load capacity of 5 tons (50 kN), it provides reliable traction for heavy materials, making it an ideal choice for power line construction, tower erection, and pole-setting tasks.

Equipped with two independent drums, the unit supports simultaneous or alternating spooling of steel wire ropes, significantly boosting operational efficiency while ensuring ropes are wound tightly, neatly, and in an orderly fashion. Powered by a gasoline engine (with Honda or Yamaha brands available as options), the device operates independently without external power supply, making it particularly well-suited for remote areas or job sites lacking grid connectivity.

The equipment features multiple gear settings and adjustable pulling speeds, allowing flexible adaptation to a wide range of operational requirements. With a compact structure and user-friendly operation, it is constructed from robust, durable materials capable of withstanding harsh outdoor working environments. This winch is widely utilized in telecommunications, public utilities, and other heavy-duty sectors, providing users with flexible and safe solutions for lifting and pulling needs.

Technical Specifications
Model JJM-5SQ
Engine YAMAHA/HONDA GX390 / 186F Diesel Engine/Electric Engine
Power 13HP, 3600rpm / 6.3KW, 3600rpm
Suitable Wire Rope (mm) 15
Bottom Diameter of Groove (mm) 240
No. of Groove 6
Weight (KG) 280/300
Dimension (mm) 1330*800*600
Gear Performance Specifications
Gear Slow I Slow II Fast I Fast II Slow (Reverse) Fast (Reverse)
Pull Force (KN) 50 30 13 10 No lifting No lifting
Speed (m/min) 6 10 23 30 5 17
