Specifications
Brand Name :
Net Electric Power
Certification :
ISO9001 45001 14001
Place of Origin :
China
MOQ :
100pices
Payment Terms :
L/C,T/T
Supply Ability :
1000pices/per
Delivery Time :
5-8wrok days
Packaging Details :
standard package
Brake System :
Hydraulic
Wire Rope :
supplied setarately in a box
Material :
Steel
Approval :
CE
Capacity :
20000lbs
Application :
Electrical cable installation, construction, and industrial use
Dimensions :
1500 x 800 x 1200 mm
Color :
yellow&red
Pulling Capacity :
5000 kg
Cable Diameter :
12 mm
Voltage :
380 V
Weight :
450 kg
Speed :
10 m/min
Model :
CPW-500
Cable Length :
100 meters
Description

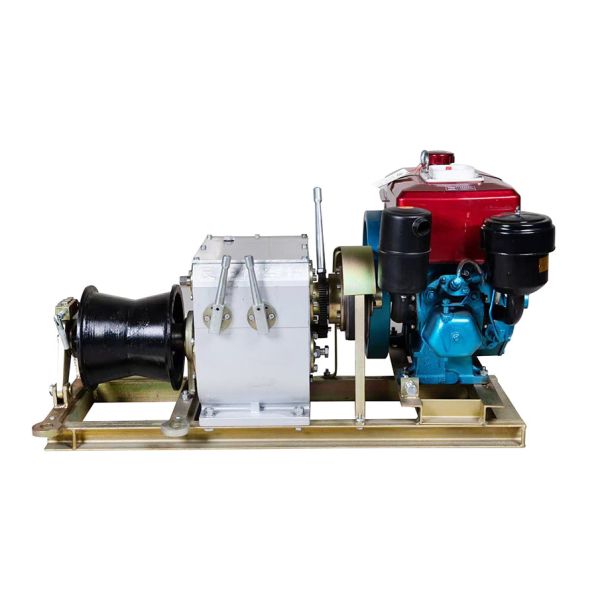

Diesel-Powered Winch — JJC Series
Our JJC Series diesel-powered winch is a robust, durable, and reliable piece of equipment specifically engineered for overhead power line construction tasks, with applications ranging from tower erection to cable tensioning operations. This series currently offers three models to choose from: JJC-30 (09111), JJC-50 (09112), and JJC-50D (09112D).
Each model is powered by a diesel engine—rated at 4hp, 6hp, and 7hp, respectively—and all models are capable of maintaining a constant operating speed of 2600 rpm. The winch offers flexible performance with adjustable pulling speeds; it delivers a maximum pulling force of up to 50 kN, with pulling speeds ranging from 3.6 m/min to 5.2 m/min across four distinct modes: Fast, Medium, Slow, and Reverse.
Featuring a drum core diameter of φ160 mm and compact dimensions (ranging from 800×620×520 mm to 890×670×520 mm), this equipment strikes a perfect balance between power output and portability, with a total unit weight ranging from 137 kg to 182 kg. Notably, the JJC-50D model—equipped with an enhanced 7hp engine—is highly recommended for construction operations conducted in high-altitude regions.
This winch has been meticulously designed and manufactured to meet the rigorous performance demands of the power line construction sector, ensuring stable, reliable performance and user-friendly operation across a wide variety of field working environments.
