Heavy Duty Diesel Winch with 20000lbs Capacity, High-Strength Steel Frame, and Adjustable Speed 0-20 M/min for Cable Pulling
Heavy Duty Diesel Winch with 20000lbs Capacity, High-Strength Steel Frame, and Adjustable Speed 0-20 M/min for Cable Pulling
Specifications
Packaging Details :
standard package
Fuel Tank Capacity :
20-50 Liters
Safety Features :
Overload Protection, Emergency Stop
Drum Width :
300-600 Mm
Certification :
ISO 9001 14001 45001
Payment Terms :
L/C,T/T,D/P
Operating Speed :
0-20 M/min
Delivery Time :
5-8 work days
Cable Length :
100 Meters
Place of Origin :
China
Application :
Cable Laying, Construction, Utility Installation
Color :
Yellow&red
Brand Name :
NET Electric Power
Capacity :
20000lbs
MOQ :
100
Description

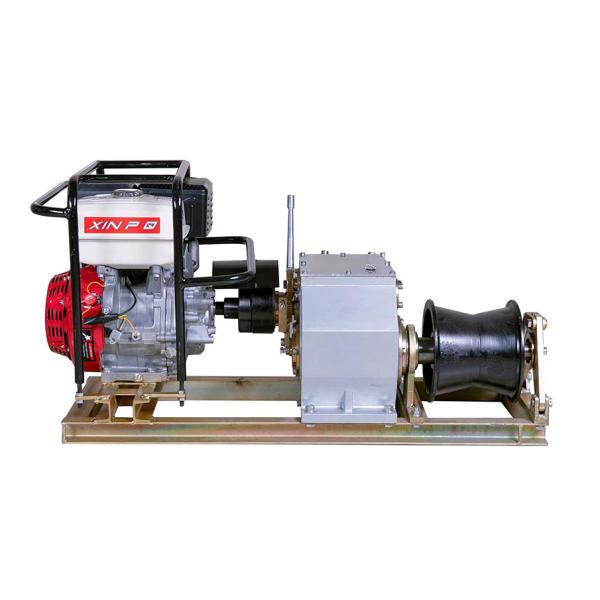

Steel Diesel Cable Pulling Winch
Product Overview
The Diesel Cable Pulling Winch is a robust and reliable heavy-duty equipment designed for construction, mining, and utility installation applications. Built with a high-strength steel frame, this winch offers exceptional durability and resistance to wear, ensuring long-lasting performance in demanding environments.
Operating at 10 meters per minute under normal conditions with an adjustable speed range of 0-20 meters per minute, this winch provides precise control for various cable types. The drum width ranges from 300 to 600 millimeters, accommodating different cable sizes and lengths while reducing cable wear through proper layering.
Powered by a reliable diesel engine, the winch operates independently of external power sources, making it ideal for remote locations. The distinctive yellow and red color scheme enhances worksite visibility and safety.
Key Specifications
Operating Speed 10 M/min (adjustable 0-20 M/min)
Pulling Capacity Up to 10 tons
Drum Width 300-600 mm
Power Source Diesel Engine
Frame Material High-Strength Steel
Color Yellow and Red
Applications
This industrial diesel cable winch is essential for various heavy-duty pulling and lifting tasks:
  • Cable laying for telecommunications, power distribution, and underground utilities
  • Construction site material and equipment movement
  • Utility installation including power lines and communication networks
  • Remote or off-grid locations where electrical power is unavailable
Customization Options
Our industrial diesel cable winch can be fully customized to meet specific operational requirements. With a capacity of 20,000 lbs and pulling force ranging from 5 to 30 tons, it offers versatile application across various industries. The wire rope is supplied separately, allowing flexibility in type and length selection.
Advanced safety features include overload protection and emergency stop functionality to ensure secure operation.
Safety Features
  • Overload protection system
  • Emergency stop mechanism
  • Sturdy braking system
  • High-visibility color scheme
Support & Services
Comprehensive technical support and service guidelines ensure optimal operation and longevity. This includes detailed installation instructions, operation procedures, maintenance schedules, troubleshooting guidance, and access to genuine spare parts through authorized service centers.
Packaging & Shipping
The winch is securely packaged in protective foam and plastic film, then placed in a sturdy wooden crate designed to withstand heavy handling. All accessories are packed in separate compartments. Shipping options include sea, air, or land freight with complete documentation, insurance, and tracking provided.
Frequently Asked Questions
What is the maximum pulling capacity of the Diesel Cable Pulling Winch?
The winch has a maximum pulling capacity of up to 10 tons, making it suitable for heavy-duty cable installation tasks.
What type of engine powers the Diesel Cable Pulling Winch?
This winch is powered by a robust diesel engine, which provides reliable and efficient performance in various working conditions.
Is the Diesel Cable Pulling Winch portable and easy to transport?
Yes, the winch is designed with portability in mind. It features a compact structure and can be easily mounted on trailers or vehicles for transportation to different job sites.
Can the pulling speed of the winch be adjusted?
Yes, the Diesel Cable Pulling Winch offers adjustable pulling speeds, allowing operators to control the cable installation process precisely and safely.
What safety features are included with the Diesel Cable Pulling Winch?
The winch comes equipped with multiple safety features, including an emergency stop system, overload protection, and a sturdy braking mechanism to ensure safe operation during cable pulling tasks.
