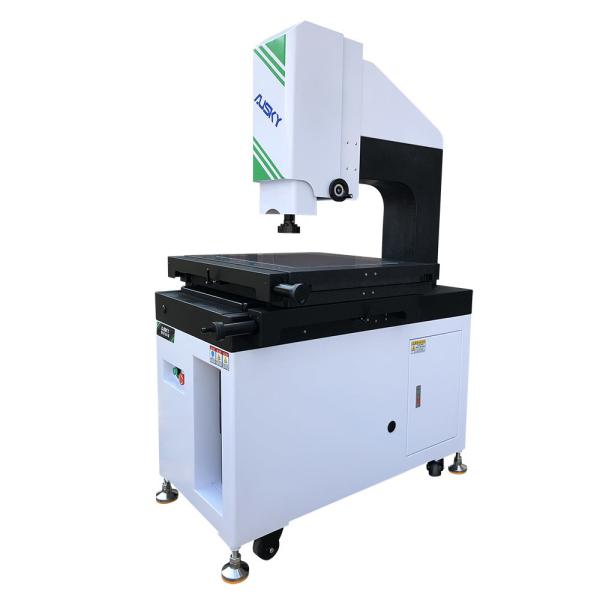

Professional Manual 3D Measuring Device With HD Color 1/3'' CCD Camera

Mechanism and Application Characteristics of Coordinate measuring machine:

1. Construction of the instrument:

Designed with workbench of a marble panel base and cantilever-type mechanism, the instrument is characterized by steady accuracy, good adaptability to working environment, simple, strong, non-deformable and good-looking body structure, and ergonomically designed operating mechanism, and meanwhile is equipped with powerful measuring software and is easy to operate.

2. Movement of Mechanism:

With tri-axial manual control mode, this measuring instrument is equipped with high-accuracy polished rod, FUSHUO high-accuracy guide rail, and meanwhile coupled with professional Aotian measuring software for measuring.

3. Merits with the non-contact auto-measuring instrument:

This instrument can avoid human error of the “Object Work Piece” as caused by manual measuring, and can as well avoid secondary damage caused to “Object Work Piece” by manual measuring, with ensured mass stability and criteria consistency of the object work piece. This instrument can enhance multi-fold the detecting efficiency in the production process, identify the defects and control over non-yields beforehand in production process, and can meanwhile help lower part of the costs spent on manual detection, and increase the timeliness of product delivery.

4. Overall Merits:

A. Suitable for measuring applications of multi-variety, complex dimensions and demanding measuring accuracy, with even easy and quick measuring efficacy and enhanced measuring efficiency.

B. The instrument has the following merits with regard to image processing: automatic burrs skip-over, auto generating measurement reports and results statistics, and open for linking to printers, etc., suitable for wide industry applications.

5. Saving cost:

This instrument can achieve multiple functions on the same set of equipment, resulting in saved user costs for repeated purchasing of measurement devices as well as saved labor costs and equipment occupation space. It can meet the needs of user enterprises for greater development in the future and the demand for rapid expansion of product testing to lay sound foundation for users’ quality assurance.

Technical parameters

Introduction to the software functions:

Software interface

A. Multiple measuring methods, including auto edge-tracing, auto sectional edge-tracing, mouse on-screen point fetch, crossline pointing, proximity pointing, contrast and pinnacle pointing, contour pointing, probe pointing, laser pointing, and etc.

B. Powerful edge-tracing algorithm ensures sampling point accuracy and automatic pixel correction on sampling stability,
where, one stroke will enable automatic pixel correction, needless to shift frequently.

C. Element construction
Element structure technique, offers multiple methods, such as shifting, rotating, extracting, combining, paralleling,
plumbing, mirroring, symmetry, intersecting, tangentially structured elements; Element structure will enable user to
tackle some elements hard to measure, and consequently resulting in increased working efficiency; The compositional
process is to select elements for compositional involvement, select the result element, clear and simple. Options for
composition methods available in form of illustration

D. Ample report functions

E. Red out-of-tolerance warning
In case of out-of-tolerance of the measuring result, the specific element and item of element can be displayed, and the
derived EXCEL may the same prompt which item is out of the tolerance.

E. Import CAD graphics for measuring

The software supports measuring on workpieces with CAD graphics as template, which enable coordinate measuring or
comparison measuring. Such function is applicable to workpiece of any contour/shape within gauging range of the
measuring instrument.
