Specifications
Brand Name :
Hanyuhaoyang
Model Number :
SFF-060SS-60N-16CN
Place of Origin :
CHINA
MOQ :
ten PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
ten million PCS
Delivery Time :
It is determined according to the customer's order.
Packaging Details :
Tight packaging, multiple layers of wrapping
model :
SFF-060SS-60N-16CN
advantage :
Improve machining accuracy and enhance processing efficiency
application fields :
Aerospace, automotive manufacturing, mold processing
origin :
China
category :
custom - made model
Description

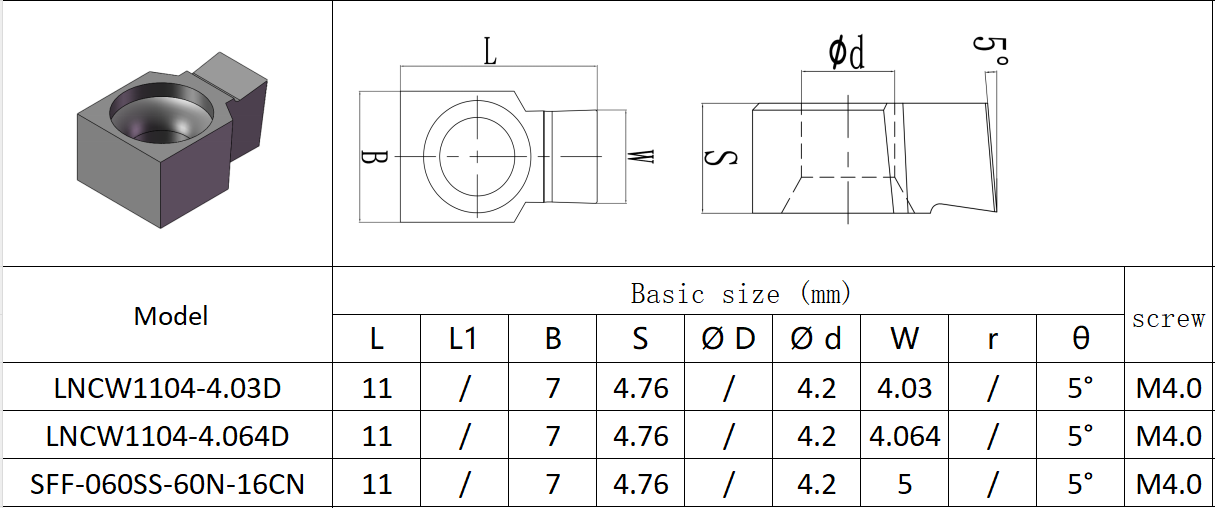

CNC Gear Shaping Insert SFF-060SS-60N-16CN – HYB208 Coated
Special Gear Shaping Series SFF-060SS-60N-16CN with PVD HYB208 Coating for difficult-to-machine materials (excluding high-temperature alloys).
Product Overview
CNC Gear Shaping Insert, Model SFF-060SS-60N-16CN with PVD Coating HYB208, suitable for all difficult-to-machine materials except high-temperature alloys. Gear-shaping inserts are key tool components directly involved in cutting during gear-shaping processing, mainly used for machining tooth grooves of tooth-shaped parts such as gears and racks.
CNC Gear Shaping Insert SFF-060SS-60N-16CN – PVD HYB208 Coated for High Tooth-Profile Accuracy and Wide Processing Scope
Performance Advantages
  • Wide processing scope: Can process structures like internal gears and multi-gear clusters that are difficult to handle by hobbing, making up for the limitations of hobbing.
  • High tooth-profile accuracy: With precisely ground cutting edges and stable gear-shaping motion, they can ensure high tooth-profile and tooth-alignment accuracy, suitable for precision gear manufacturing.
  • Strong adaptability: By changing inserts of different specifications, they can machine gears with different modules and pressure angles, offering great flexibility.
Application Industries
Industry Field Specific Applications / Typical Components
Automotive & Auto Parts Manufacturing Transmission gears, engine timing gears, new energy vehicle reducer gears, and other core drivetrain components
Machinery Equipment Manufacturing • General Machinery: Lathe headstock gears, reducer gears, crane drive gears, multi-gear clusters with shoulders
• Heavy-Duty Machinery: Large-module gears for rolling mills and mining equipment (roughing to semi-finishing)
• Precision Machinery: Small-module precision gears for instruments, meters, and textile machinery (pitch error ≤5μm)
Aerospace & Defense Industry Aero-engine gears, high-precision transmission gears for aerospace equipment, landing gear actuator gears
Rail Transit Equipment Gears in transmission systems for high-speed trains, EMUs, and various rail transit vehicles
Shipbuilding & Offshore Engineering Marine propulsion system gears, offshore platform lifting system ring gears, various marine equipment transmission components
Wind Power Equipment Manufacturing Wind turbine main gearbox gears, yaw system ring gears, pitch control system gears
Frequently Asked Questions
Are you the original manufacturer of the inserts?
Yes, we are the original factory for both standard and non-standard inserts with a 14-year entrepreneurial history. We have our own production lines, as well as design and sales teams.
How long is your delivery time?
It is determined according to the customer's order. You can communicate the details directly with the customer service on our website.
What is the best way to contact you?
Contact us via email, WhatsApp, WeChat (ID: hanyuhaoyangtools), phone (+86 13880606307), or live chat.
