Specifications
Brand Name :
Hanyuhaoyang
Model Number :
HYYKS5132X3/Z-59201(5)
Place of Origin :
CHINA
MOQ :
ten PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
ten million PCS
Delivery Time :
It is determined according to the customer's order.
Packaging Details :
Tight packaging, multiple layers of wrapping
model :
HYYKS5132X3/Z-59201(5)
advantage :
Improve machining accuracy and enhance processing efficiency
application fields :
Aero, Auto & Mold
origin :
China
category :
custom - made model
Description

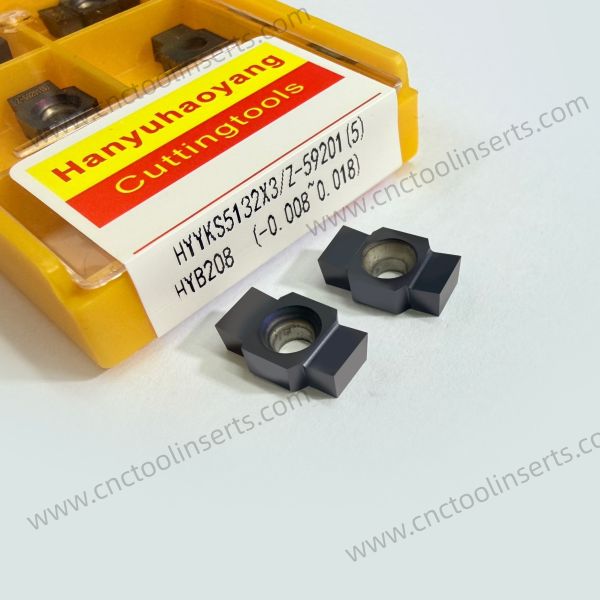

CNC Gear Shaping Insert HYYKS5132X3/Z-59201(5)
PVD HYB208 Coated, for Difficult Materials (Excluding High-Temperature Alloys)
Gear-shaping inserts are essential tool components directly involved in cutting during gear-shaping processing. These inserts are primarily used for machining tooth grooves in gear-shaped parts such as gears and racks. Together with blind-groove inserts, gear-shaping inserts are commonly utilized in automotive applications.
CNC Gear Shaping Insert HYYKS5132X3/Z-59201(5) – PVD HYB208 Coated, for Difficult Materials (Excl. High-Temp Alloys)
Application Industries and Typical Scenarios
Industry Field Typical Application Scenarios / Specific Components
Automotive Manufacturing
  • Transmission: multi-gear clusters (with shoulders), synchronizer hubs, reverse gears
  • Engine: timing gears, oil pump gears, balance shaft gears
  • New Energy: reducer planetary gears, differential ring gears
Aerospace
  • Engine: accessory drive gears, fuel pump gears, ring gears
  • Structural Parts: landing gear actuator gears, door drive sector plates
  • High Precision: gear accuracy IT5-IT7, materials such as superalloys, titanium alloys
Construction Machinery
  • Slewing Bearings: inner ring gears for excavators, cranes
  • Drive Systems: inner ring gears for travel reducers, slewing reducer gears
Machine Tool Manufacturing
  • Headstocks: shift gears, sliding gears (with shoulders)
  • Indexing Mechanisms: indexing gear plates, precision racks
  • Feed Systems: internal gears in worm gear pairs
Wind Power Energy
  • Yaw Systems: yaw ring gears (internal), pitch gears
  • Main Gearboxes: planetary gears, ring gears (large module, high load capacity)
Industrial Robotics
  • RV Reducers: cycloidal gears, needle roller housing internal gears
  • Harmonic Reducers: flexsplines, circular spline internal gears
Marine & Offshore
  • Power Systems: marine gearbox ring gears, clutch gears
  • Offshore Platforms: rack lifting systems, slew drive gears
Mold Manufacturing
  • Gear Molds: powder metallurgy gear mold cavities, injection mold gear tooth profiles
  • Slider Mechanisms: gear racks for internal mold drives
Frequently Asked Questions
Q: Are you the original manufacturer of the inserts?
A: Yes, we are the original factory for both standard and non-standard inserts with a 14-year entrepreneurial history. We have our own production lines, as well as design and sales teams.
Q: How long is your delivery time?
A: Delivery time is determined according to the customer's order. You can communicate the details directly with our customer service team.
Q: What is the best way to contact you?
A: Contact us via email, WhatsApp, WeChat (ID: hanyuhaoyangtools), phone (+86 13880606307), or live chat on our website.
