Specifications
Brand Name :
Hanyuhaoyang
Model Number :
C-12778
Place of Origin :
CHINA
MOQ :
ten PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
ten million PCS
Delivery Time :
It is determined according to the customer's order.
Packaging Details :
Tight packaging, multiple layers of wrapping
Coating :
PVD
Model :
C-12778
Origin :
CHINA
Type :
Non - standard customization type
Application :
Aero, Auto, Mold
Description

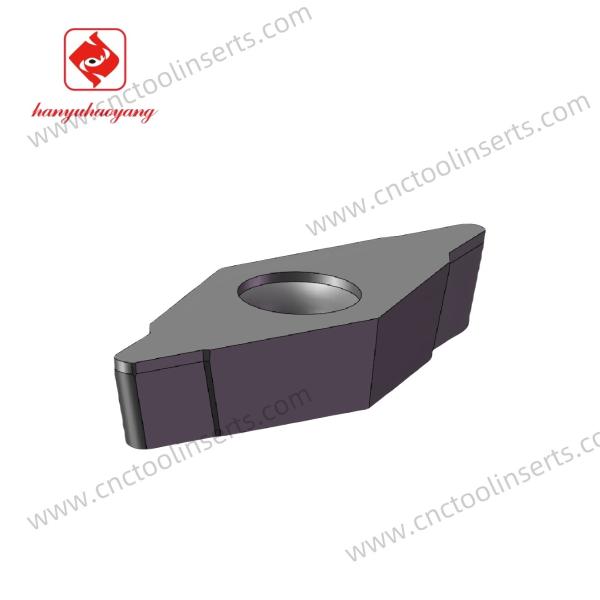

Non-Standard Grooving Insert C-12778
CNC Grooving Insert C-12778 with PVD coating HYB208, suitable for machining all difficult-to-machine materials except high-temperature alloys.
Grooving Insert C-12778 (VB1604) – PVD HYB208 Coated, for Difficult Materials (Excl. High-Temp Alloys) Grooving Insert C-12778 (VB1604) – PVD HYB208 Coated, for Difficult Materials (Excl. High-Temp Alloys)
Product Overview
This series of inserts belongs to standard grooving inserts. For custom requirements, please contact our online customer service or leave your contact information for further assistance.
Inserts with HYB208 coating are suitable for machining difficult-to-machine materials except high-temperature alloys, while inserts with HY08 coating are designed for aluminum machining.
Difficult-to-machine materials include stainless steel, hardened steel, nodular cast iron, etc.
Industry Applications
Industry Field Specific Scenarios / Typical Components
Automotive Manufacturing
  • Engine: piston ring grooves, cylinder block oil grooves, valve retainer grooves
  • Transmission: synchronizer hub grooves, clutch pressure plate grooves, valve body oil grooves
  • Drivetrain: driveshaft snap ring grooves, bearing locating grooves, spline grooves
Aerospace
  • Engine components: turbine disk tenon grooves, compressor blade locking grooves
  • Structural parts: landing gear shaft snap ring grooves, titanium alloy joint sealing grooves
  • Fasteners: high-lock bolt ring grooves, self-locking nut internal grooves
Mold Manufacturing
  • Injection molds: cooling channel grooves, ejector plate grooves, slider guide grooves
  • Die-casting molds: overflow grooves, vent grooves, core-pulling mechanism grooves
  • Stamping dies: guide grooves, spring mounting grooves, wedge slide grooves
General Machinery
  • Hydraulics/Pneumatics: valve body flow channels, piston rod sealing grooves, cylinder oil grooves
  • Bearing industry: bearing cage grooves, raceway locating grooves
  • Construction machinery: pin snap ring grooves, track link connecting grooves
Energy Equipment
  • Wind power: gearbox oil grooves, main shaft locking grooves, yaw ring gear grooves
  • Oil & gas drilling: drill pipe joint grooves, sucker rod ring grooves, valve sealing grooves
Medical Devices
  • Orthopedic implants: bone plate locking grooves, intramedullary nail locking hole grooves
  • Surgical instruments: stapler cartridge grooves, forceps jaw teeth grooves
  • Dental: implant thread grooves, abutment locating grooves
Electronics / Precision Instruments
  • 3C products: mobile phone mid-frame antenna grooves, heat sink slots, housing sealing grooves
  • Precision instruments: sensor locating grooves, optical lens adjustment slots
Frequently Asked Questions
Q: Are you the original manufacturer of the inserts?
A: Yes, we are the original factory for both standard and non-standard inserts with a 14-year entrepreneurial history. We have our own production lines, as well as design and sales teams.
Q: How long is your delivery time?
A: It is determined according to the customer's order. You can communicate the details directly with the customer service on our website.
Q: What is the best way to contact you?
A: Contact us via email, WhatsApp, WeChat (ID: hanyuhaoyangtools), phone (+86 13880606307), or live chat.
Grooving Insert C-12778 (VB1604) – PVD HYB208 Coated, for Difficult Materials (Excl. High-Temp Alloys)
Contact Information:
WeChat ID: hanyuhaoyangtools
Phone: +86 13880606307
Available via email, WhatsApp, and live chat
