PVD HYB208 Coated CNC Gear Insert for Difficult Materials - Left-Hand Insert WD-8967/09 (L) (T16)
PVD HYB208 Coated CNC Gear Insert for Difficult Materials - Left-Hand Insert WD-8967/09 (L) (T16)
PVD HYB208 Coated CNC Gear Insert for Difficult Materials - Left-Hand Insert WD-8967/09 (L) (T16)
PVD HYB208 Coated CNC Gear Insert for Difficult Materials - Left-Hand Insert WD-8967/09 (L) (T16)
PVD HYB208 Coated CNC Gear Insert for Difficult Materials - Left-Hand Insert WD-8967/09 (L) (T16)
PVD HYB208 Coated CNC Gear Insert for Difficult Materials - Left-Hand Insert WD-8967/09 (L) (T16)
Specifications
Brand Name :
Hanyuhaoyang
Model Number :
WD-8967/09 (L) (T16)
Place of Origin :
CHINA
MOQ :
ten PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
ten million PCS
Delivery Time :
It is determined according to the customer's order.
Packaging Details :
Tight packaging, multiple layers of wrapping
type :
Special gear series
Coating :
PVD
model :
WD-8967/09 (L) (T16)
Origin :
CHINA
Description

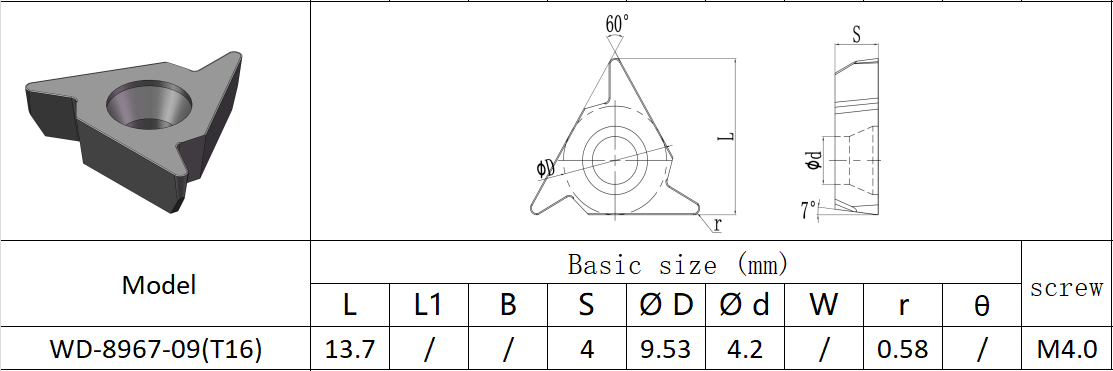

CNC Gear Insert WD-8967/09 (L) (T16) – PVD HYB208 Coated

Insert Model: WD-8967/09 (Left-hand insert) (T16)
Coating: HYB208

CNC gear inserts are specialized indexable inserts used for gear machining. They produce accurate tooth profiles on workpieces through various processes such as milling, shaping, and hobbing. These tools are essential for achieving high-efficiency and high-precision gear manufacturing in modern industrial applications.

PVD HYB208 Coated CNC Gear Insert for Difficult Materials - Left-Hand Insert WD-8967/09 (L) (T16)
Gear Inserts Application Overview
Application Field Specific Component / Sub-assembly Typical Gear Type / Machining Method
Automotive Manufacturing Transmission Gears Spur Gears, Helical Gears (shaping / hobbing)
Synchronizer Hub Spur Gears, Face Gears (shaping)
Reverse Gears Spur Gears (shaping)
Differential Planet Gears & Side Gears Bevel Gears (milling / shaping)
New Energy Reducer Gears Helical Gears (hobbing / skiving)
Aerospace Engine Accessory Gears High-Precision Spur Gears, Helical Gears (shaping)
Landing Gear Actuator Gears Internal Gears, Sector Plates (shaping)
Fuel Pump Gears Small Precision Spur Gears (hobbing / shaping)
Wind Power Energy Yaw Ring Gear Internal Ring Gear (shaping)
Pitch Gearbox Gears Spur Gears, Helical Gears (hobbing / shaping)
Main Gearbox Planetary Gears Ring Gears, Planet Gears (shaping / hobbing)
Industrial Robotics RV Reducer Cycloidal Gear Cycloidal Gear (special milling / shaping)
Harmonic Reducer Flexspline & Circular Spline Internal Gears, External Gears (shaping)
Construction Machinery Slewing Bearing Ring Gear Internal Gears, External Gears (shaping)
Travel Reducer Gears Spur Gears, Helical Gears (hobbing / shaping)
Machine Tool Manufacturing Headstock Shift Gears Multi-Gear Clusters (shaping)
Indexing Gear Plate Face Gears (shaping)
Shipbuilding & Offshore Marine Gearbox Gears Spur Gears, Helical Gears (hobbing / shaping)
Lifting System Rack Racks (shaping)
Mold Manufacturing Gear Mold Cavity Powder Metallurgy Gear Cavity (milling / shaping)
Slider Rack Small Precision Rack (shaping)
Frequently Asked Questions
Q: Are you the original manufacturer of the inserts?
A: Yes, we are the original factory for both standard and non-standard inserts with a 14-year entrepreneurial history. We have our own production lines, as well as design and sales teams.
Q: How long is your delivery time?
A: Delivery time is determined according to the customer's order. You can communicate the details directly with the customer service on our website.
Q: What is the best way to contact you?
Contact us via:
• Email
• WhatsApp
• WeChat (ID: hanyuhaoyangtools)
• Phone (+86 13880606307)
• Live chat on our website
