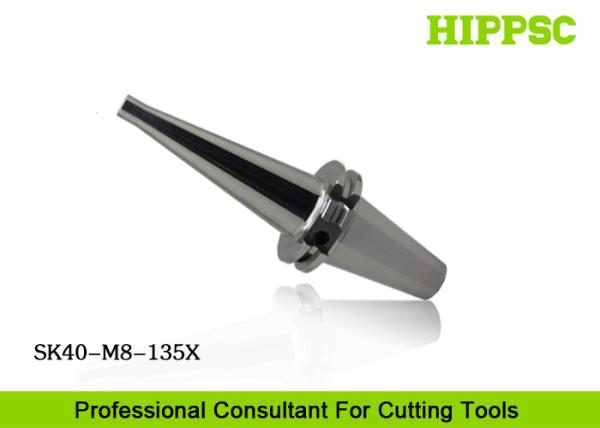

Special Steel White Drilling tapping Threading Tool Holder Adjustable Semi Precision Finishing
Special Steel White Drilling tapping Threading Tool Holder Adjustable Semi Precision Finishing
Special Steel White Drilling tapping Threading Tool Holder Adjustable Semi Precision Finishing
Special Steel White Drilling tapping Threading Tool Holder Adjustable Semi Precision Finishing
Special Steel White Drilling tapping Threading Tool Holder Adjustable Semi Precision Finishing
Special Steel White Drilling tapping Threading Tool Holder Adjustable Semi Precision Finishing
Special Steel White Drilling tapping Threading Tool Holder Adjustable Semi Precision Finishing
Special Steel White Drilling tapping Threading Tool Holder Adjustable Semi Precision Finishing
Specifications
Brand Name :
HIPPSC
Model Number :
SK40-M8 -135X
Certification :
ISO9001
Place of Origin :
Dongguan, China
MOQ :
3pcs
Price :
Negotiable (Price term: EXW, FOB, CFR, CIF )
Payment Terms :
T/T, Western Union, Paypal, L/C
Supply Ability :
20000 pcs Per Month
Delivery Time :
3~30 Work days
Packaging Details :
Plastic Box with Inner PE Bag In Carton
Product Type :
Theading Tool Holder
Spindle Type :
SK40
Runout :
Below 0.003μm
Cutting Type :
EndMilling, Reaming, Drilling
Material :
Special Steel
Customized Service :
Available
Application :
Semi Precision Finishing
Screw hole :
M8
Description

Special Steel White Drilling Threading Tool Holder Adjustable Semi Precision Finishing



Ⅰ​. Features

  1. The Tool Hold holds cutting tools through thread screw with high stability.
  2. It is very easy to lock and unlock tools, high efficient and save time.
  3. The arbor have nice rigidity with slim shank for hole making.
  4. Wide range of applications, suits for many kinds of quick change tools.
  5. Very less interference happened during machining.

Ⅱ. Technical Parametes ​

Product Name

Threading Tool Holder

Spindle Type

SK40

Screw hole

M08

Beat accuracy

3μm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

Special steel

Hardness

HRC58~60°
Taper tolerance AT3


Ⅲ. Product Show


CAD Products structure
Special Steel White Drilling tapping Threading Tool Holder Adjustable Semi Precision Finishing

Products catalog form

Part Number L1 L2 D1 M α
SK40-M08-60 60 12 12.8 M08 7°
SK40-M08H-60 60 12 15.4 M08 7°
SK40-M08-90 90 12 12.8 M08 7°
SK40-M08H-90 90 12 15.4 M08 7°
SK40-M08-135 135 12 12.8 M08 7°
SK40-M08H-135 135 12 15.4 M08 7°
SK40-M10S-60 60 12 15.4 M10 7°
SK40-M10-60 60 12 17.8 M10 7°
SK40-M10S-90 90 12 15.4 M10 7°
SK40-M10-90 90 12 17.8 M10 7°
SK40-M10S-135 135 12 15.4 M10 7°
SK40-M10-135 135 12 17.8 M10 7°
SK40-M12-60 60 12 20.8 M12 6°
SK40-M12H-60 60 12 23 M12 6°
SK40-M12-90 90 12 20.8 M12 6°
SK40-M12H-90 90 12 23 M12 6°
SK40-M12-135 135 12 20.8 M12 6°
SK40-M12H-135 135 12 23 M12 6°
SK40-M16-60 60 12 28.8 M16 6°
SK40-M16H-60 60 12 38 M16 6°
SK40-M16-90 90 12 28.8 M16 6°
SK40-M16H-90 90 12 38 M16 3°
SK40-M16-135 135 12 28.8 M16 6°
Part number L1 L2 D1 M α
SK50-M08-60 60 12 12.8 M08 7°
SK50-M08H-60 60 12 15.4 M08 7°
SK50-M08-90 90 12 12.8 M08 7°
SK50-M08H-90 90 12 15.4 M08 7°
SK50-M08-135 135 12 12.8 M08 7°
SK50-M08H-135 135 12 15.4 M08 7°
SK50-M10S-60 60 12 15.4 M10 7°
SK50-M10-60 60 12 17.8 M10 7°
SK50-M10S-90 90 12 15.4 M10 7°
SK50-M10-90 90 12 17.8 M10 7°
SK50-M10S-135 135 12 15.4 M10 7°
SK50-M10-135 135 12 17.8 M10 7°
SK50-M12-60 60 12 20.8 M12 6°
SK50-M12H-60 60 12 23 M12 6°
SK50-M12-90 90 12 20.8 M12 6°
SK50-M12H-90 90 12 23 M12 6°
SK50-M12-135 135 12 20.8 M12 6°
SK50-M12H-135 135 12 23 M12 6°
SK50-M16-60 60 12 28.8 M16 6°
SK50-M16H-60 60 12 38 M16 6°
SK50-M16-90 90 12 28.8 M16 6°
SK50-M16H-90 90 12 38 M16 3°
SK50-M16-135 135 12 28.8 M16 6°


Ⅳ. Products Overview

  1. DIN6987/SK40 7:24 Taper Threading Tool Holder.
  2. Hydraulic Expansion Tool holder of BT/SK/HSK.
  3. Shrink-Fit/Heat Shrinking/Heat Expansion Tool Holders.
  4. Threaded/Screw-on/Thread Screw Tool Holders.
  5. Pull type /Side Lock and Mirror Finishing​ Toolholders.
  6. Morse Tap Adapter/Tools Holder.
  7. Torque Tap/Tapping Chuck.
  8. ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
  9. Torque/Circle/hook Spanner/Wrench.
  10. Edge finder/Tool Holder Lock Fixture.
  11. CNC Indexable Cutting Tools.
  12. Quick change CNC Tool Bits.

Ⅴ​. Shipment​
Our goods could be sent to all over the work through:
By Sea, By Air, By Train/Truck, or by TNT, EMS, DHL, UPS and FedEx.
For international express, we offer door to door service. We can even pay
shipping cost according to order quantity and value.


Ⅵ. Packing


PE Bag.
Plastic Box.
Carton Box.


Other Materials

Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse

  1. Arrange Delivery Within 2 days at soonest After order and payment are confirmed and received..
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. Use Imported Advanced Gauges For Examing Accuracy and Technical Factors.
  4. We are always committed to achieve 0 percents error.

Ⅷ. Warranty

  • High Accuracy Equipments and Technology, Experienced Workers.
  • Custom Made Service, Professional suggestions.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • Best Service, Considerate and Sincere.
