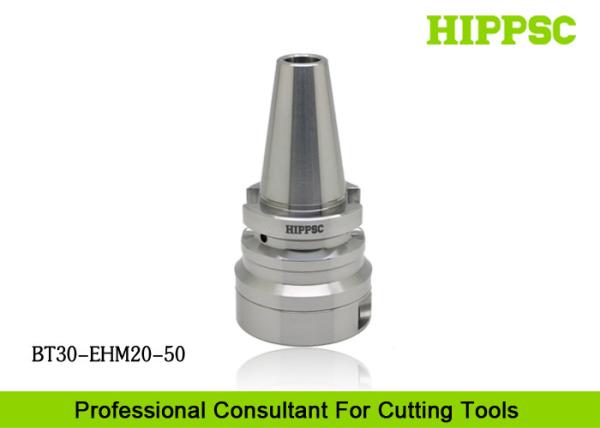

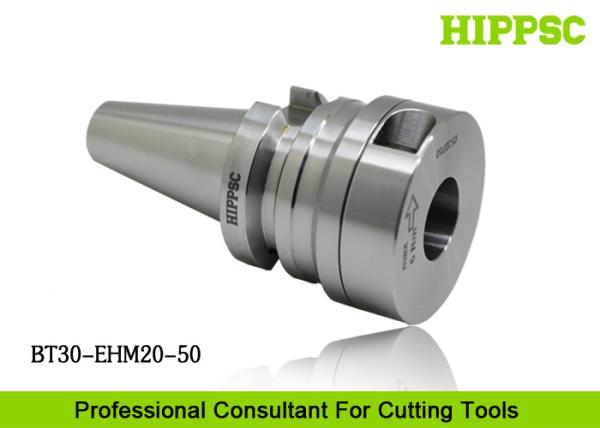

Hydraulic Expansions Tool Holders Short Clamping Shank BT30 - EHM20 - 50
Hydraulic Expansions Tool Holders Short Clamping Shank BT30 - EHM20 - 50
Hydraulic Expansions Tool Holders Short Clamping Shank BT30 - EHM20 - 50
Hydraulic Expansions Tool Holders Short Clamping Shank BT30 - EHM20 - 50
Hydraulic Expansions Tool Holders Short Clamping Shank BT30 - EHM20 - 50
Hydraulic Expansions Tool Holders Short Clamping Shank BT30 - EHM20 - 50
Hydraulic Expansions Tool Holders Short Clamping Shank BT30 - EHM20 - 50
Hydraulic Expansions Tool Holders Short Clamping Shank BT30 - EHM20 - 50
Specifications
Brand Name :
HIPPSC
Model Number :
BT30-EHM20-50
Certification :
ISO9001
Place of Origin :
Dongguan, China
MOQ :
1 pcs
Price :
Negotiable (Price term: EXW, FOB, CFR, CIF )
Payment Terms :
T/T, Western Union, Paypal, L/C
Supply Ability :
20000 pcs Per Month
Delivery Time :
2~30 Work days
Packaging Details :
Plastic Box with Inner PE Bag In Carton
OEM/ODM :
Yes
Spindle Type :
BT30
Product Type :
Cost Effective Hydraulic Expansion
Runout :
0.003mm
Balance :
Available
Material :
20CrNiMo
Application :
Electronics, automotive, die/mould and aerospace
Clam Diameter :
16mm
Collet Type :
OHM
Collet type :
Straight shank
Description

Hydraulic Expansions Tool Holders Short Clamping Shank BT30 - EHM20 - 50



Ⅰ​. Advantages

  1. Run-out ≤ 0.003mm.
  2. Vibration Dampening increases surface quality.
  3. Super Running And Repeat Accuacy.
  4. 360 degree and double positions clamping, improves tools' rigidity.
  5. The moment of force is very good.

Ⅱ. Technical Parametes ​

Product Name

Hydraulic Expansion Tool Holder

Spindle Type

BT30

Clamping Range

3mm~16mm (diameter)

Beat accuracy

< 0.003mm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

Special steel

Hardness

HRC58~60°


Ⅲ. Product Show


Hydraulic Expansions Tool Holders Short Clamping Shank BT30 - EHM20 - 50


Available Standard Items

Model number

D1

D2

d

L1

L2

M


Collet


Spanner

BT30-EHM20-50

51.5

46

20

50

23

M10*1.5

OHM20

T5

BT40-EHM20-41

51.5

63

20

41

14

OHM20

BT40-EHM25-41

58

63

25

41

14

/

BT40-EHM32-65

68.5

63

32

65

38

OHM32

BT50-EHM20-52

51.5

100

20

52

25

OHM20

BT50-EHM25-52

58

100

25

52

25

/

BT50-EHM32-52

68.5

100

32

52

25

OHM32

BT50-EHM40-58

86.5

100

40

58

31

/

BT50-EHM42-58

89

100

42

58

31


Collet specification sheet

Part Number D1 D2 L1 L2 d
HM12-3 12 16 44.5 2 3
-4 4
-5 5
-6 6
-7 7
-8 8
HM20-3 20 24 50.5 2 3
-4 4
-5 5
-6 6
-7 7
-8 8
-9 9
-10 10
-11 11
-12 12
-13 13
-14 14
-15 15
-16 16
HM32-6 32 36 60.5 3 6
-8 8
-10 10
-12 12
-14 14
-16 16
-18 18
-20 20
-25 25


Ⅳ. Products Overview

  • B30 Economical Hydraulic Chucks With High Regidity and Stability.
  • Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
  • Threaded/Screw-on/Thread Screw Tool Holders.
  • Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  • Morse Tap AdapterTools Holder.
  • Torque Tap/Tapping Chuck.
  • ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
  • Torque/Round/Circle Spanner Wrenche/Keys.
  • Edge finder/Tool Holder Tightening Fixture/Table.
  • CNC Indexable Cutting Tools.
  • Rapid Changing CNC Tool Bits.

Ⅴ​. Shipment​
By Sea; By Air.
By land transportation-By train, By truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

Main Material
PE Bag.
Plastic Box.
Carton Box.


Other Materials

Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse


1. We usually arrange delivery within 2 days for standard products from stock after payment received.
2. OQC and IQC are always used to control and exam products quality.
3. We have special test gauges and equipments to measure products technical data.

Hydraulic Expansions Tool Holders Short Clamping Shank BT30 - EHM20 - 50

Ⅷ. Warranty


12 Months warranty for free repairing and replacement.
