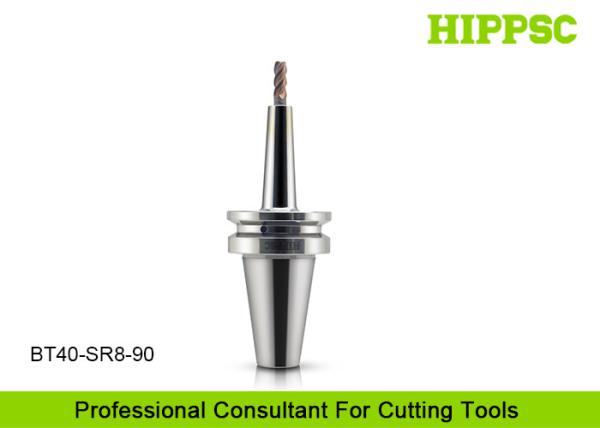

Igh Repeat Acccuracy Precision Tool Holders / Heat Shrink Fit Tool Holders For CNC Machine
Igh Repeat Acccuracy Precision Tool Holders / Heat Shrink Fit Tool Holders For CNC Machine
Specifications
Brand Name :
HIPPSC
Model Number :
BT40-SR8-90
Certification :
ISO9001
Place of Origin :
Dongguan, China
MOQ :
1 pcs
Price :
Negotiable (Price term: EXW, FOB, CFR, CIF )
Payment Terms :
T/T, Western Union, Paypal, L/C
Supply Ability :
5000 pcs Per Month
Delivery Time :
2~30 Work days
Packaging Details :
Plastic Box with Inner PE Bag In Carton
Runing Accuracy :
0.003mm
Machining :
Deep Hole Precision Machining
Spindle Type :
BT40
Material :
20CrNiMo
Taper :
7:24
Product Type :
BT40 Shrink Fit Tool Holder
Heat Time :
5 seconds
Description

Heat Shrinking Fit Tool Holders For BT40 CNC Machine With High Repeat Acccuracy



Ⅰ​. Features And Advantages


High regidity and stability, runout 0.003mm.

Durable, increase tool's life.

The toolholder clamp tools directly without collets or nuts, provides high accuracy.
High repeat accuracy, 2000 times more clamping tools.
Slim clamp part, this type holder is very suitable for hole making machining.

High surface quality and quick change tools, save time and cost.


Ⅱ. Technical Parametes ​

Product Name

Shrink Fit Tool Holder

Spindle Type

BT40

Clamping Range

8 mm

Runout

<0.003mm

Processing Type

Deep Hole Finishing Machining.

Product Material

Special steel

Hardness

HRC58~60°


Ⅲ. Product Introduction


Igh Repeat Acccuracy Precision Tool Holders / Heat Shrink Fit Tool Holders For CNC Machine

Standard Items

Model No. D1 D2 D3 L1 L2 L3
BT40-SR03-80 3 9 15.6 80 53 7.8
BT40-SR03-130 3 9 23.5 130 103 7.8
BT40-SR04-80 4 10.5 14.9 80 53 7.8
BT40-SR04-130 4 10.5 20.2 130 103 7.8
BT40-SR06-80 6 12 16 80 53 7.8
BT40-SR06-130 6 12 21.7 130 103 7.8
BT40-SR08-80 8 16 21 80 53 7.8
BT40-SR08-130 8 16 25.7 130 103 7.8
BT40-SR10-80 10 20 24.4 80 53 7.8
BT40-SR10-130 10 20 29.7 130 103 7.8
BT40-SR12-80 12 24 29 80 53 7.8
BT40-SR12-130 12 24 33.7 130 103 7.8
BT40-SR16-80 16 32 36.4 80 53 7.8
BT40-SR16-130 16 32 41.7 130 103 7.8
BT40-SR20-80 20 40 44.4 80 53 7.8
BT40-SR25-90 25 46 46 90 63 7.8
BBT30-SR03-75 3 9 15.6 75 54 7.8
BBT30-SR03-125 3 9 23.5 125 104 7.8
BBT30-SR04-75 4 10.5 14.9 75 54 7.8
BBT30-SR04-125 4 10.5 20.2 125 104 7.8
BBT30-SR06-75 6 12 16.4 75 54 7.8
BBT30-SR06-125 6 12 21.7 125 104 7.8
BBT30-SR08-75 8 16 20.4 75 54 7.8
BBT30-SR08-125 8 16 25.7 125 104 7.8
BBT30-SR10-75 10 20 24.4 75 54 7.8
BBT30-SR10-125 10 20 30 125 104 7.8
BBT30-SR12-75 12 24 28.4 75 54 7.8
BBT30-SR12-125 12 24 33.7 125 104 7.8
BBT30-SR16-75 16 32 36.4 75 54 7.8
BBT30-SR16-125 16 32 41.7 125 104 7.8
BT50-SR06-90 6 12 17 90 52 7.8
BT50-SR06-140 6 12 21.7 140 102 7.8
BT50-SR06-190 6 12 27 190 152 7.8
BT50-SR06-240 6 12 32 240 202 7.8
BT50-SR08-90 8 16 21 88 52 7.8
BT50-SR08-140 8 16 26 138 102 7.8
BT50-SR08-190 8 16 30.9 188 152 7.8
BT50-SR08-240 8 16 36 238 202 7.8
BT50-SR10-90 10 20 25 88 52 7.8
BT50-SR10-140 10 20 30 138 102 7.8
BT50-SR10-190 10 20 35 188 152 7.8
BT50-SR10-240 10 20 40 238 202 7.8
BT50-SR12-90 12 24 28.4 88 52 7.8
BT50-SR12-140 12 24 33.7 138 102 7.8
BT50-SR12-190 12 24 39 188 152 7.8
BT50-SR12-240 12 24 44 238 202 7.8
BT50-SR16-90 16 32 36.4 88 52 7.8
BT50-SR16-140 16 32 41.7 138 102 7.8
BT50-SR16-190 16 32 46.9 188 152 7.8
BT50-SR16-240 16 32 52 238 202 7.8
BT50-SR20-90 20 40 44.4 88 52 7.8
BT50-SR20-140 20 40 50 138 102 7.8
BT50-SR25-100 25 46 46 98 62 7.8
BT50-SR25-140 25 46 56 138 102 7.8
BT50-SR32-100 32 44 53 98 62 7.8

Igh Repeat Acccuracy Precision Tool Holders / Heat Shrink Fit Tool Holders For CNC Machine

Head Shrinking Machine


Ⅳ. Overview for HIPPSC Products

  1. BT40 90mm Clamping Shrink fit Tool Holder.
  2. High Speed ER/SK/GER/GSK Tool Holder for CNC Working.
  3. Threaded/Screw-on/Thread Screw Tool Holders.
  4. Back Lock/Side Lock Tool Holders.
  5. Tool Holders/Arbors/Shanks for Mirror Finishing.
  6. Morse Taper/Tapering Tool Holders/Shanks.
  7. Face Milling Adapters.
  8. Torque Floating Tap/Tapping Chuck and Collet.
  9. ER/SK/Hydraulic/Back lock/Floating tapping Collet
Ⅴ​. Shipmen​
By Sea; By Air; By Train/Truck.
TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1. Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2. All Materials and Products Must Be Inspected and Checked Strictly and Carefully
By IQC and OQC Operater Before Being Shipped Out.
3. Using Special Equipment and Gauge To Check Technical Parameters.
Igh Repeat Acccuracy Precision Tool Holders / Heat Shrink Fit Tool Holders For CNC Machine
Ⅷ. Manufacturing and Sales Service

1. Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2. OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3. Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
