Servo Motor Control Wire Forming Machine With 0.8 - 4.2 Mm Spring Material
Servo Motor Control Wire Forming Machine With 0.8 - 4.2 Mm Spring Material
Servo Motor Control Wire Forming Machine With 0.8 - 4.2 Mm Spring Material
Servo Motor Control Wire Forming Machine With 0.8 - 4.2 Mm Spring Material
Servo Motor Control Wire Forming Machine With 0.8 - 4.2 Mm Spring Material
Servo Motor Control Wire Forming Machine With 0.8 - 4.2 Mm Spring Material
Servo Motor Control Wire Forming Machine With 0.8 - 4.2 Mm Spring Material
Servo Motor Control Wire Forming Machine With 0.8 - 4.2 Mm Spring Material
Specifications
Port :
Shenzhen,China
Model Number :
HYD-40T-3A
Price :
Negotiable
Payment Term :
T/T
Supply Ability :
L/C, D/A, D/P, T/T, Western Union,
Axis :
Three Axes
MOQ :
1 Set
Delivery Time :
15 Days
Delivery time :
15 days
Payment Terms :
Negotiable,T/T,L/C
Optional Axis :
Two more
System :
English/Chinese
Certification :
CE / IS09001
Brand Name :
HYD
Packaging Details :
Standard Seaworthy Plywood Case
Place of Origin :
Dongguan,China
Description
Servo Motor Control Wire Forming Machine With 0.8 - 4.2 Mm Spring Material
Advanced CNC spring forming machine combining precision servo-motion control with mechanical efficiency for high-quality spring production.
Key Features
  • Precision CNC controlled servo-motion system with mechanical convenience
  • Custom-designed tooling for bending, coiling, pitching, forming, and cutting operations
  • Multi-axis configuration including Cam axis, Feeding axis, Quill Rotary axis, and optional Spinner axis
Technical Specifications
Wire Size 0.8~4.2mm
Maximum Outer Diameter 60mm
Wire Feeding Speed 0~110m/min
Transmission Speed Cam 0~60RPM
Wire Feed Servo Motor 5.5KW
Cam Servo Motor 5.5KW
Rotary Servo Motors 1.0KW
Machine Dimensions 1600×1300×1900mm
Machine Weight 1800kg

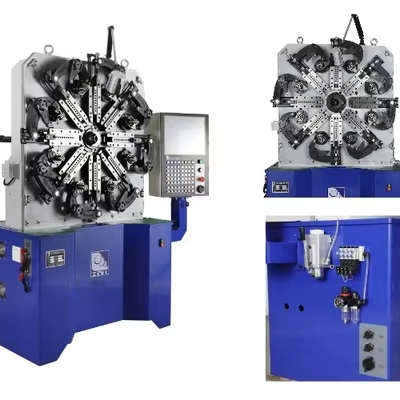

Machine Overview
Servo Motor Control Wire Forming Machine With 0.8 - 4.2 Mm Spring Material
Servo Motor Control Wire Forming Machine With 0.8 - 4.2 Mm Spring Material
Sample Production
Servo Motor Control Wire Forming Machine With 0.8 - 4.2 Mm Spring Material
Servo Motor Control Wire Forming Machine With 0.8 - 4.2 Mm Spring Material
Service & Support
  • Durable machine quality with professional technical service
  • Free production solutions from experienced HYD engineering team
  • Warm welcome for customer visits, inspections, and training sessions
