High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler
High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler
High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler
High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler
High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler
High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler
Specifications
Model Number :
HYD-20T-3A
MOQ :
1 Set
Delivery Time :
15 Days
Cutting tool :
Standard
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Axis :
Three to Four Axes
Decoiler :
100KG
Price :
Negotiable
Power Supply :
380V 50Hz
Supply Ability :
30 sets one week
Wire Diameter :
0.2-2.3mm
CNC system :
Automatic
Certification :
CE / IS09001
Brand Name :
HYD
Packaging Details :
Standard Seaworthy Plywood Case
Place of Origin :
Dongguan,China
Description
High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler
Advanced Spring Manufacturing Solution
This high-performance CNC spring forming machine features precision engineering with Taiwanese CNC control systems and Japanese Sanyo/Yaskawa servo motors for superior synchronization and accuracy.
Machine Configuration & Capabilities
Available in 3 or 4-axis configurations with comprehensive control over cam axis, feeding axis, quill rotary axis, and optional spinner axis.
  • Compression springs
  • Extension springs
  • Single and double torsion springs
  • Tower shaped compression springs
  • Flat wire springs
  • Custom wire forms
Technical Specifications
Wire Size Range 0.2 - 2.3mm
Maximum Feeding Speed 141 m/min
Direct Storage Programs 1000
X-axis Motor Output 2.7 KW
Y-axis Motor Output 2.7 KW
Z-axis Motor Output 1.0 KW
Machine Dimensions 1400 × 900 × 1600 mm
Operating Voltage 380V
Machine Weight 700 kg
Product Images

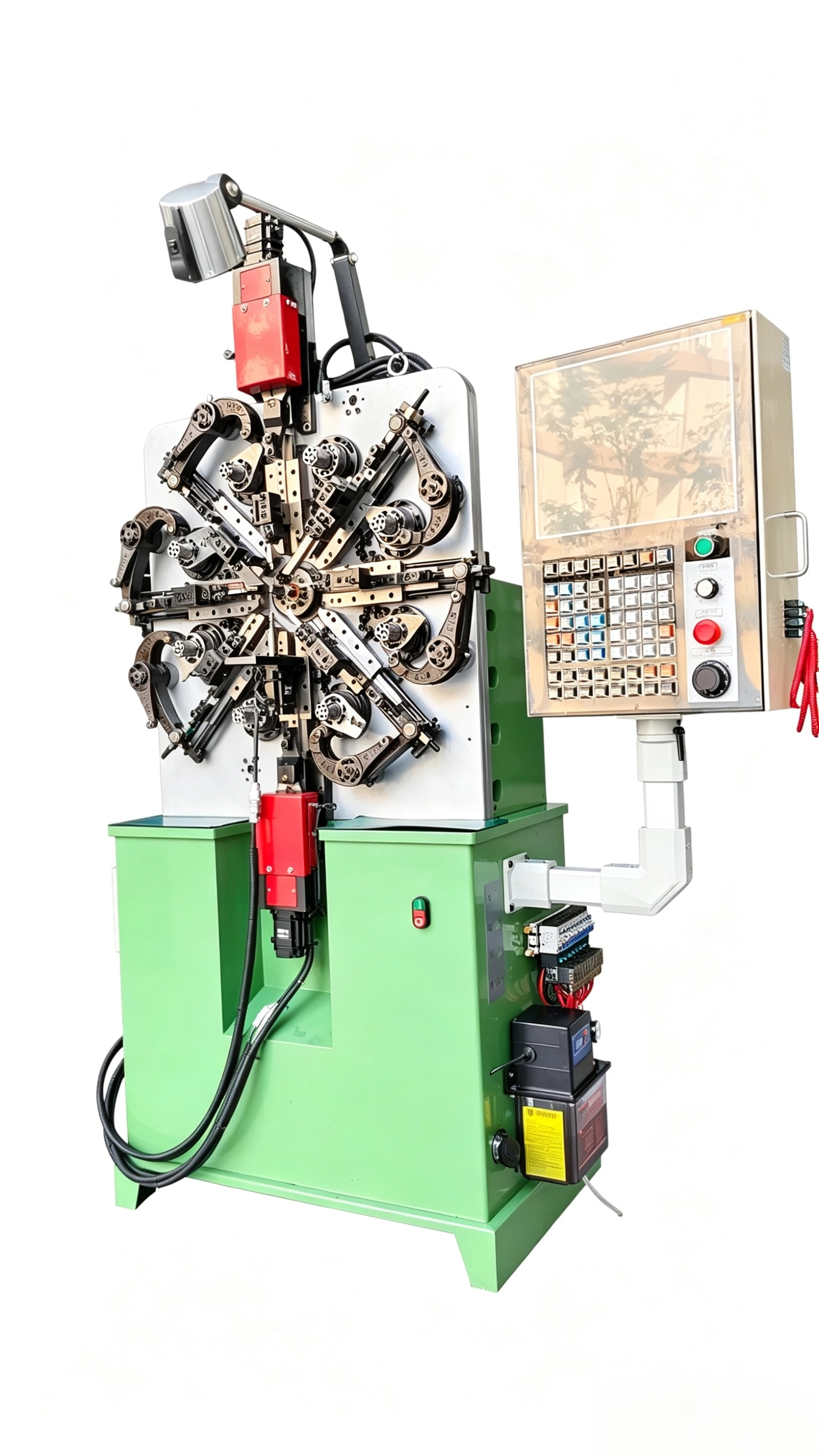

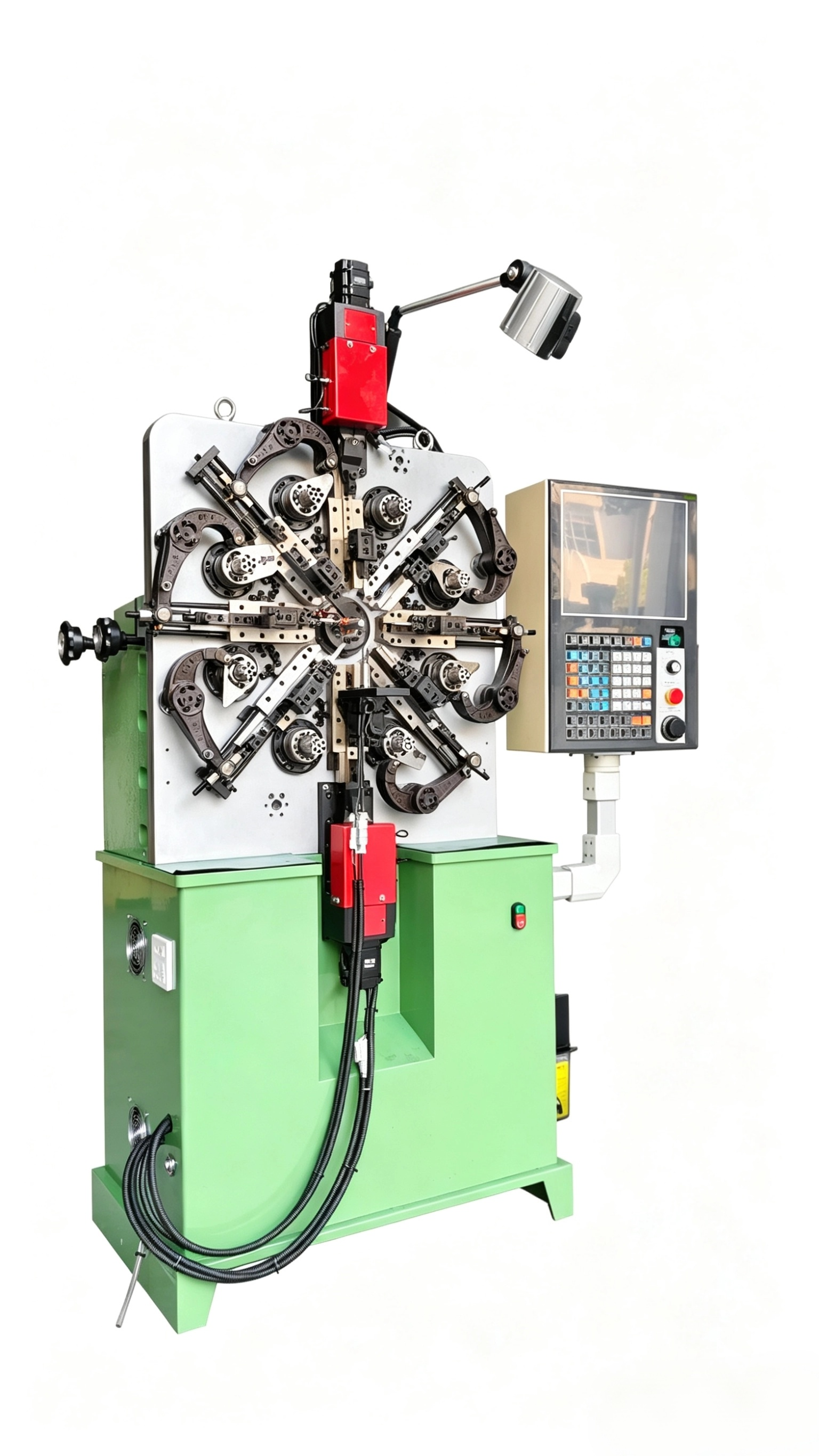

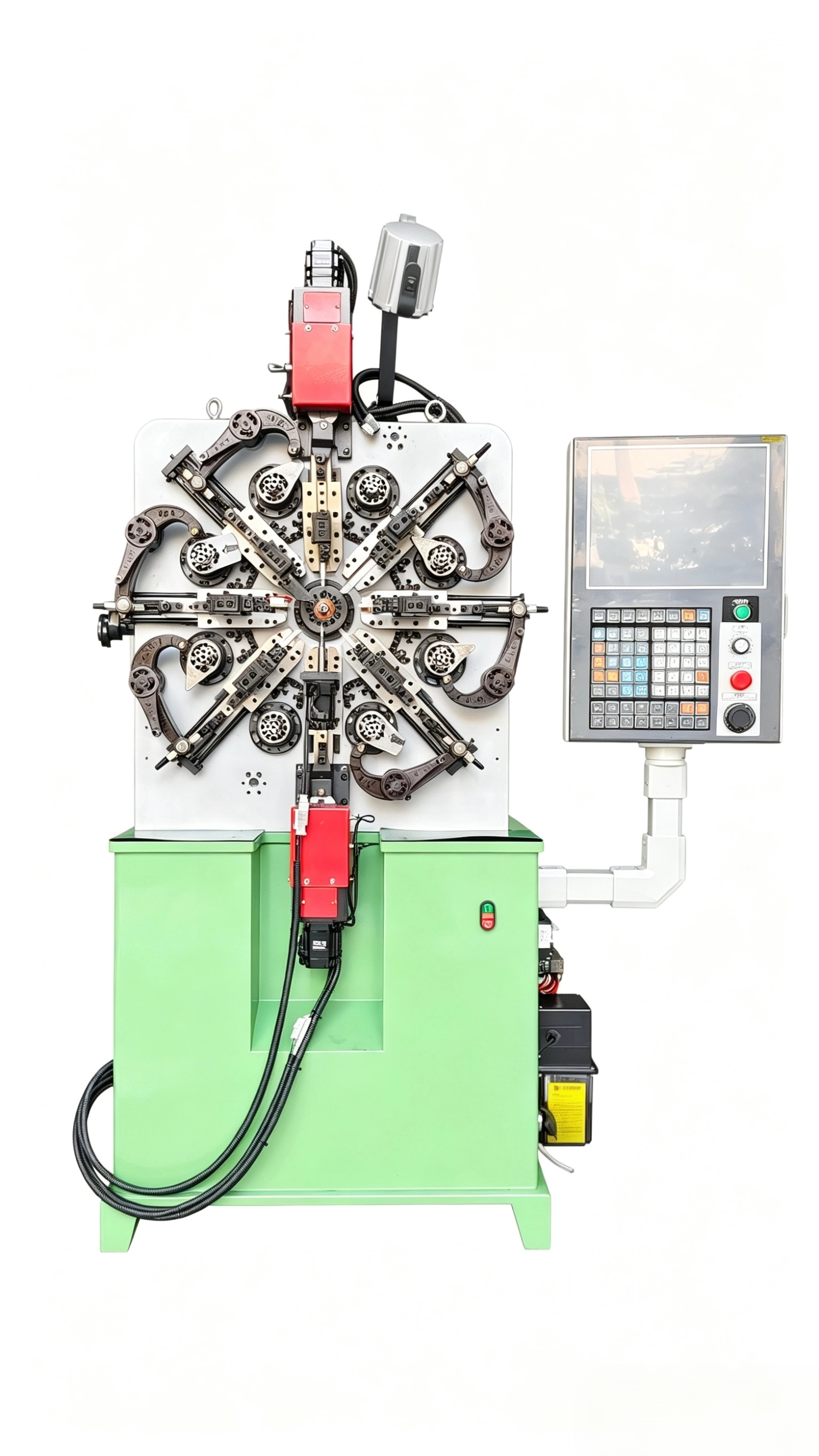

High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler
Manufacturing Excellence
HYD combines production and sales expertise with over 15 years of experience in the spring machine industry. As an experienced and reliable supplier, we specialize in manufacturing CNC spring machines, wire bending machines, and spring coiling machines - all featuring advanced CNC automation technology.
