CNC Computer Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
CNC Computer Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
CNC Computer Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
CNC Computer Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
CNC Computer Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
CNC Computer Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
CNC Computer Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
CNC Computer Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
CNC Computer Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
CNC Computer Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
Specifications
Model Number :
HYD-80-10A
Payment Terms :
Negotiable,L/C,T/T
Optional Tools :
Additional axes
Price :
Negotiable
Servo Motor :
Sanyo
Port :
Shenzhen,China
MOQ :
1 Set
Delivery Time :
30 Days
Supply Ability :
20 Pcs Per Month
Wire Diameter :
High-Carbon Steel:2-8mm
Brand Name :
HYD
Certification :
CE / IS09001
Place of Origin :
Dongguan,China
Packaging Details :
Standard Seaworthy Plywood Case
Description

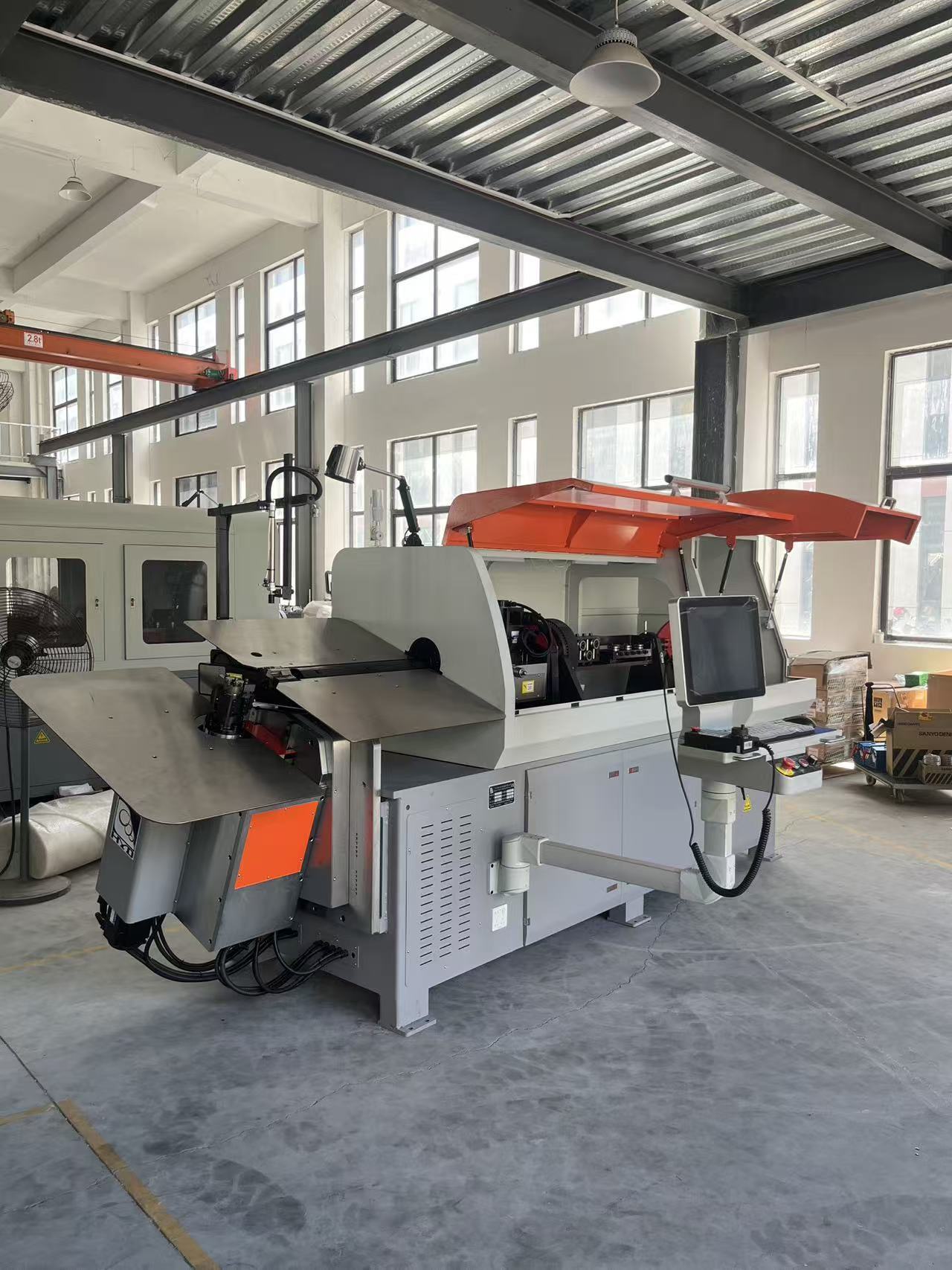

CNC Computer Spring Steel 2-8mm 3D CNC Wire Bender
Advanced CNC wire bending machine designed for precision forming of spring steel wires from 2mm to 8mm diameter with stable, reliable performance and integrated CNC system.
Technical Specifications
Maximum Feeding Speed 80 m/min
Wire Size Range Low Carbon Steel: 3-8mm
High Carbon Steel: 2-5mm
Control System 1 set
Wire Feeding Axis Count 3 pairs
3D Maximum Dimension 1000 × 1000 × 600mm
Minimum Bend Radius 4 times wire diameter
Pallet Size 1000 × 600 × 4mm
Machine Dimensions 3500 × 1000 × 1800mm
Weight 3500kg
CNC Computer Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
CNC Computer Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
CNC Computer Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
CNC Computer Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
CNC Computer Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
Machine Features
  • Movable wire feed system allows continuous forming without wire retraction
  • Enhanced stability during bending operations for consistent results
  • Extended production capability for long wire components
  • Larger forming workspace for complex 3D geometries
  • Improved operational convenience and efficiency
HYD Service & Support
  • Comprehensive shipping services including booking, container loading, and documentation
  • Technical support via email and phone with on-site technician availability when needed
  • Free spare parts during one-year guarantee period, available at original cost thereafter
Sample Wire Forms
CNC Computer Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
CNC Computer Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
CNC Computer Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
