0.8 - 4.2mm Steel Automatic Wire Bending Machine CNC Multifunction Forming
0.8 - 4.2mm Steel Automatic Wire Bending Machine CNC Multifunction Forming
0.8 - 4.2mm Steel Automatic Wire Bending Machine CNC Multifunction Forming
0.8 - 4.2mm Steel Automatic Wire Bending Machine CNC Multifunction Forming
0.8 - 4.2mm Steel Automatic Wire Bending Machine CNC Multifunction Forming
0.8 - 4.2mm Steel Automatic Wire Bending Machine CNC Multifunction Forming
0.8 - 4.2mm Steel Automatic Wire Bending Machine CNC Multifunction Forming
0.8 - 4.2mm Steel Automatic Wire Bending Machine CNC Multifunction Forming
0.8 - 4.2mm Steel Automatic Wire Bending Machine CNC Multifunction Forming
0.8 - 4.2mm Steel Automatic Wire Bending Machine CNC Multifunction Forming
0.8 - 4.2mm Steel Automatic Wire Bending Machine CNC Multifunction Forming
0.8 - 4.2mm Steel Automatic Wire Bending Machine CNC Multifunction Forming
Specifications
Model Number :
HYD-40T-3A
Optional Tools :
Machine hand
MOQ :
1 Set
Delivery Time :
25 days
Max Outside Diameter :
Max 60mm
Payment Terms :
Negotiable
Machine Dimension :
1600*1300*1900
Price :
Negotiable
Motor Brand :
Japan
Certification :
CE / IS09001
Payment Term :
T/T
Supply Ability :
L/C, D/A, D/P, T/T, Western Union,
Wire Feed Speed :
0~110m/min
Brand Name :
HYD
Machine Weight :
1800KG
Place of Origin :
Dongguan,China
Packaging Details :
Standard Seaworthy Plywood Case
Description
0.8 - 4.2mm Steel Automatic Wire Bending Machine CNC Multifunction Forming
Advanced CNC Wire Bending & Spring Forming Machine
CNC Spring Machine Certificate.pdf
Model Options: HYD-40T-3A (without wire rotation function), HYD-40T-12A (with wire rotation function). Custom configurations available to meet specific customer requirements.
Spring outside diameter adjustment is easily accomplished through program settings, with the outside diameter axis operating independently for precise control.
Technical Specifications
Wire Diameter Range 0.8~4.2mm
Maximum Outside Diameter 60mm
Wire Feeding Speed 0~110m/min
Transmission Speed Cam 0~60RPM
Wire Feed Servo Motor 5.5KW
Cam Servo Motor 5.5KW
Rotary Servo Motors 1.0KW
Machine Dimensions 1600×1300×1900mm
Machine Weight 1800kg

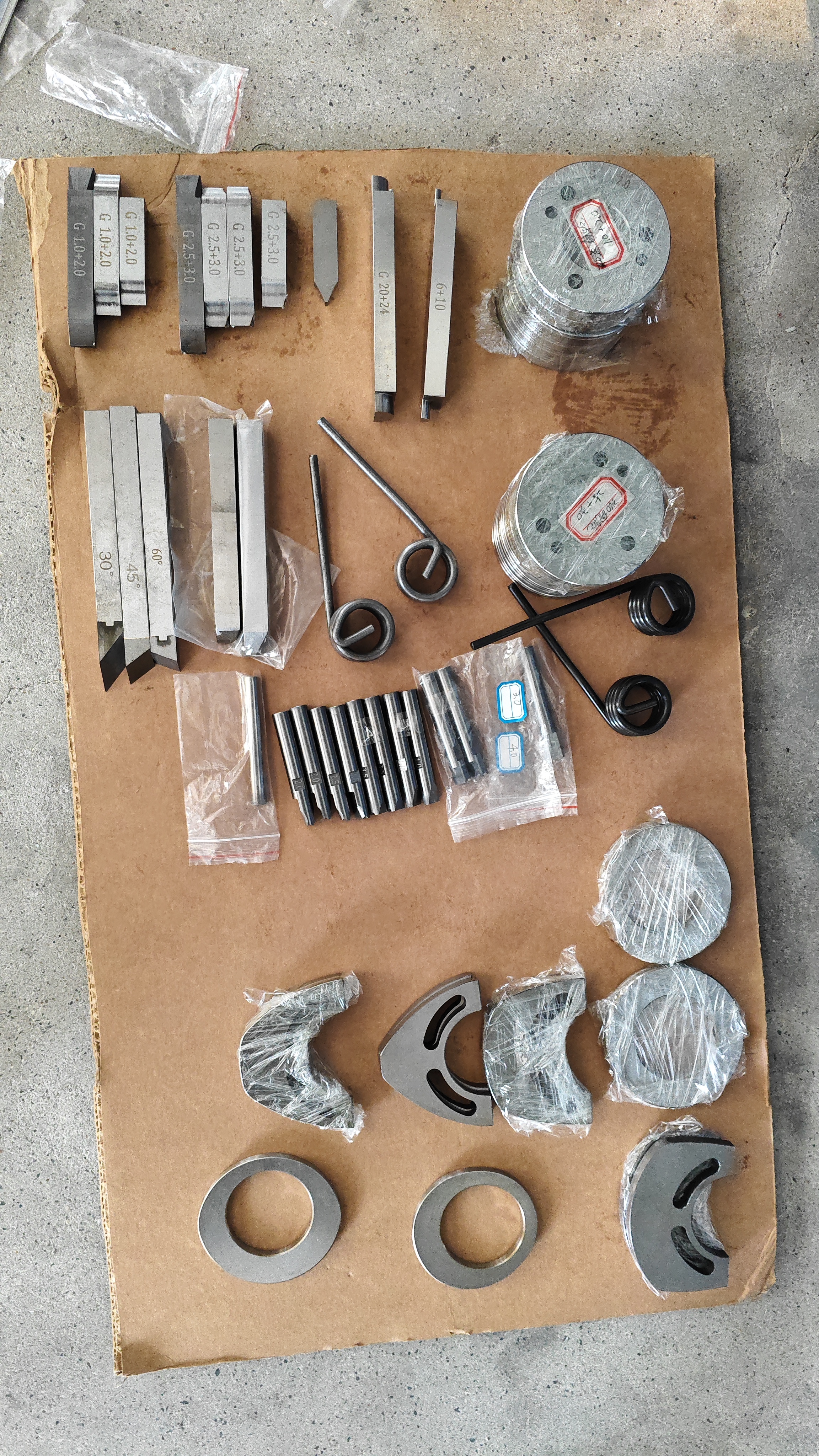

Product Samples
0.8 - 4.2mm Steel Automatic Wire Bending Machine CNC Multifunction Forming 0.8 - 4.2mm Steel Automatic Wire Bending Machine CNC Multifunction Forming 0.8 - 4.2mm Steel Automatic Wire Bending Machine CNC Multifunction Forming
After-Sales Service & Support
  • Free installation and training services at HYD company facilities
  • Efficient online response and technical support
  • Comprehensive technical support, installation, and machine training
Technical Support Solutions
  • Online troubleshooting via telephone, Skype, WhatsApp with HYD specialists
  • Efficient solutions for operational issues and consumable part replacement
  • Comprehensive training on part replacement procedures
