Specifications
Supply Ability :
10 sets/ 2 months
Wire size :
1-4mm
Certification :
CE
Place of Origin :
Dongguan, China
Model Number :
HYD-40T-10A
Guide Rail :
stoke 120mm
MOQ :
1 sets
Delivery Time :
30-40 days
Bearing :
NSK
Payment Terms :
L/C,T/T,Western Union,Cash
Process wire :
Carbon steel/ Stainless steel/ Music/ Cooper/ Iron/ Aluminium
Claws :
7-8
Price :
USD 25860-38000
Make product :
Tension/ torsion/ compression/ specail shape spring, wire formings
Reducer :
9
Packaging Details :
Plywood Case
Brand Name :
HYD
Description
High Precision Multi Function CNC Spring Machine
Professional spring maker machine equipment for wire sizes from 1.0-4.0mm with advanced CNC control system.
Key Features
  • Durable gears and guide rails for long-term reliability
  • High-performance Japanese servo motors
  • Cost-effective durable tools, bearings and spare parts
  • Flexible wire feed structure with 4 groups of wire feeding wheels, 2 sets of straightener wheels and wire rotary function
  • User-friendly Chinese and English CNC system for easy operation and training
  • 360° wire rotary device and quill for precise angle and shape adjustment
  • Integrated dome light for spring commissioning
  • Electromagnetic valve for probe or air cylinder installation
  • Side power socket for additional device integration
  • Built-in air conditioner for temperature control and extended machine life
  • Customizable transformer for specific voltage requirements
  • Optional 200kg or 500kg decoiler tray
Technical Specifications
HYD-40T-10A Twelve-axes Cam-less Spring Machine
Model HYD-40T-10A
Axis Count 10 Axes
Wire Size Range Low carbon steel: 2-6mm
High-carbon steel: 1-4.2mm
Lead Rail Distance of 100mm
Wire Feeding Count 4 pairs
Max Feeding Speed 100m/min
Maximum Error ±0.05mm (length)
Control System + Decoiler 1 set
Servo Motor Power 22.5KW
Minimum Length of Angle 4 times wire diameter
Machine Size 1100×1300×1920mm
Machine Weight 2000KG

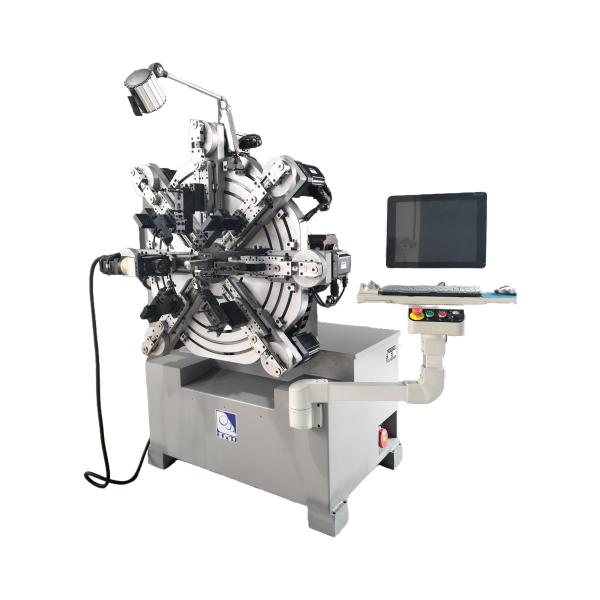

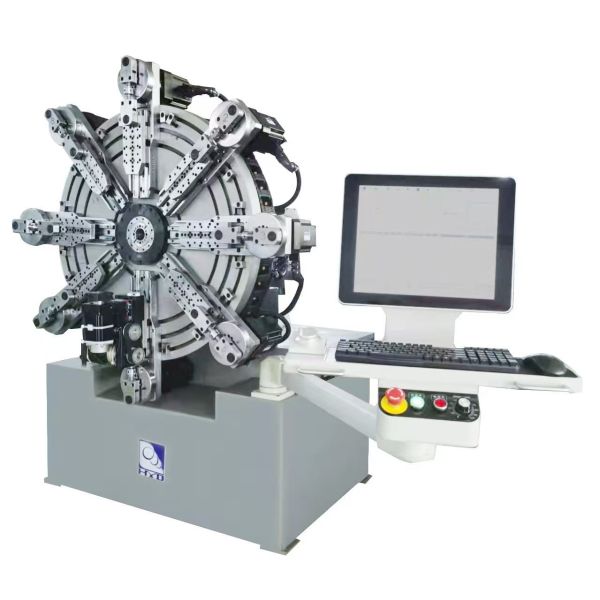

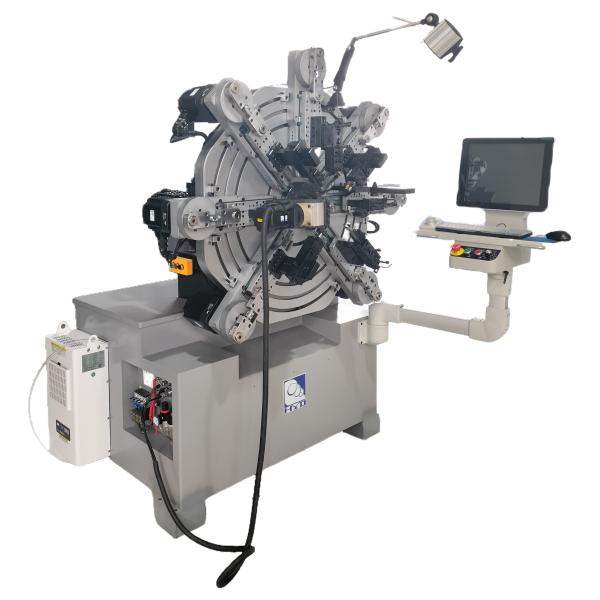

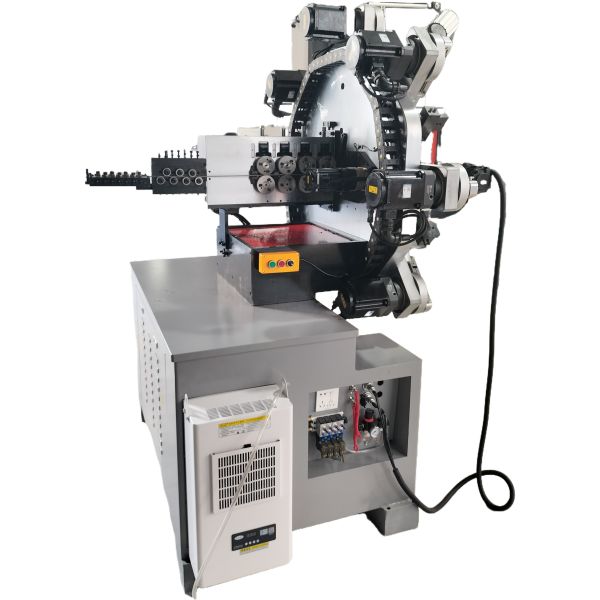

Product Images
1.0-4.0mm High Precision Multi Function CNC Spring Machine spring maker machine equipment 1.0-4.0mm High Precision Multi Function CNC Spring Machine spring maker machine equipment 1.0-4.0mm High Precision Multi Function CNC Spring Machine spring maker machine equipment 1.0-4.0mm High Precision Multi Function CNC Spring Machine spring maker machine equipment 1.0-4.0mm High Precision Multi Function CNC Spring Machine spring maker machine equipment
