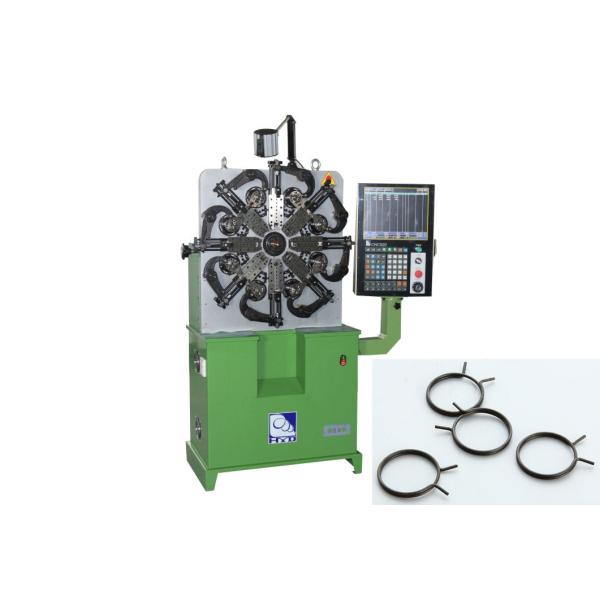

141m / Min Feeding Speed CNC Spring Former With Front Rotation Function
141m / Min Feeding Speed CNC Spring Former With Front Rotation Function
Specifications
Brand Name :
HYD
Model Number :
HYD-20T-3A
Certification :
CE / IS09001
Place of Origin :
Dongguan,China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
15 Days
Packaging Details :
Standard Seaworthy Plywood Case
Wire Diameter :
0.2-2.3mm
Axis :
Five Axes
Additional Axes :
Spinner/Machine hand
Manufacturing Period :
15 Days
Description

Cam CNC Wire Bending Machine and Spring Forming Machine with Front Rotation Function

----Windows screen operation.

-----Equipped with standard bells and whistles such as rotary wire, rotary quill, spinner and 6 forming blades

----The space can be adjusted by two methods easily and flexibly: cam inclined knife and shaft pushing.

----The spring outside diameter can be adjusted easily by means of setting the program and the outside
diameter axis is working independently.

Wire size 0.2-2.3mm
Max feeding speed 141m/min
Direct storage programs 1000
X-axis motor output 2.7KW
Y-axis motor output 2.7KW
Z-axis motor output 1.0KW
Machine size 1400*900*1600mm
Voltage 380V
Weight 700kg

Product141m / Min Feeding Speed CNC Spring Former With Front Rotation Function
