Specifications
standard :
Japan JIS
Applicable Industries :
hotels
Brand Name :
TJR
Condition :
New
weight (kg) :
100
video outgoing-inspection :
Provided
machinery test report :
Provided
warranty :
3 Years
structure :
worm gear
Machine Type :
Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine, Boring Machine, turning machine, shaping machine, planning machine
Place of Origin :
Guangdong, China
MOQ :
1
Description

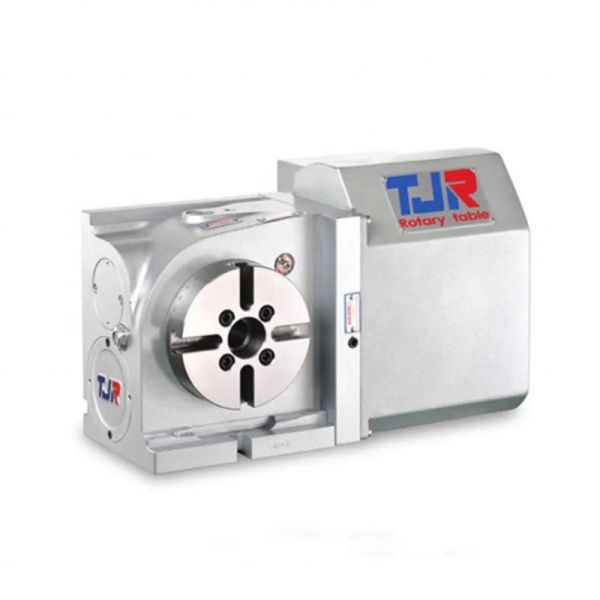

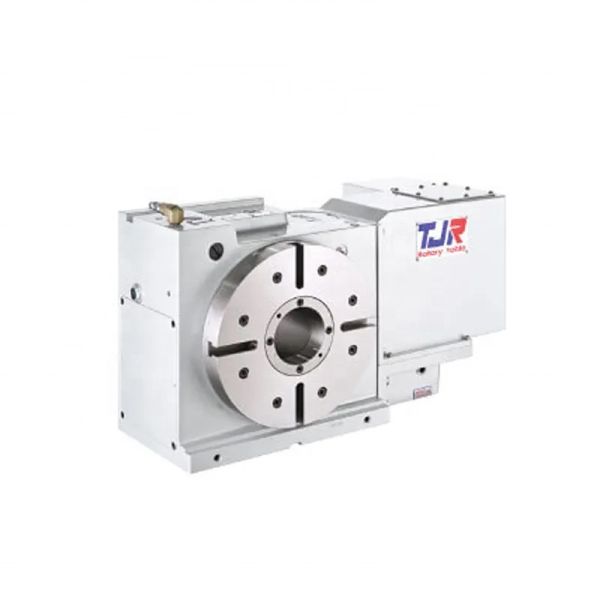

TJR Worm Gear Rotary Tilting Table AR(s)-125R/AR(s)-170R
TJR Worm Gear Rotary Tilting Table AR(s)-125R/AR(s)-170R
Product Characteristics
  • The worm shaft is made of case-hardened steel, featuring a specially designed and profile-corrected gear arrangement for higher efficiency, higher load carrying capacity, and precise accuracy
  • The worm gear is made of a special non-ferrous alloy with high anti-wearing properties
  • A unique profile on worm gear ensures improved gear engagement between the worm gear and worm shaft while guaranteeing improved accuracy, lesser wear & tear, and uniform load distribution
  • This transmission mechanism is used in all standard 4th axis and 5th axis worm gear rotary tables
Technical Parameters
TJR Worm Gear Rotary Tilting Table AR(s)-125R/AR(s)-170R TJR Worm Gear Rotary Tilting Table AR(s)-125R/AR(s)-170R TJR Worm Gear Rotary Tilting Table AR(s)-125R/AR(s)-170R
Item/Model Unit AR(s)-125R AR(s)-170R
Table Diameter mm Ø 125 Ø 170
Diameter of Table Central Hole mm Ø 35H7 Ø 67
Inner Diameter of Mandrel Sleeve mm - Ø 40H7
Diameter of Center Through Hole mm Ø 25 Ø 40
Center Height (Vertical) mm 110 135
Table Height (Horizontal) mm 152 152
Table T-slot Width mm 12H7 12H7
Guide Block Width mm 14h7 18h7
Min. Increment deg. 0.001 0.001
Indexing Precision sec. 40 20
Repeatability sec. 6 6
Clamping System (Pneumatic) kg/cm² 6 6
Clamping Torque kg-m 13 31
Servo Motor Model FANUC Taper shaft Taper shaft
MITSUBISHI Taper shaft Taper shaft Taper shaft
Speed Reduction Ratio - 1:60 1:90
Max. Rotation Rate of Table (Calculate with Fanuc α Motor) r.p.m 83.3 *(33.3) 44.4 *(33.3)
Allowable Inertia Load Capacity (Horizontal) kg.cm.sec² 2 5.4
Allowable Workpiece Load Vertical 50 75
with Tailstock kg 100 150
Horizontal kg 100 150
Allowable Load(with Rotary Table Clamping) F 1000 1450
FxL kgf.m 45 110
FxL kgf.m 13 31
Strength of worm gears kg.m 9 *(3.7) 18 *(14.6)
Net Weight (servo motor excluded) kg 34 50
* Values in parentheses indicate alternative specifications or operating conditions
