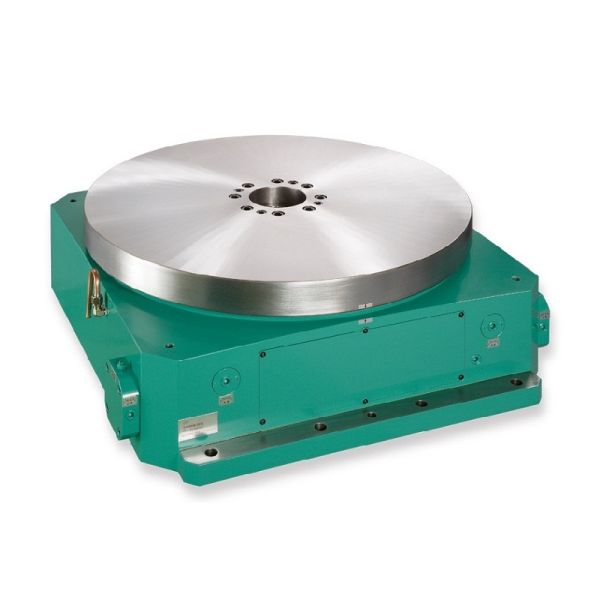

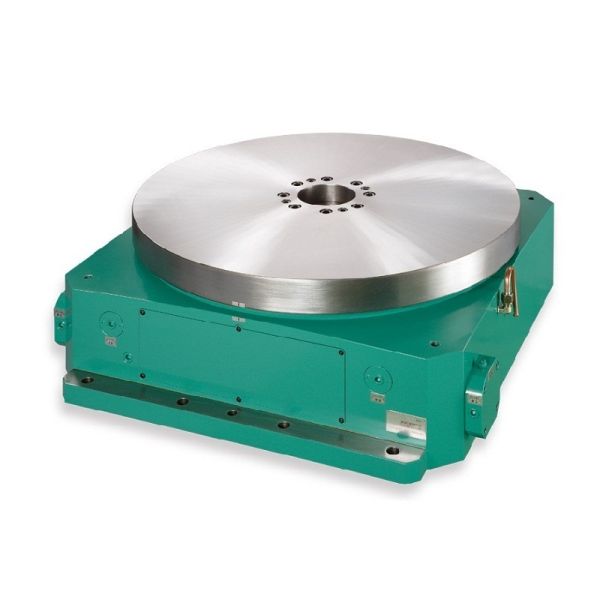

Rapid Indexing Hydraulic Rotary Indexing Table Delivering 2.0 10.0 Second 90 Degree Cycle Plus 0.01 mm Runout Tolerance
Rapid Indexing Hydraulic Rotary Indexing Table Delivering 2.0 10.0 Second 90 Degree Cycle Plus 0.01 mm Runout Tolerance
Rapid Indexing Hydraulic Rotary Indexing Table Delivering 2.0 10.0 Second 90 Degree Cycle Plus 0.01 mm Runout Tolerance
Rapid Indexing Hydraulic Rotary Indexing Table Delivering 2.0 10.0 Second 90 Degree Cycle Plus 0.01 mm Runout Tolerance
Specifications
Price :
Negotiable
MOQ :
1set
Place Of Origin :
Dongguan,China
Application :
Machining, Assembly, Automation
Model Number :
HCT Series/HCTV Series
Perpendicularity & Guide Block Related Tolerance :
0.02 Mm (Vertical Models Only)
Allowable Load Capacity :
95 ~ 2400 Kg
Certification :
ISO9001,CE
Delivery Time :
According To Customer Needs
90° Indexing Time :
2.0 ~ 10.0 S
Supply Ability :
1000set/month
Table Top Runout :
0.01 ~ 0.02 Mm
Brand Name :
JuZhuo
Productname :
Hydraulic Indexing Rotary
Packaging Details :
Wooden Box
T-Slot Width :
12H7 / 14H7 Mm (Vertical Models Only)
Center Hole Diameter :
Φ30 ~ Φ120 Mm
Payment Terms :
T/T
Description
Machining Hydraulic Indexing Rotary
Product Overview
The Hydraulic Indexing Rotary is a high-precision hydraulic rotary positioning system designed for exceptional performance in industrial applications. Engineered with advanced technology, this rotary indexing module provides precise and efficient angular positioning for automation, machining, and assembly processes.
Key Features
  • Product Name: Hydraulic Indexing Rotary Unit
  • Type: Rotary Table
  • Table Diameter: Φ200 ~ Φ800 mm
  • Table Top Flatness: 0.015 ~ 0.02 mm
  • Working Hydraulic Pressure: 30 ~ 35 Kg/cm²
  • Center Through Hole Diameter: Φ27 ~ Φ800 mm
  • High precision hydraulic rotary positioning system
  • Durable hydraulic indexed rotary mechanism
Technical Specifications
Parameter Specification
Type Rotary Table
Load Torque (F×H) 55~1950 Kgf*m / 541~19110 N*m
Table Top Runout 0.01 ~ 0.02 mm
Center Through Hole Diameter Φ27 ~ Φ800 mm
Vertical Center Height 155 ~ 310 mm (Vertical Models Only)
90° Indexing Time 2.0 ~ 10.0 s
Hydraulic Port Size PT3/8
Rotation Angle 0-360 Degrees
Application Machining, Assembly, Automation
Material High-strength Steel
Rapid Indexing Hydraulic Rotary Indexing Table Delivering 2.0 10.0 Second 90 Degree Cycle Plus 0.01 mm Runout Tolerance
Applications
The JuZhuo Hydraulic Indexing Rotary Unit is widely used in assembly lines, machining centers, packaging machines, and automated production systems. Its precise rotational positioning and secure clamping make it ideal for automotive manufacturing, aerospace, electronics, and heavy machinery production.
Customization Options
JuZhuo offers customized hydraulic precision indexing rotary solutions with HCT Series and HCTV Series models. Features include center hole diameters from Φ30 to Φ120 mm, permissible instant inertia from 1.75 to 300 Kg*m², and clamping torque between 108 and 4000 Kgf*m.
Support & Services
Comprehensive technical support includes installation assistance, operation guidance, and troubleshooting. We provide detailed documentation, maintenance services, and engineering support for customization needs to ensure optimal performance and longevity.
Frequently Asked Questions
What brand manufactures the Hydraulic Indexing Rotary?
Manufactured by JuZhuo
What models are available?
HCT Series and HCTV Series
Where is it produced?
Dongguan, China
What certifications does it have?
ISO9001 and CE certified
What are the order terms?
Minimum order: 1 set, Payment: T/T, Supply: 1000 sets/month
