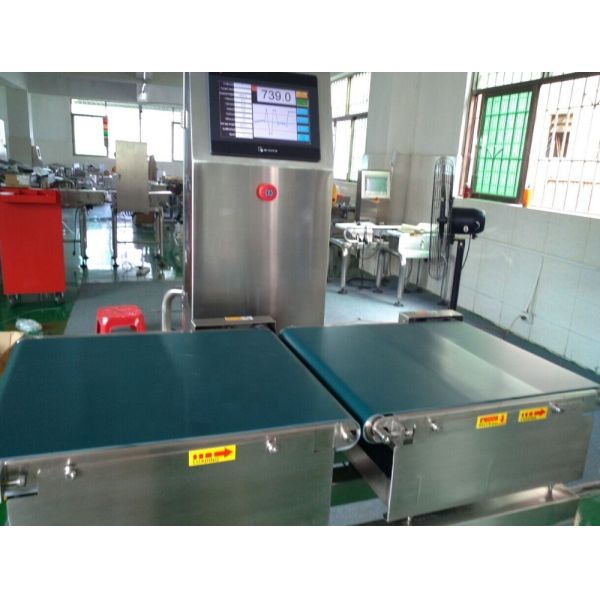

Portable Weight Checking Machine Checkweigher Automatic Weighing System Equipment JZ-W3kg

Specifications

Place of Origin :

Guangdong, China

waterproof :

IP66

belt material :

Brand Name :

JUZHUO

warranty :

Model Number :

JZ-W3kg

customized support :

OEM, ODM, OBM

conveyor belt size :

1800L*500W*1600H mm

MOQ :

belt color :

customized

Machine material :

SUS304

display type :

10" color touch screen

conveyor speed :

13-96meter/minutes

accuracy :

+/-1grams

Power Supply :

220V

Description

Manufacturer Weight Checking Machine, Checkweigher, Automatic Check Weigher JZ-W3kg

Product Overview

The Automatic Check Weigher JZ-W3kg is designed to verify whether individual package weights conform to preset specifications. The system automatically identifies and removes overweight and underweight products using various rejection devices, while qualified packages proceed to the next equipment in the production line.

Key Features

PLC and 10\" color touch screen with intelligent compact design
Automatic program setting adjustment for enhanced stability and ease of operation
HBM load cell (original from Germany) ensures high accuracy and stability
Solid SUS304 structure provides stable performance and precise weighing
Multiple rejection options: reject arm, air blast, or pneumatic pusher
Tool-free belt disassembly for easy cleaning and maintenance
Emergency switch installation for user-friendly operation
Optional arm device for clear production situation display
Capable of recording up to 10 different product parameters

Technical Specifications

Model	JZ-W3kg
Control System	10\" color touch screen
Weighing Range	30-3000 grams
Conveyor Speed	13-96 meters/min
Maximum Throughput Capacity	180 bags/min
Accuracy	±1 grams
Product Size	60<L<420mm; 30<W<250mm; 10<H<330mm
Minimum Scale	0.1 grams
Weigh Belt	500L × 300W mm
Conveyor Height	750mm ±50mm
Auto Rejector System	Reject Arm / Air Blast / Pneumatic Pusher / Divided-flow Style
Waterproof Rating	IP66
Power Supply	220V/50HZ or 60HZ Single Phase
Machine Material	304 Stainless Steel
Interface	Weight transmission to ink-jet printer (requires customer protocol)
Packing Dimension	1800L × 500W × 1600H mm
Gross Weight	150 KG
