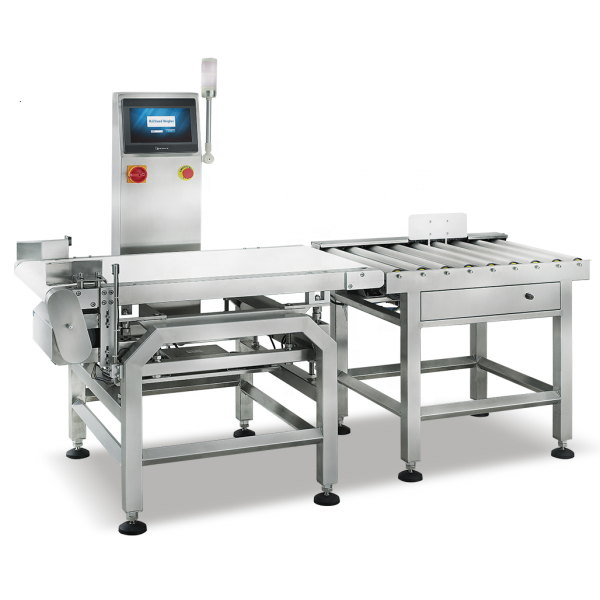

Bagged Chemical Fertilizer Industrial Belt Type Conveyor Checkweigher Weighing System JZ-W25kg

Specifications

Place of Origin :

Guangdong, China

customized support :

OEM, ODM, OBM

accuracy :

+/-5grams

machine material :

SUS304

Power Supply :

220V

certification approval :

ISO9001,HACCP,CE

warranty :

3 Years

belt material :

PU(food grade)

belt color :

customized

MOQ :

conveyor speed :

13~78m/minutes

weighing belt size :

600mmL*400Wmm

waterproof :

IP66

display type :

10" color touch screen

Model Number :

JZ-W25kg

Brand Name :

JUZHUO

Description

Manufacturer Check Weigher for Chemical Fertilizer Bag JZ-W25kg

Product Overview

Check Weigher JZ-W25kg is used to verify whether individual package weights conform to preset specifications. The system automatically removes overweight and underweight products using various rejection devices, allowing qualified bags to proceed to the next equipment.

Key Features

PLC and 10\" color touch screen with intelligent compact design
Auto program setting adjustment for enhanced stability and ease of operation
HBM load cell (original from Germany) ensures high accuracy and stability
Solid SUS304 structure provides stable performance and precise weighing
Multiple rejection options: reject arm, air blast, or pneumatic pusher
Tool-free belt disassembly for easier cleaning
Emergency switch installation for user-friendly operation
Optional arm device for clear production situation display
Capability to record up to 10 different product parameters

Technical Specifications

Model	JZ-W25kg
Control System	10\" color touch screen
Weighing Range	50-25000 grams
Conveyor Speed	13-78 meter/min
Maximum Throughput Capacity	500 bags/min
Accuracy	±5 grams
Product Size	60<L<420mm; 30<W<380mm; 10<H<430mm
Minimum Scale	0.5 grams
Weigh Belt	600mmL × 400mmW
Conveyor Height	750mm ±50mm
Auto Rejector System	Reject Arm / Air Blast / Pneumatic Pusher / Divided-flow Style
Waterproof Rating	IP66
Power Supply	220V/50HZ or 60HZ Single Phase
Machine Material	304 stainless steel
Interface	Weight transmission to ink-jet printer (requires customer protocol)
Packing Dimension	1900mmL × 550mmW × 1600mmH
Gross Weight	300 KG
