Cylinder Large Capacity Industrial Belt Type Conveyor Checkweigher Pusher Rejector JZ-W300g

Specifications

After-sales Service Provided :

Engineers available to service machinery overseas

Price :

$4,980

waterproof :

IP66

MOQ :

Display Type :

10" color touch screen

Accuracy :

0.1 grams

Rated Load :

300grams

type :

Checkweigher

Place of Origin :

China

conveyor speed :

16~118m/minutes

Power Supply :

220V

Application :

weighing machine

accuracy :

0.001 g, +/-0.3 grams

machine material :

SUS304

Logo/graphic design :

Hot Stamping, 3D Printing, Digital Printing, Transfer Sticker, Screen Printing, Uv Printing, Laser Engraving, Puff Printing, Heat-Transfer Printing, Pad Printing, Thermal Transfer Printing

customized support :

OEM

Description

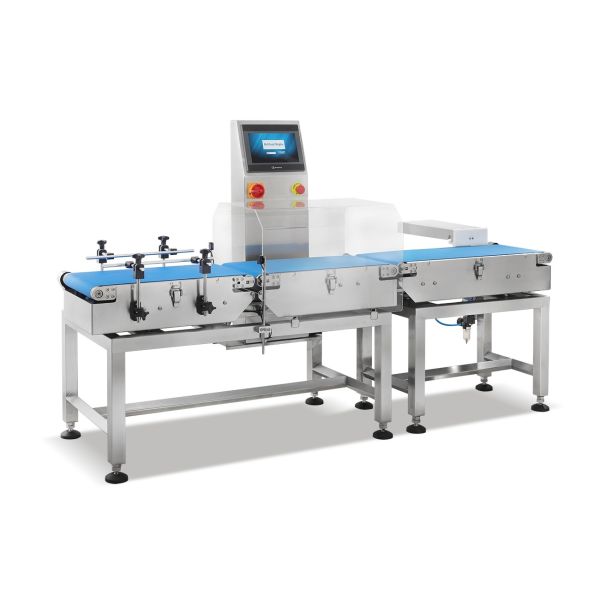

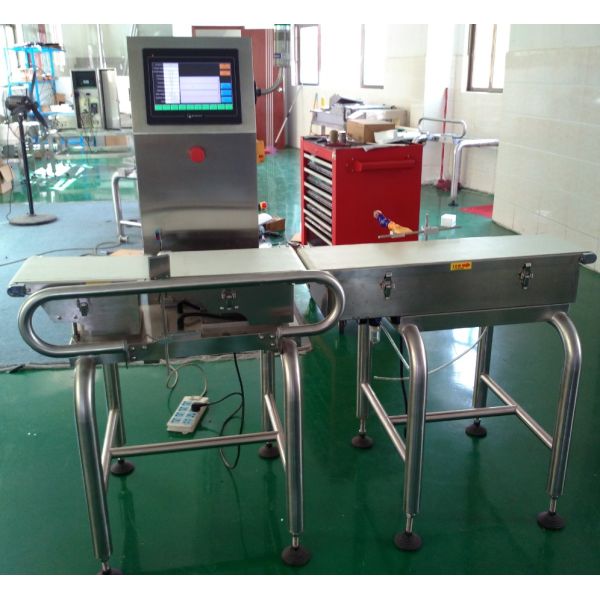

High Quality Large Weighing Capacity High Precision Check Weigher with Pusher Rejector JZ-W300g

Product Overview

The JZ-W300g check weigher is designed to verify whether individual package weights conform to preset specifications, automatically removing overweight and underweight products through various rejection methods. Qualified packages proceed seamlessly to the next equipment in the production line.

Key Features

PLC and 10\" color touch screen with intelligent compact design
Automatic program setting adjustment for enhanced stability and ease of operation
HBM load cell (original from Germany) ensures high accuracy and stability
Solid SUS304 structure provides stable performance and precise weighing
Multiple rejection options: reject arm, air blast, or pneumatic pusher
Tool-free belt disassembly for easy cleaning and maintenance
Emergency switch installation for user-friendly operation
Optional arm device for clear production status visualization
Capable of storing up to 10 different product parameters

Technical Specifications

Model	JZ-W300g
Control System	10\" color touch screen
Weighing Range	3-300 grams
Conveyor Speed	16~118 m/minutes
Maximum Throughput Capacity	330 bags/minutes
Accuracy	±0.3 grams
Product Size	60<L<180mm; 30<W<150mm; 10<H<130mm
Minimum Scale	0.1 grams
Weigh Belt	300L×160W mm
Conveyor Height	750mm±50mm
Auto Reject System	Reject Arm/Air Blast/Pneumatic Pusher/Divided-flow Style
Waterproof Rating	IP66
Power Supply	220V/50HZ or 60HZ Single Phase
Machine Material	304 stainless steel
Interface	Transmit weight to ink-jet printer (requires customer protocol)
Packing Dimension	1500L×400W×1510H mm
Gross Weight	150KG
