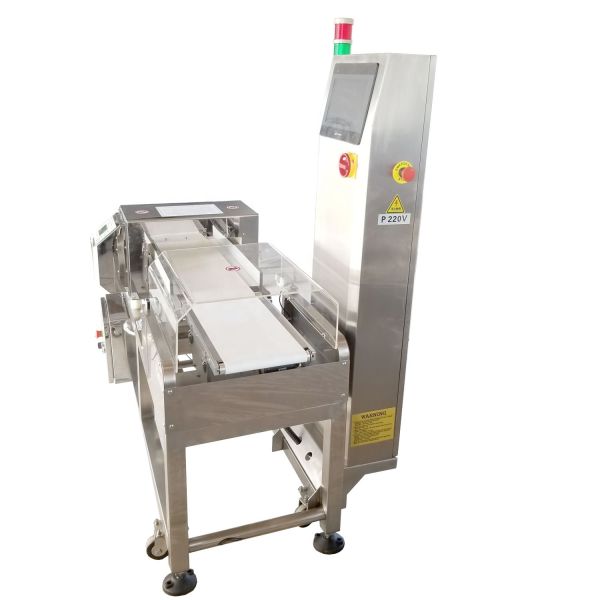

Verified Check Weight Scale Weighing Machine Conveyor Belt Checkweigher Production Line System JZ-W1200g
Verified Check Weight Scale Weighing Machine Conveyor Belt Checkweigher Production Line System JZ-W1200g
Verified Check Weight Scale Weighing Machine Conveyor Belt Checkweigher Production Line System JZ-W1200g
Verified Check Weight Scale Weighing Machine Conveyor Belt Checkweigher Production Line System JZ-W1200g
Verified Check Weight Scale Weighing Machine Conveyor Belt Checkweigher Production Line System JZ-W1200g
Verified Check Weight Scale Weighing Machine Conveyor Belt Checkweigher Production Line System JZ-W1200g
Verified Check Weight Scale Weighing Machine Conveyor Belt Checkweigher Production Line System JZ-W1200g
Verified Check Weight Scale Weighing Machine Conveyor Belt Checkweigher Production Line System JZ-W1200g
Verified Check Weight Scale Weighing Machine Conveyor Belt Checkweigher Production Line System JZ-W1200g
Verified Check Weight Scale Weighing Machine Conveyor Belt Checkweigher Production Line System JZ-W1200g
Verified Check Weight Scale Weighing Machine Conveyor Belt Checkweigher Production Line System JZ-W1200g
Verified Check Weight Scale Weighing Machine Conveyor Belt Checkweigher Production Line System JZ-W1200g
Specifications
customized support :
OEM
conveyor belt size :
400mmL*220mm W
Model Number :
JZ-W1200g
MOQ :
1
Price :
$4,980
waterproof :
IP66
warranty :
1
accuracy :
0.01 g, +/-0.5grams
Brand Name :
JUZHUO
Place of Origin :
Guangdong, China
type :
Checkweigher
Power Supply :
220V
conveyor speed :
13~96m/minutes
Feature :
Support OEM
display type :
10" color touch screen
machine material :
SUS 304
Description
Certified Check Weight Scale Weighing Machine Conveyor Belt Original Factory Checkweigher for Production Line JZ-W1200g
Christmas Products Check Weigher JZ-W1200g
Application

Check weigher is primarily used to verify whether individual package weights conform to preset weight standards. The system automatically removes overweight and underweight products using various rejection devices, while qualified bags proceed to the next equipment.

Key Features
  • PLC and 10\" color touch screen with intelligent compact design construction
  • Automatic program setting adjustment for enhanced stability and ease of operation
  • HBM load cell (original from Germany) ensures high accuracy and stability
  • Solid SUS304 structure provides stable performance and precise weighing
  • Multiple rejection options: reject arm, air blast, or pneumatic pusher
  • Tool-free belt disassembly for easier cleaning
  • Emergency switch installed for user-friendly operation
  • Optional arm device for clear production situation display
  • Capable of recording up to 10 different product parameters
Technical Specifications
Model JZ-W1200g
Control System 10\" color touch screen
Weighing Range 10-1200 grams
Conveyor Speed 13-96 meters/min
Maximum Throughput Capacity 210 bags/min
Accuracy ±0.5 grams
Product Size 60<L<300mm; 30<W<220mm; 10<H<200mm
Minimum Scale 0.1 grams
Weigh Belt 400L × 220W mm
Conveyor Height 750mm ±50mm
Reject System Reject Arm / Air Blast / Pneumatic Pusher / Divided-flow Style
Waterproof Rating IP66
Power Supply 220V/50HZ or 60HZ Single Phase
Machine Material 304 Stainless Steel
Interface Weight transmission to Ink-jet printer (customer provides protocol)
Packing Dimension 1600L × 400W × 1510H mm
Gross Weight 200 KG
Optional Components
  • Network data management software
  • Front feeding FBC feedback control software
  • Printer
  • Lamp
Product Images
\"JZ-W1200g \"JZ-W1200g \"JZ-W1200g \"JZ-W1200g \"JZ-W1200g \"JZ-W1200g \"JZ-W1200g \"JZ-W1200g
