Specifications
conveyor speed :
13~96m/minutes
Model Number :
JZ-W1200g
HBM load cell :
(original from Germany)
conveyor belt size :
400mmL*220mm W
Power Supply :
220V
waterproof :
IP66
Place of Origin :
Guangdong, China
machine material :
SUS 304
MOQ :
1
accuracy :
+/-0.5grams
display type :
10" color touch screen
Description

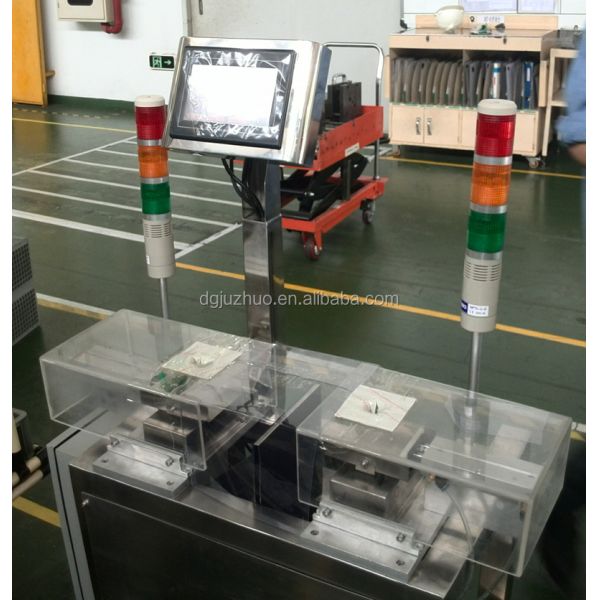

FO Check Weigher JZ-W1200g - Automatic Load Cell Check Weigher
The JZ-W1200g automatic check weigher is a precision industrial weighing system designed for high-speed production lines, ensuring product weight compliance and quality control.
Application
This automatic check weigher verifies whether individual package weights conform to preset specifications. The system automatically removes overweight and underweight products using various rejection devices, allowing only qualified packages to proceed to the next equipment in the production line.
Key Features
  • PLC with 10" color touch screen interface
  • Intelligent compact design construction
  • Automatic program setting adjustment for enhanced stability and ease of operation
  • HBM load cell technology (original from Germany) ensuring high accuracy and stability
  • Solid SUS304 stainless steel structure for stable performance and precise weighing
  • Multiple rejection options: reject arm, air blast, or pneumatic pusher
  • Tool-free belt disassembly for easy cleaning and maintenance
  • Emergency switch installation for user-friendly operation
  • Optional arm device for clear production situation display
  • Capacity to record up to 10 different product parameters
Technical Specifications
Model JZ-W1200g
Control System 10" color touch screen
Weighing Range 10-1200 grams
Conveyor Speed 13-96 meters/min
Maximum Throughput Capacity 210 bags/min
Accuracy ±0.5 grams
Product Size Range 60<L<300mm; 30<W<220mm; 10<H<200mm
Minimum Scale 0.1 grams
Weigh Belt 450L * 220W mm
Conveyor Height 750mm ±50mm
Reject System Reject Arm / Air Blast / Pneumatic Pusher / Divided-flow Style
Waterproof Rating IP66
Power Supply 220V/50HZ or 60HZ Single Phase
Machine Material 304 Stainless Steel
Interface Weight transmission to ink-jet printer (requires customer protocol)
Packing Dimension 1600L * 400W * 1510H mm
Gross Weight 200 KG
Optional Accessories
  • Network data management software
  • Front feeding FBC feedback control software
  • Printer
  • Indicator lamp
